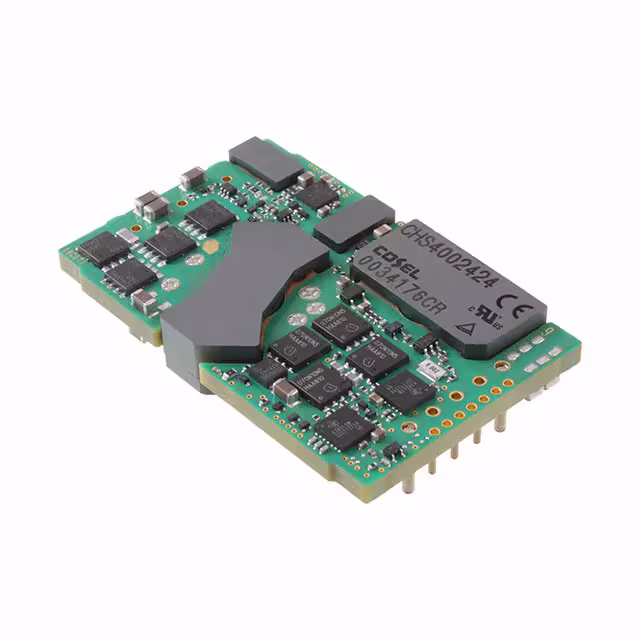

Cosel USA, Inc. CHS4002424-BC
DC DC CONVERTER 24V 348W
Answer first: this page is a purchasing reference for the exact part number CHS4002424-BC from Cosel USA, Inc.. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.
Key Parameters
| Part Number | CHS4002424-BC |
|---|---|
| Manufacturer | Cosel USA, Inc. |
| Category | DC DC Converters |
| package | Quarter Brick |
| series | CHS (400W) |
| packaging | Bulk |
| product status | Active |
| param 1 | Isolated Module |
| param 2 | 1 |
| param 3 | 18V |
| param 4 | 36V |
| param 5 | 24V |
| param 6 | - |
| param 7 | - |
| param 8 | - |
| param 9 | 14.5A |
| param 10 | 348 W |
| param 11 | 2.25 kV |
| param 12 | ITE (Commercial) |
| param 13 | Adjustable Output, Baseplate |
| param 14 | -40°C ~ 85°C (With Derating) |
| param 15 | 94% |
| param 16 | - |
| param 17 | - |
| param 18 | Through Hole |
| param 19 | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) |
| param 20 | Quarter Brick |
| param 21 | - |
| param 22 | CE, cURus, TUV, UKCA |
| param 23 | 60950-1; 62368-1 |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
How to Verify CHS4002424-BC Before Ordering
Datasheet and parameter checks
- Confirm the full manufacturer part number, not only a shortened search keyword.
- Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
- Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.
RFQ fields SENICO needs
- Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
- State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
- Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.
For CHS4002424-BC, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
