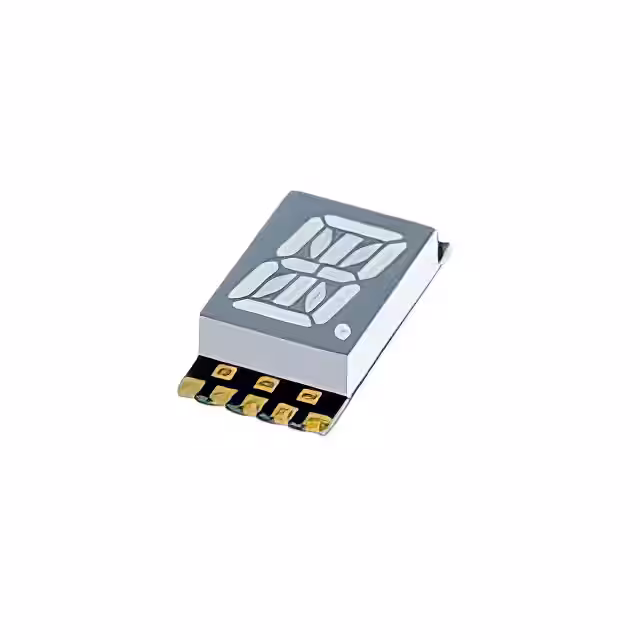

Kingbright ACPSA04-41SGWA
DISPLAY 14SEG 0.4" SGL GRN 16SMD
Answer first: this page is a purchasing reference for the exact part number ACPSA04-41SGWA from Kingbright. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.
Key Parameters
| Part Number | ACPSA04-41SGWA |
|---|---|
| Manufacturer | Kingbright |
| Category | LED Character and Numeric |
| package | 16-SMD, No Lead |
| series | - |
| packaging | Tape & Reel (TR) |
| product status | Active |
| param 1 | - |
| param 2 | 1 |
| param 3 | 0.512" H x 0.366" W x 0.148" D (13.00mm x 9.30mm x 3.75mm) |
| param 4 | 0.40" (10.16mm) |
| param 5 | 14-Segment, Alphanumeric |
| param 6 | Common Anode |
| param 7 | Green |
| param 8 | 2.2V |
| param 9 | 20mA |
| param 10 | 2.9mcd |
| param 11 | 565nm |
| param 12 | 62.5mW |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
How to Verify ACPSA04-41SGWA Before Ordering
Datasheet and parameter checks
- Confirm the full manufacturer part number, not only a shortened search keyword.
- Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
- Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.
RFQ fields SENICO needs
- Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
- State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
- Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.
For ACPSA04-41SGWA, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
