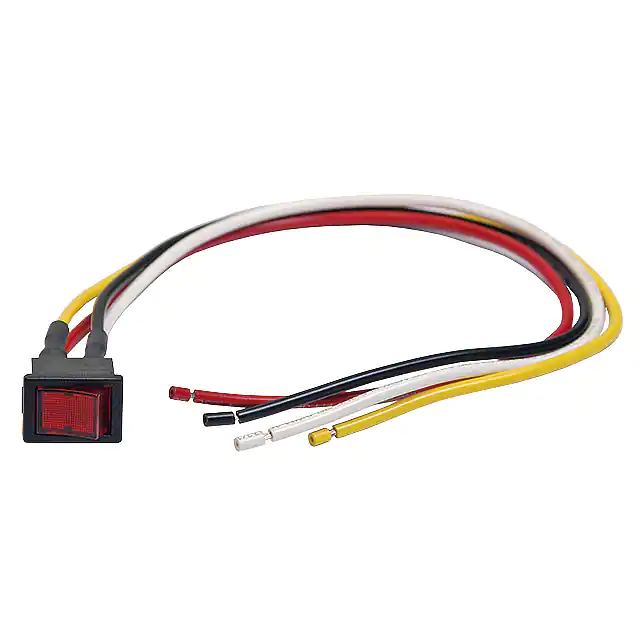

NKK Switches CWSB21CACF
SWITCH ROCKER DPST 9A 125V
Answer first: this page is a purchasing reference for the exact part number CWSB21CACF from NKK Switches. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.
Key Parameters
| Part Number | CWSB21CACF |
|---|---|
| Manufacturer | NKK Switches |
| Category | Rocker Switches |
| series | CWSB |
| packaging | Bulk |
| product status | Active |
| param 1 | Panel Mount, Snap-In |
| param 2 | DPST |
| param 3 | On-Off |
| param 4 | 9A (AC) |
| param 5 | 125 V |
| param 6 | - |
| param 7 | Concave (Curved) - Illuminated |
| param 8 | Red |
| param 9 | No Marking |
| param 10 | Neon, Red |
| param 11 | 125 VAC |
| param 12 | Quick Connect - 0.187" (4.7mm) |
| param 13 | - |
| param 14 | Audible Click |
| param 15 | Rectangular - 19.20mm x 12.90mm |
| param 16 | -20°C ~ 85°C |
| param 17 | cULus |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
How to Verify CWSB21CACF Before Ordering
Datasheet and parameter checks
- Confirm the full manufacturer part number, not only a shortened search keyword.
- Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
- Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.
RFQ fields SENICO needs
- Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
- State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
- Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.
For CWSB21CACF, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
