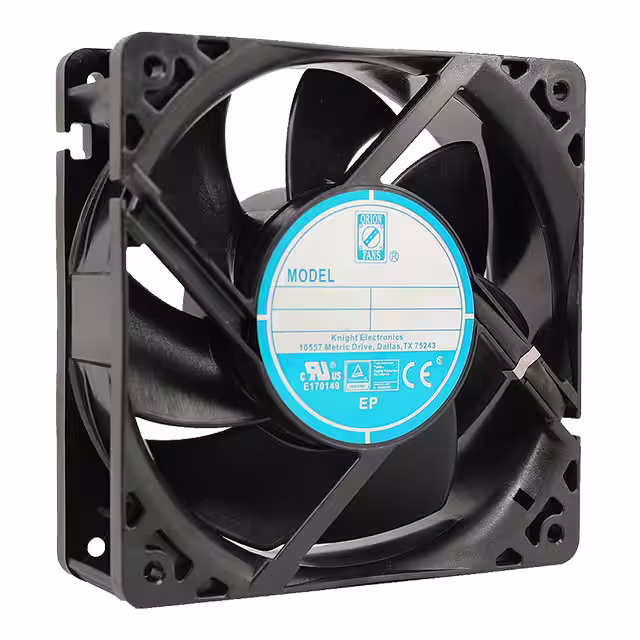

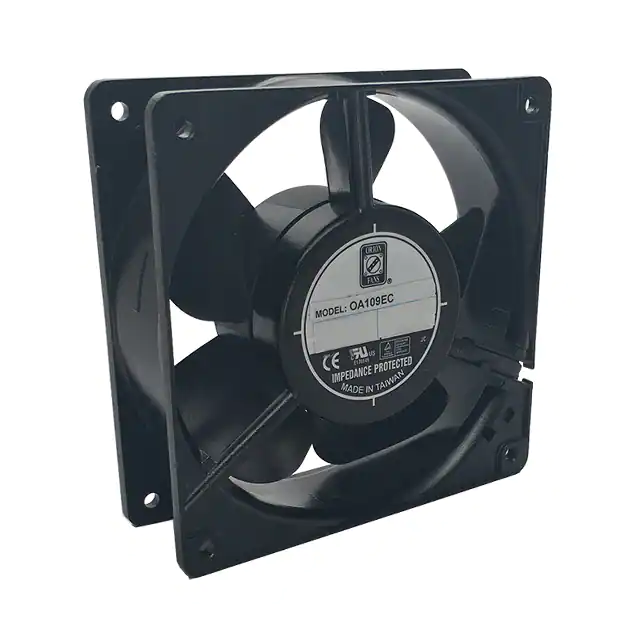

Orion Fans OA109EC-UR-1TBXC
EC FAN 120X38MM 85-265VAC TERM
Answer first: this page is a purchasing reference for the exact part number OA109EC-UR-1TBXC from Orion Fans. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.
Key Parameters
| Part Number | OA109EC-UR-1TBXC |
|---|---|
| Manufacturer | Orion Fans |
| Category | AC Fans |
| series | OA109EC XC |
| packaging | Box |
| product status | Active |
| param 1 | 110/220VAC |
| param 2 | Square - 120mm L x 120mm H |
| param 3 | 38.00mm |
| param 4 | 133.8 CFM (3.79m³/min) |
| param 5 | 0.420 in H2O (104.6 Pa) |
| param 6 | Ball |
| param 7 | Tubeaxial |
| param 8 | Dual Voltage, Electronic Commutation (EC) |
| param 9 | 47.0dB |
| param 10 | 6.50W |
| param 11 | 3000 RPM |
| param 12 | 2 Terminals |
| param 13 | - |
| param 14 | 14 ~ 158°F (-10 ~ 70°C) |
| param 15 | CE, cURus, TUV, UR |
| param 16 | 0.683 lb (309.8 g) |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
How to Verify OA109EC-UR-1TBXC Before Ordering
Datasheet and parameter checks
- Confirm the full manufacturer part number, not only a shortened search keyword.
- Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
- Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.
RFQ fields SENICO needs
- Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
- State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
- Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.
For OA109EC-UR-1TBXC, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
