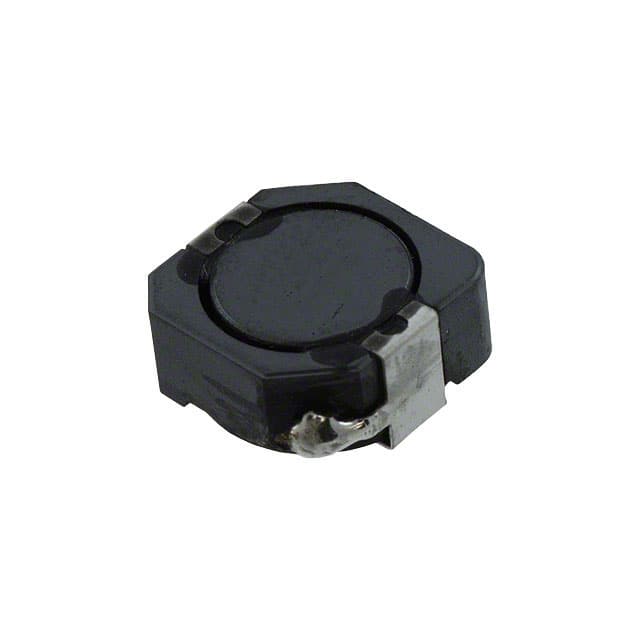

Sumida America Components Inc. CDRH105RNP-100NC
FIXED IND 10UH 4.5A 26 MOHM SMD
Answer first: this page is a purchasing reference for the exact part number CDRH105RNP-100NC from Sumida America Components Inc.. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.
Key Parameters
| Part Number | CDRH105RNP-100NC |
|---|---|
| Manufacturer | Sumida America Components Inc. |
| Category | Fixed Inductors |
| package | Nonstandard |
| series | CDRH105R |
| packaging | Tape & Reel (TR) |
| product status | Active |
| param 1 | - |
| param 2 | Ferrite |
| param 3 | 10 µH |
| param 4 | ±30% |
| param 5 | 4.5 A |
| param 6 | 4.45A |
| param 7 | Shielded |
| param 8 | 26mOhm Max |
| param 9 | - |
| param 10 | - |
| param 11 | - |
| param 12 | -40°C ~ 100°C |
| param 13 | 100 kHz |
| param 14 | - |
| param 15 | Surface Mount |
| param 16 | - |
| param 17 | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| param 18 | 0.201" (5.10mm) |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
How to Verify CDRH105RNP-100NC Before Ordering
Datasheet and parameter checks
- Confirm the full manufacturer part number, not only a shortened search keyword.
- Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
- Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.
RFQ fields SENICO needs
- Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
- State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
- Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.
For CDRH105RNP-100NC, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
