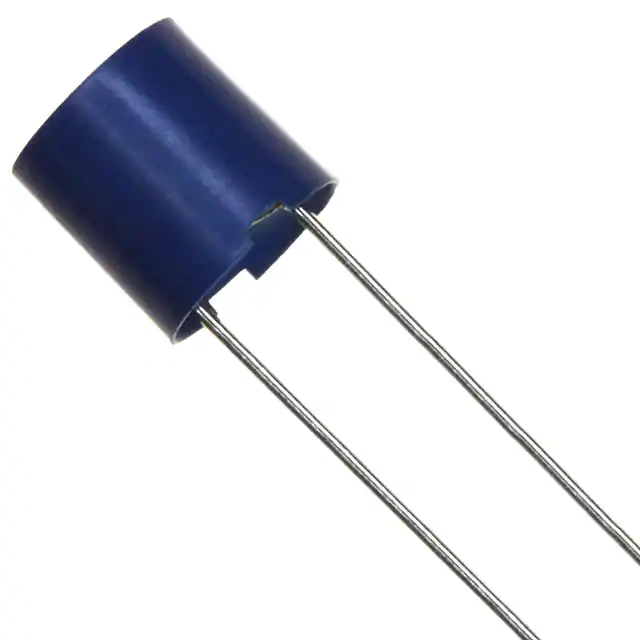

TDK Corporation TSL0809RA-331KR41-PF
FIXED IND 330UH 410MA TH
Answer first: this page is a purchasing reference for the exact part number TSL0809RA-331KR41-PF from TDK Corporation. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.
Key Parameters
| Part Number | TSL0809RA-331KR41-PF |
|---|---|
| Manufacturer | TDK Corporation |
| Category | Fixed Inductors |
| package | Radial, Vertical Cylinder |
| series | TSL |
| packaging | Tape & Box (TB) |
| product status | Obsolete |
| param 1 | - |
| param 2 | - |
| param 3 | 330 µH |
| param 4 | ±10% |
| param 5 | 410 mA |
| param 6 | - |
| param 7 | Unshielded |
| param 8 | - |
| param 9 | - |
| param 10 | - |
| param 11 | - |
| param 12 | - |
| param 13 | 1 kHz |
| param 14 | - |
| param 15 | Through Hole |
| param 16 | - |
| param 17 | 0.335" Dia (8.50mm) |
| param 18 | 0.346" (8.80mm) |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
How to Verify TSL0809RA-331KR41-PF Before Ordering
Datasheet and parameter checks
- Confirm the full manufacturer part number, not only a shortened search keyword.
- Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
- Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.
RFQ fields SENICO needs
- Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
- State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
- Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.
For TSL0809RA-331KR41-PF, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
