Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LCW100US15AC/DC CONVERTER 15V 105W XP Power |
1 |
|
![]() Datasheet |
![]() |
LCW100 (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 105W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |

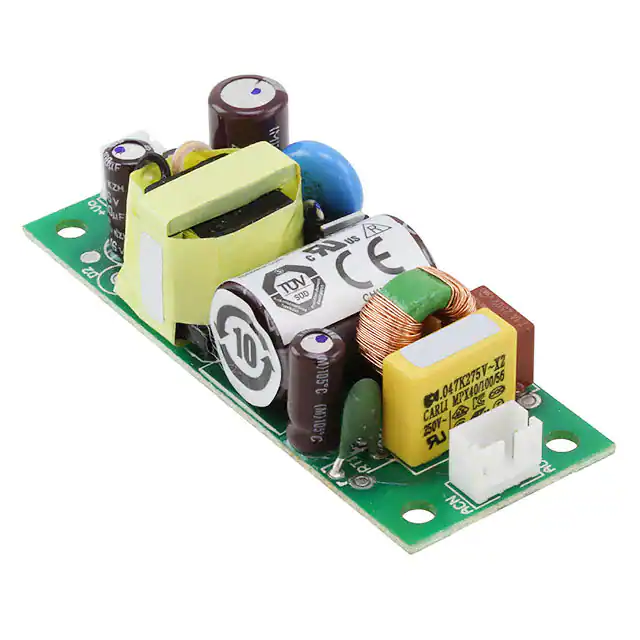

ECL05US03-TAC/DC CONVERTER 3.3V 5W XP Power |
2,978 |
|
![]() Datasheet |
![]() |
ECL (5W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
![]() |
ECL05US12-TAC/DC CONVERTER 12V 5W XP Power |
4,906 |
|
![]() Datasheet |
![]() |
ECL (5W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 410 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
![]() |
ECL05US15-TAC/DC CONVERTER 15V 5W XP Power |
4,597 |
|
![]() Datasheet |
![]() |
ECL (5W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 330 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
![]() |
ECL05US48-TAC/DC CONVERTER 48V 5W XP Power |
3,267 |
|
![]() Datasheet |
![]() |
ECL (5W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 100 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
![]() |

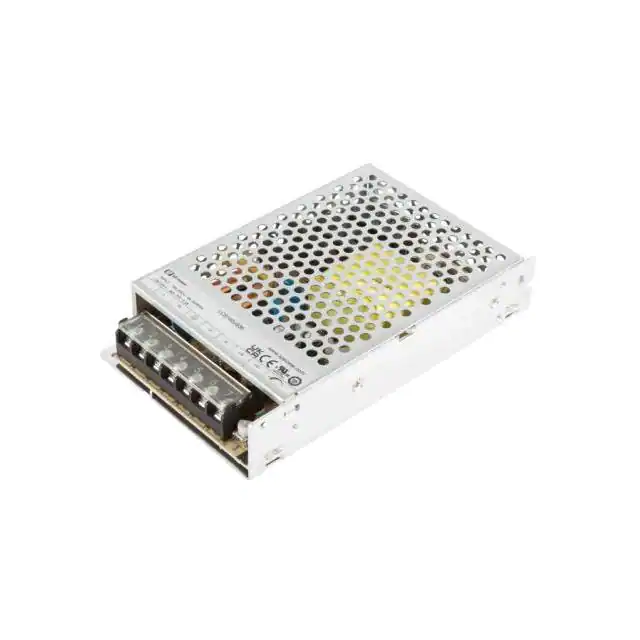

LCS150US24AC/DC CONVERTER 24V 156W XP Power |
3,427 |
|
![]() Datasheet |
![]() |
LCS150 (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
ECF40US36AC/DC CONVERTER 36V 40W XP Power |
1 |
|
![]() Datasheet |
![]() |
ECF40 (40W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 1.11 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 1.11" H (76.2mm x 38.1mm x 28.2mm) |
![]() |
ECF40US18AC/DC CONVERTER 18V 40W XP Power |
4,539 |
|
![]() Datasheet |
![]() |
ECF40 (40W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 18V | - | - | - | - | - | 2.23 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 1.11" H (76.2mm x 38.1mm x 28.2mm) |
![]() |
ECF40US24AC/DC CONVERTER 24V 40W XP Power |
3,268 |
|
![]() Datasheet |
![]() |
ECF40 (40W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 1.11" H (76.2mm x 38.1mm x 28.2mm) |
![]() |
VCS100US15AC/DC CONVERTER 15V 100W XP Power |
3,554 |
|
![]() Datasheet |
![]() |
VCS (100W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.87" W x 1.65" H (159.0mm x 98.2mm x 42.0mm) |
