Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
CFM100M075AC/DC CONVERTER 7.5V 101W Cincon Electronics Co. LTD |
8 |
|
![]() Datasheet |
![]() |
CFM100M (100W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 7.5V | - | - | - | - | - | 13.4 A | - | - | - | - | - | 101W | ITE (Commercial), Medical | 5.656 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) |
![]() |

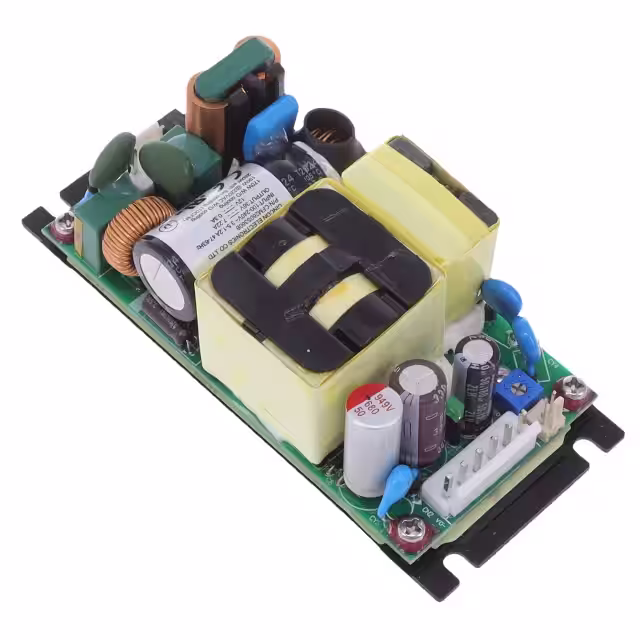

CFM260S360BAC/DC CONVERTER 36V 260W Cincon Electronics Co. LTD |
18 |
|
![]() Datasheet |
![]() |
CFM260S (260W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 7.22 A | - | - | - | - | - | 260W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 4.60" L x 2.00" W x 1.52" H (116.8mm x 50.8mm x 38.6mm) |
![]() |
CFM202S480BAC/DC CONVERTER 48V 150W Cincon Electronics Co. LTD |
3,866 |
|
![]() Datasheet |
![]() |
CFM202S (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 150W (200W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 80°C (With Derating) | Baseplate, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.31" H (101.6mm x 50.8mm x 33.3mm) |
|
CFM200M240AC/DC CONVERTER 24V 200W Cincon Electronics Co. LTD |
18 |
|
![]() Datasheet |
![]() |
CFM200M (200W) | Tray | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.48" H (101.6mm x 50.8mm x 37.6mm) |
![]() |

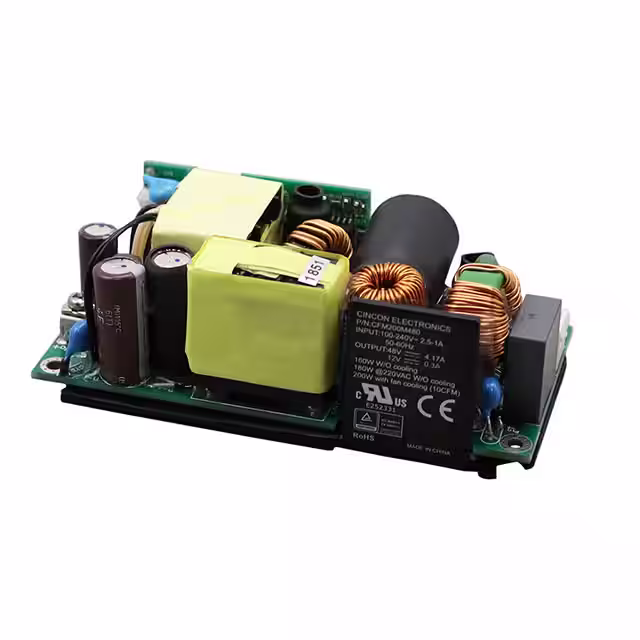

CFM200M480AC/DC CONVERTER 48V 200W Cincon Electronics Co. LTD |
16 |
|
![]() Datasheet |
![]() |
CFM200M (200W) | Tray | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.48" H (101.6mm x 50.8mm x 37.6mm) |
![]() |

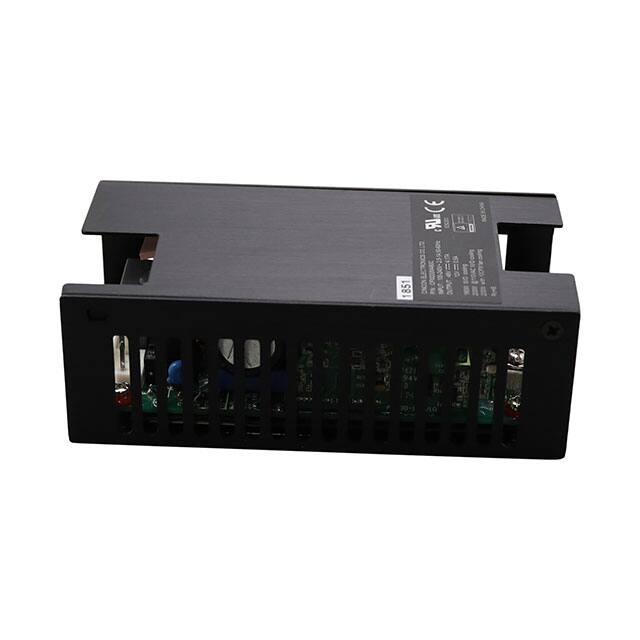

CFM200M480CAC/DC CONVERTER 48V 200W Cincon Electronics Co. LTD |
5 |
|
![]() Datasheet |
![]() |
CFM200M (200W) | Tray | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.59" H (117.0mm x 62.0mm x 40.5mm) |
![]() |
LFM300M120CAC-DC SWITCHING POWER MODULE,90- Cincon Electronics Co. LTD |
3,321 |
|
- |
![]() |
LFM300M (300W) | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 160W (300W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.09" L x 2.28" W x 1.00" H (103.9mm x 57.9mm x 25.4mm) |
![]() |
LFM300M480CAC-DC SWITCHING POWER MODULE,90- Cincon Electronics Co. LTD |
4,241 |
|
- |
![]() |
LFM300M (300W) | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 160W (300W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.09" L x 2.28" W x 1.00" H (103.9mm x 57.9mm x 25.4mm) |
![]() |
LFM300M280CAC-DC SWITCHING POWER MODULE,90- Cincon Electronics Co. LTD |
3,241 |
|
- |
![]() |
LFM300M (300W) | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 10.7 A | - | - | - | - | - | 160W (300W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.09" L x 2.28" W x 1.00" H (103.9mm x 57.9mm x 25.4mm) |
![]() |
CFM361S480AC/DC CONVERTER 48V 355W Cincon Electronics Co. LTD |
17 |
|
- |
![]() |
CFM361S (360W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 7.4 A | - | - | - | - | - | 355W | ITE (Commercial) | 4.242 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm) |
