Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
CFM60M120-PMEDICAL OPEN FRAME AC-DC CFM60M1 |
2,328 |
|
- |
![]() |
CFM60M (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | Household Appliances | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) |
![]() |
CFM60M240-CAMEDICAL OPEN FRAME AC-DC CFM60M2 |
3,712 |
|
- |
![]() |
CFM60M (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | Household Appliances | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 1.97" W x 1.58" H (117.0mm x 50.0mm x 40.0mm) |
![]() |
CFM60M150-CAMEDICAL OPEN FRAME AC-DC CFM60M1 |
3,577 |
|
- |
![]() |
CFM60M (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | Household Appliances | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 1.97" W x 1.58" H (117.0mm x 50.0mm x 40.0mm) |
![]() |
CFM60M240-PMEDICAL OPEN FRAME AC-DC CFM60M2 |
4,750 |
|
- |
![]() |
CFM60M (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | Household Appliances | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) |
![]() |
RSP-100-48AC/DC CONVERTER 48V 101W |
2,020 |
|
![]() Datasheet |
![]() |
RSP-100 (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
![]() |
LS100-24/BMLAC/DC CONVERTER 24V 100W |
2,848 |
|
![]() Datasheet |
![]() |
LS (100W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.30" L x 3.80" W x 1.50" H (160.0mm x 96.5mm x 38.1mm) |
![]() |
LS100-24/LAC/DC CONVERTER 24V 100W |
3,180 |
|
![]() Datasheet |
![]() |
LS (100W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.30" L x 3.80" W x 1.50" H (160.0mm x 96.5mm x 38.1mm) |
![]() |
UMA30F-36AC/DC PS (OPEN FRAME) |
2,354 |
|
- |
![]() |
UMA (30W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 850 mA | - | - | - | - | - | 31W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) |
![]() |
UMA30F-12AC/DC PS (OPEN FRAME) |
3,231 |
|
- |
![]() |
UMA (30W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) |
![]() |
DG040-JAC/DC CONVERTER 36V 40W |
4,091 |
|
![]() Datasheet |
![]() |
Tri-Mag, DG040 (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.11 A | - | - | - | - | - | 40W | ITE (Commercial) | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.91" H (76.2mm x 50.8mm x 23.1mm) |
![]() |
AOJS25-48AC/DC CONVERTER 48V 27W |
2 |
|
![]() Datasheet |
![]() |
AOJS25 (25W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 570 mA | - | - | - | - | - | 27W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.12" H (79.0mm x 51.0mm x 28.5mm) |
![]() |
AOJS25-15AC/DC CONVERTER 15V 26W |
2 |
|
![]() Datasheet |
![]() |
AOJS25 (25W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC, 240 ~ 370 VDC | 15V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 26W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.12" H (79.0mm x 51.0mm x 28.5mm) |
![]() |
AOJS25-12AC/DC CONVERTER 12V 25W |
1 |
|
![]() Datasheet |
![]() |
AOJS25 (25W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC, 240 ~ 370 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.12" H (79.0mm x 51.0mm x 28.5mm) |
![]() |

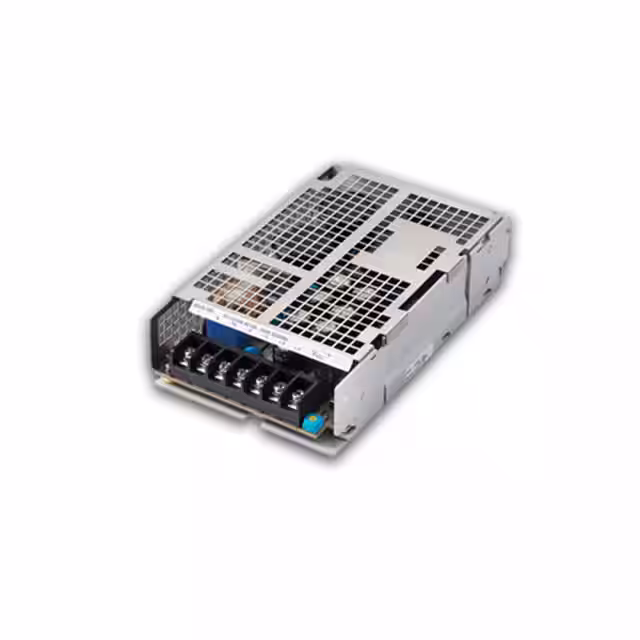

AOJS25-3.3AC/DC CONVERTER 3.3V 20W |
1 |
|
![]() Datasheet |
![]() |
AOJS25 (25W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC, 240 ~ 370 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.12" H (79.0mm x 51.0mm x 28.5mm) |
![]() |
LFA15F-12-CAC/DC CONVERTER 12V |
2,765 |
|
![]() Datasheet |
![]() |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) |
![]() |
LFA15F-12-CJ1AC/DC CONVERTER 12V |
2,551 |
|
![]() Datasheet |
![]() |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) |
![]() |
LFA15F-15-CAC/DC CONVERTER 15V |
2,459 |
|
![]() Datasheet |
![]() |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) |
![]() |
LFA15F-15-CJ1AC/DC CONVERTER 15V |
2,640 |
|
![]() Datasheet |
![]() |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) |
![]() |
LFA15F-24-CAC/DC CONVERTER 24V |
3,823 |
|
![]() Datasheet |
![]() |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) |
![]() |
LFA15F-24-CJ1AC/DC CONVERTER 24V |
3,198 |
|
![]() Datasheet |
![]() |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) |
