Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
ELXY500ELL102ML30SCAP ALUM 1000UF 20% 50V RADIAL Chemi-Con |
138,973 |
|
![]() Datasheet |
![]() |
LXY | Bulk | Active | 1000 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.29 A @ 120 Hz | 2.15 A @ 100 kHz | 30 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
![]() |
EGXF500ELL751MM15SCAP ALUM 750UF 20% 50V RADIAL TH Chemi-Con |
111,091 |
|
![]() Datasheet |
![]() |
GXF | Bulk | Active | 750 µF | ±20% | 50 V | 85mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 822 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
![]() |

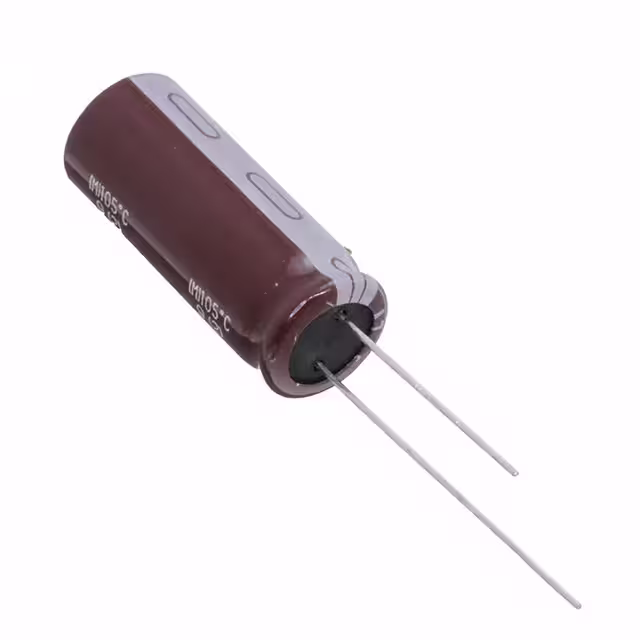

EKXL451ELL470MK30SCAP ALUM 47UF 20% 450V RADIAL TH Chemi-Con |
177,337 |
|
![]() Datasheet |
![]() |
KXL | Bulk | Active | 47 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 1.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
![]() |
EKXG251ELL680ML20SCAP ALUM 68UF 20% 250V RADIAL TH Chemi-Con |
135,036 |
|
![]() Datasheet |
![]() |
KXG | Bulk | Last Time Buy | 68 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
![]() |
EKY-101ELL331ML25SCAP ALUM 330UF 20% 100V RADIAL Chemi-Con |
169,659 |
|
![]() Datasheet |
![]() |
KY | Bulk | Active | 330 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.7 A @ 100 kHz | 38 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
![]() |
EGXF401ELL300MJ40SCAP ALUM 30UF 20% 400V RADIAL TH Chemi-Con |
103,435 |
|
![]() Datasheet |
![]() |
GXF | Bulk | Active | 30 µF | ±20% | 400 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 282 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.634" (41.50mm) | - | Through Hole | |
![]() |
EKYC350ELL332ML25SCAP ALUM 3300UF 20% 35V RADIAL Chemi-Con |
130,690 |
|
![]() Datasheet |
![]() |
KYC | Bulk | Active | 3300 µF | ±20% | 35 V | 31mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.43 A @ 120 Hz | 3.24 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
![]() |
EGXF630ELL681MK30SCAP ALUM 680UF 20% 63V RADIAL TH Chemi-Con |
125,923 |
|
![]() Datasheet |
![]() |
GXF | Bulk | Active | 680 µF | ±20% | 63 V | 52mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.446 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
![]() |
EKXJ251ELL101ML20SCAP ALUM 100UF 20% 250V RADIAL Chemi-Con |
164,205 |
|
![]() Datasheet |
![]() |
KXJ | Bulk | Active | 100 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 635 mA @ 120 Hz | 1.42875 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
![]() |
EKZN101ELL471MK40SCAP ALUM 100V POLAR Chemi-Con |
136,466 |
|
![]() Datasheet |
![]() |
KZN | Bulk | Active | 470 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.575 A @ 120 Hz | 3.15 A @ 100 kHz | 26 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole |
