Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL81V101MCN1CAP ALUM Nichicon |
126,986 |
|
Datasheet |
 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

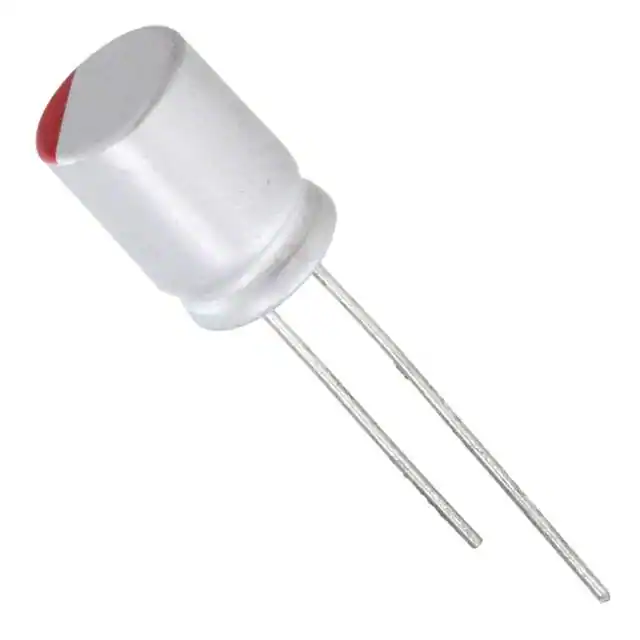

RHT1D151MDN1PHCAP ALUM POLY 150UF 20% 20V TH Nichicon |
183,175 |
|
Datasheet |
|
FPCAP, RHT | Tape & Box (TB) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 435 mA @ 120 Hz | 4.35 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
RPA1C181MCN1GSCAP ALUM POLY 180UF 20% 16V SMD Nichicon |
147,295 |
|
Datasheet |
|
FPCAP, RPA | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
RHT1C471MDN1CAP ALUM HYBRID 68UF 20% 63V SMD Nichicon |
104,936 |
|
Datasheet |
|
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RNE1C821MDN1CAP ALUM POLY 820UF 20% 16V TH Nichicon |
107,046 |
|
Datasheet |
|
FPCAP, RNE | Bulk | Active | Polymer | 820 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
PCL1A151MCL1GSCAP ALUM POLY 150UF 20% 10V SMD Nichicon |
187,898 |
|
Datasheet |
|
PCL | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 144 mA @ 120 Hz | 2.88 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.291" (7.40mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RHT1C271MDN1PHCAP ALUM POLY 270UF 20% 16V TH Nichicon |
129,071 |
|
Datasheet |
|
FPCAP, RHT | Tape & Box (TB) | Active | Polymer | 270 µF | ±20% | 16 V | 16mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 525 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
RSL1C150MCNCAP ALUM POLY 680UF 20% 2.5V SMD Nichicon |
147,586 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCL1C121MCL1GSCAP ALUM POLY 120UF 20% 16V SMD Nichicon |
164,177 |
|
Datasheet |
|
PCL | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.291" (7.40mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RFS1C101MCN1GSCAP ALUM POLY 100UF 20% 16V SMD Nichicon |
163,568 |
|
Datasheet |
|
FPCAP, RFA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
