Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCR2A180MCL1GSCAP ALUM POLY 18UF 20% 100V SMD Nichicon |
129,919 |
|
Datasheet |
 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 18 µF | ±20% | 100 V | 42mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCH1V331MCL1GSCAP ALUM POLY 330UF 20% 35V SMD Nichicon |
102,152 |
|
Datasheet |
|
PCH | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PLE0E561MCO1TDCAP ALUM POLY 560UF 20% 2.5V TH Nichicon |
141,434 |
|
Datasheet |
|
PLE | Cut Tape (CT) | Obsolete | Polymer | 560 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PCH1D681MCL1GSCAP ALUM POLY 680UF 20% 20V SMD Nichicon |
132,127 |
|
Datasheet |
|
PCH | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 20 V | 14mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1K680MCS1GSCAP ALUM POLY 68UF 20% 80V SMD Nichicon |
139,036 |
|
Datasheet |
|
PCR | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 80 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCH1E471MCL1GSCAP ALUM POLY 470UF 20% 25V SMD Nichicon |
160,727 |
|
Datasheet |
|
PCH | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 25 V | 15mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

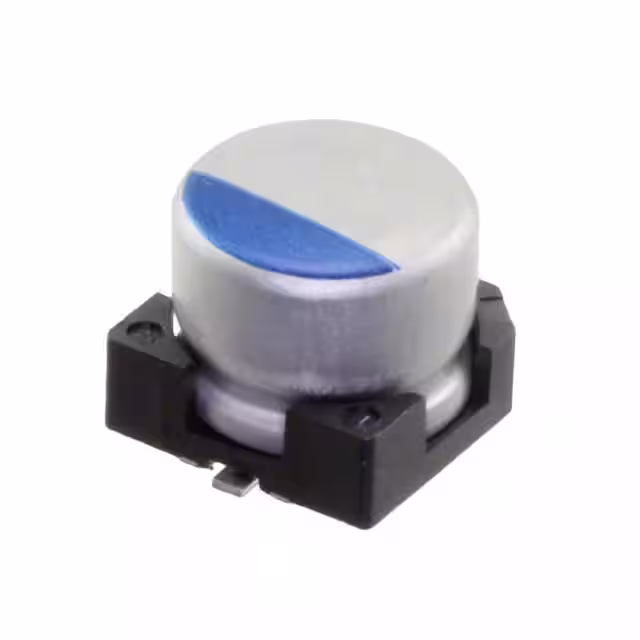

PCX1D560MCS1GSCAP ALUM POLY 56UF 20% 20V SMD Nichicon |
186,137 |
|
Datasheet |
|
PCX | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 20 V | 50mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

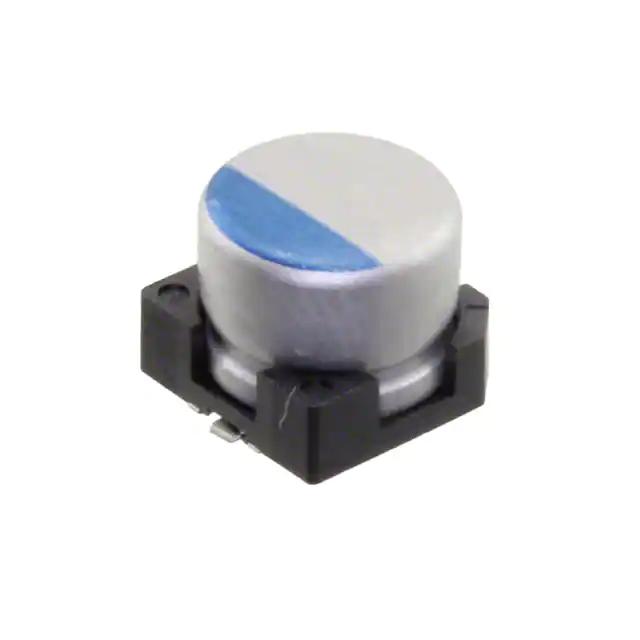

PCX1C820MCS1GSCAP ALUM POLY 82UF 20% 16V SMD Nichicon |
125,476 |
|
Datasheet |
|
PCX | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 45mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLE0J681MDO1TDCAP ALUM POLY 680UF 20% 6.3V TH Nichicon |
175,992 |
|
Datasheet |
|
PLE | Cut Tape (CT) | Obsolete | Polymer | 680 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PLV1C221MCL1TDCAP ALUM POLY 220UF 20% 16V TH Nichicon |
135,338 |
|
Datasheet |
|
PLV | Cut Tape (CT) | Obsolete | Polymer | 220 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
