Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLF1C331MDO1CAP ALUM POLY 330UF 20% 16V TH Nichicon |
176,107 |
|
Datasheet |
 |
PLF | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RHA0E102MCN1GSCAP ALUM POLY 1000UF 20% 2.5V Nichicon |
125,888 |
|
Datasheet |
|
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLS0E821MCO8TDCAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
112,151 |
|
Datasheet |
|
PLS | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|

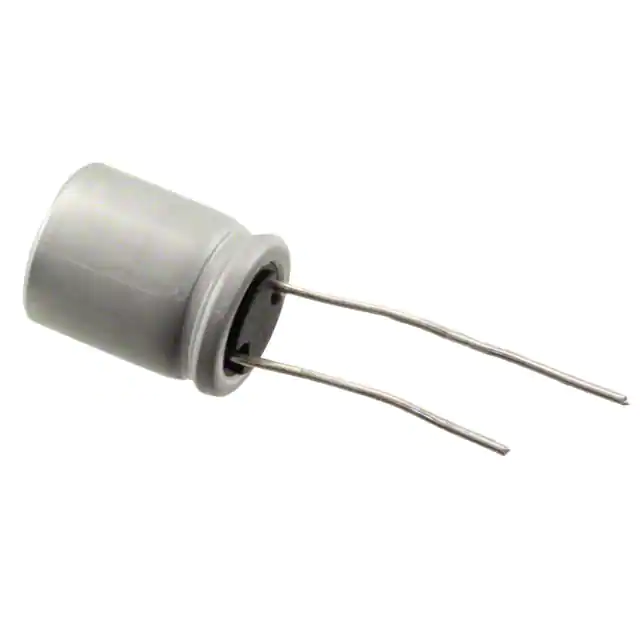

PLF1A471MDO1TDCAP ALUM POLY 470UF 20% 10V TH Nichicon |
183,093 |
|
Datasheet |
|
PLF | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PLF1C471MDO1TDCAP ALUM POLY 470UF 20% 16V TH Nichicon |
179,009 |
|
Datasheet |
|
PLF | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

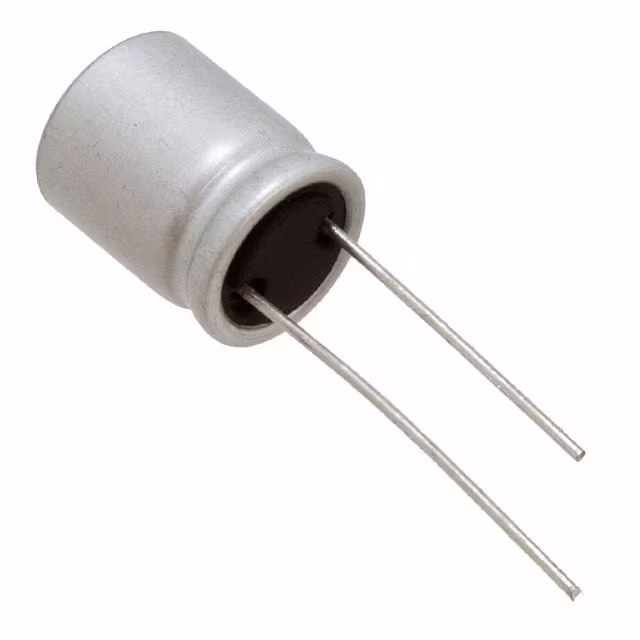

RR71C271MDN1PHCAP ALUM POLY 270UF 20% 16V TH Nichicon |
121,664 |
|
Datasheet |
|
FPCAP, RR7 | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
GYC1E221MCW1GSCAP ALUMHYB 220UF 20% 25V SMD Nichicon |
132,949 |
|
Datasheet |
|
GYC | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 435 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNS1C151MDN1PHCAP ALUM POLY 150UF 20% 16V TH Nichicon |
199,756 |
|
Datasheet |
|
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
GYB1H330MCW1GSCAP ALUM HYBRID 33UF 20% 50V SMD Nichicon |
199,928 |
|
Datasheet |
|
GYB | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 240 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.323" (8.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNU1C471MDN1CAP ALUM POLY 470UF 20% 16V TH Nichicon |
100,369 |
|
Datasheet |
|
FPCAP, RNU | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
