Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNL1C182MDS1PHCAP ALUM POLY 1800UF 20% 16V TH Nichicon |
181,565 |
|
Datasheet |
 |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 1800 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
|

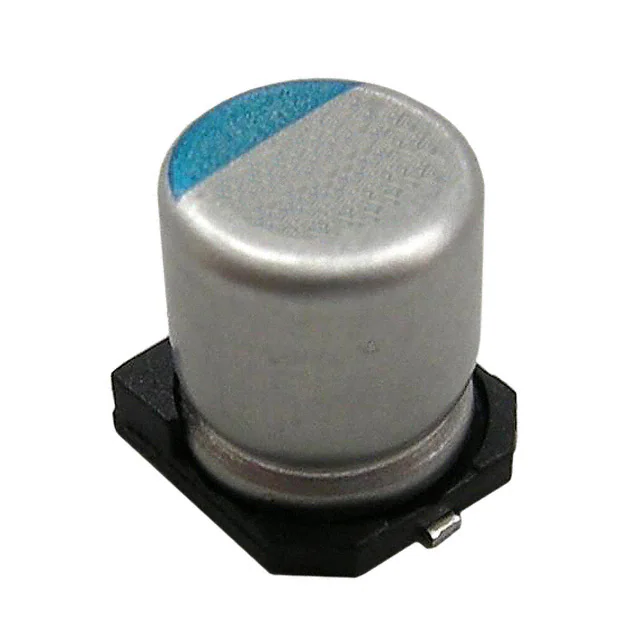

PCZ1V101MCL6GSCAP ALUM POLY 100UF 20% 35V SMD Nichicon |
148,573 |
|
Datasheet |
|
PCZ | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLX1V101MDL1TDCAP ALUM POLY 100UF 20% 35V TH Nichicon |
198,173 |
|
Datasheet |
|
PLX | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 35 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PLX1H470MDL1TDCAP ALUM POLY 47UF 20% 50V TH Nichicon |
120,576 |
|
Datasheet |
|
PLX | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCV1J270MCL2GSCAP ALUM POLY 27UF 20% 63V SMD Nichicon |
184,651 |
|
Datasheet |
|
PCV | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 63 V | 38mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RPS1H470MCN1GSCAP ALUM POLY 47UF 20% 50V SMD Nichicon |
178,564 |
|
Datasheet |
|
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNU1E331MDN1PHCAP ALUM POLY 330UF 20% 25V TH Nichicon |
108,601 |
|
Datasheet |
|
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PCR1E271MCL1GSCAP ALUM POLY 270UF 20% 25V SMD Nichicon |
190,723 |
|
Datasheet |
|
PCR | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 25 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1D271MCL2GSCAP ALUM POLY 270UF 20% 20V SMD Nichicon |
166,882 |
|
Datasheet |
|
PCV | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 20 V | 21mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1K120MCL1GSCAP ALUM POLY 12UF 20% 80V SMD Nichicon |
154,254 |
|
Datasheet |
|
PCV | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 80 V | 41mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
