Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCJ0J331MCL1GSCAP ALUM POLY 330UF 20% 6.3V SMD Nichicon |
113,431 |
|
Datasheet |
 |
PCJ | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCJ0J821MCL4GSCAP ALUM POLY 820UF 20% 6.3V SMD Nichicon |
123,742 |
|
Datasheet |
|
PCJ | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.15 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ1C271MCL1GSCAP ALUM POLY 270UF 20% 16V SMD Nichicon |
136,768 |
|
Datasheet |
|
PCJ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.07 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCF1C330MCL1GSCAP ALUM POLY 33UF 20% 16V SMD Nichicon |
134,180 |
|
Datasheet |
|
PCF | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 16 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

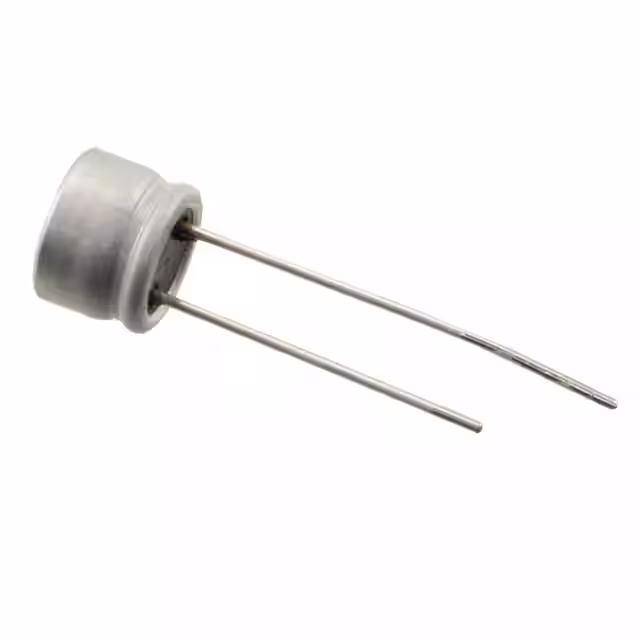

PLF1E100MCL2TPCAP ALUM POLY 10UF 20% 25V TH Nichicon |
142,284 |
|
Datasheet |
|
PLF | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
PCV1C560MCL1GSCAP ALUM POLY 56UF 20% 16V SMD Nichicon |
109,326 |
|
Datasheet |
|
PCV | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 16 V | 50mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PLS0J331MDL4TDCAP ALUM POLY 330UF 20% 6.3V TH Nichicon |
195,282 |
|
Datasheet |
|
PLS | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
PLG0G182MDO1TDCAP ALUM POLY 1800UF 20% 4V TH Nichicon |
132,312 |
|
Datasheet |
|
PLG | Cut Tape (CT) | Active | Polymer | 1800 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCX1E220MCL1GSCAP ALUM POLY 22UF 20% 25V SMD Nichicon |
169,998 |
|
Datasheet |
|
PCX | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 25 V | 65mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PLG0J122MDO1CAP ALUM POLY 1200UF 20% 6.3V TH Nichicon |
180,791 |
|
Datasheet |
|
PLG | Bulk | Active | Polymer | 1200 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
