Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNS1C470MDS1JXCAP ALUM POLY 47UF 20% 16V TH Nichicon |
179,696 |
|
Datasheet |
 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 16 V | 42mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
RHA0J471MCN1GSCAP ALUM POLY 470UF 20% 6.3V SMD Nichicon |
171,306 |
|
Datasheet |
|
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RSL0E331MCN1GBCAP ALUM POLY 330UF 20% 2.5V SMD Nichicon |
165,905 |
|
Datasheet |
|
FPCAP, RSL | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 350 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.165" (4.20mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RS80J561MDNASQJTCAP ALUM POLY 560UF 20% 6.3V TH Nichicon |
137,669 |
|
Datasheet |
|
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
RL81C271MDN1KXCAP ALUM POLY 270UF 20% 16V TH Nichicon |
119,623 |
|
Datasheet |
|
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
RS61E330MCN1JTCAP ALUM POLY 33UF 20% 25V TH Nichicon |
112,440 |
|
Datasheet |
|
FPCAP, RS6 | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|

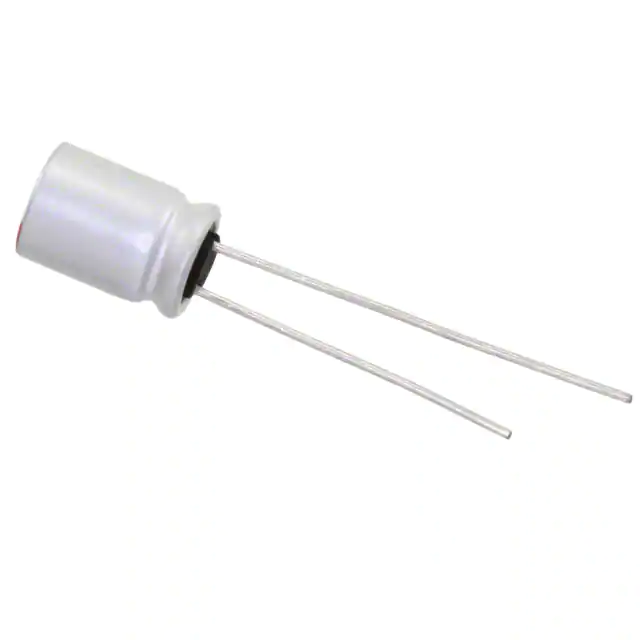

RNS1C470MDS1CAP ALUM POLY 47UF 20% 16V TH Nichicon |
186,780 |
|
Datasheet |
|
FPCAP, RNS | Bulk | Active | Polymer | 47 µF | ±20% | 16 V | 42mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
PCS0J470MCL1GSCAP ALUM POLY 47UF 20% 6.3V SMD Nichicon |
127,887 |
|
Datasheet |
|
PCS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
PCS0J101MCL1GSCAP ALUM POLY 100UF 20% 6.3V SMD Nichicon |
106,501 |
|
Datasheet |
|
PCS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
PCS0J101MCL9GSCAP ALUM POLY 100UF 20% 6.3V SMD Nichicon |
102,298 |
|
Datasheet |
|
PCS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
