Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A750MV227M1HAAE020CAP ALUM POLY 220UF 20% 50V TH |
159,679 |
|
Datasheet |
 |
A750 | Bulk | Active | Polymer | 220 µF | ±20% | 50 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
|
RPA0608221M016BCAP ALUM POLY 220UF 20% 16V TH |
192,420 |
|
Datasheet |
|
RPA | Bulk | Active | Polymer | 220 µF | ±20% | 16 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole |
|

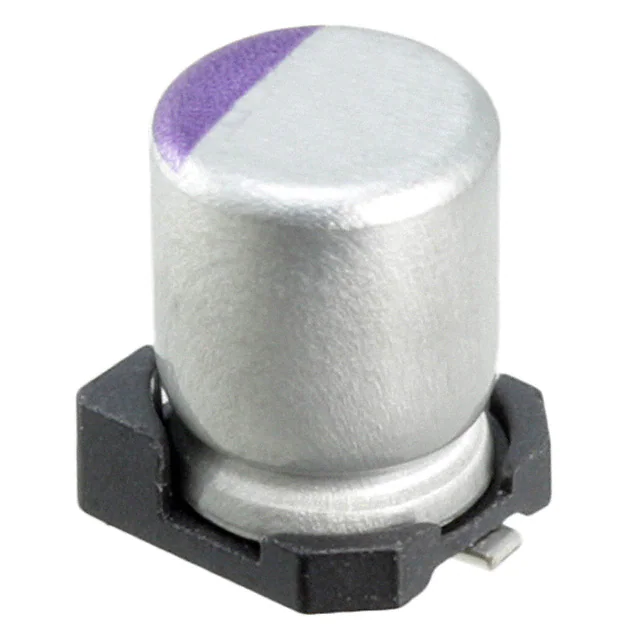

16SVP3R3MCAP ALUM POLY 3.3UF 20% 16V SMD |
183,065 |
|
Datasheet |
|
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 3.3 µF | ±20% | 16 V | 260mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 33 mA @ 120 Hz | 660 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|

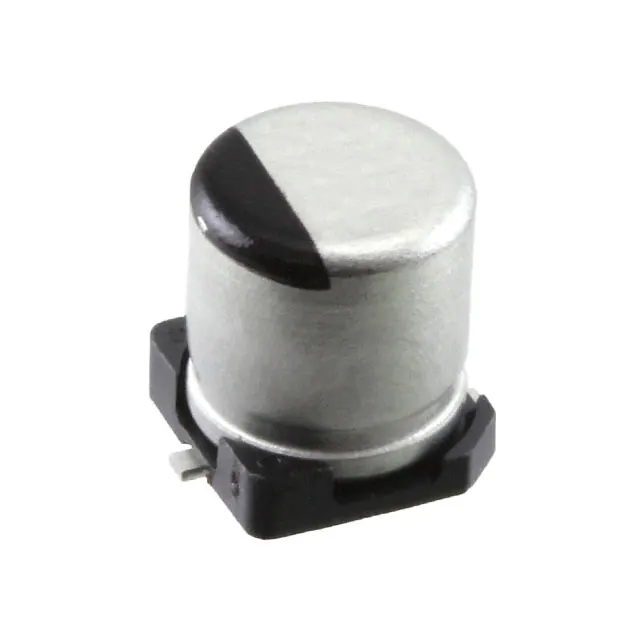

EEH-ZK1E470RCAP ALUM HYBRID 47UF 20% 25V SMD |
138,062 |
|
Datasheet |
|
ZK | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 25 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 127.5 mA @ 100 Hz | 850 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RFS1C390MCN1GSCAP ALUM POLY 39UF 20% 16V SMD |
141,116 |
|
Datasheet |
|
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 207 mA @ 120 Hz | 2.07 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A765MU158M1ALAE014CAP ALUM POLY 1500UF 20% 10V SMD |
191,395 |
|
Datasheet |
|
A765 | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 10 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 5.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A750MS567M1EAAE015CAP ALUM POLY 560UF 20% 25V TH |
133,626 |
|
Datasheet |
|
A750 | Bulk | Active | Polymer | 560 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 245 mA @ 120 Hz | 4.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A755KS107M1EAAE025CAP ALUM POLY 100UF 20% 25V TH |
193,948 |
|
Datasheet |
|
A755 | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
10SVP330MXCAP ALUM POLY 330UF 20% 10V SMD |
168,857 |
|
Datasheet |
|
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-SX0D331XRCAP ALUM POLY 330UF 20% 2V SMD |
162,442 |
|
Datasheet |
|
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 330 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount |
|
16SEPC100MW+SCAP ALUM POLY 100UF 20% 16V TH |
105,638 |
|
Datasheet |
|
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 234 mA @ 120 Hz | 4.68 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
10SVP56MCAP ALUM POLY 56UF 20% 10V SMD |
140,868 |
|
Datasheet |
|
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
AHA0608470M035RCAP ALUM HYBRID 47UF 20% 35V SMD |
187,427 |
|
Datasheet |
|
AHA | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

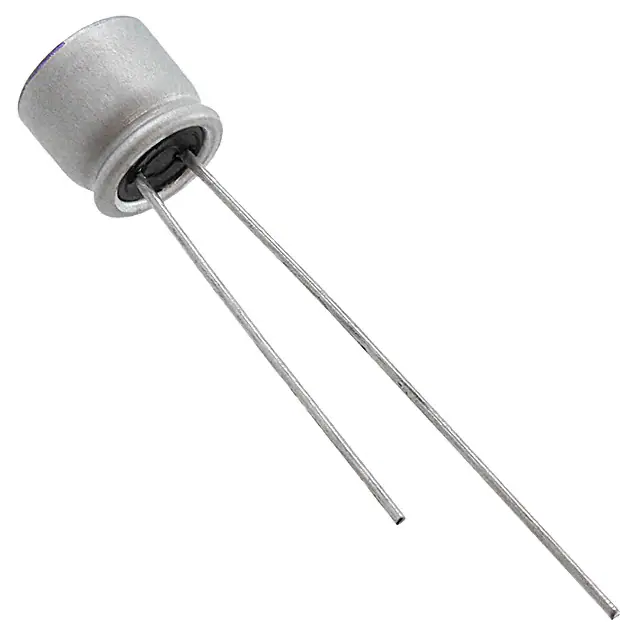

35SEPF22MCAP ALUM POLY 22UF 20% 35V TH |
114,526 |
|
Datasheet |
|
OS-CON™, SEPF | Bulk | Active | Polymer | 22 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
A759MS158M0JAAE013CAP ALUM POLY 1500UF 20% 6.3V TH |
110,350 |
|
Datasheet |
|
A759 | Bulk | Active | Polymer | 1500 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 354.65 mA @ 120 Hz | 7.093 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RSS0J101MCN1GSCAP ALUM POLY 100UF 20% 6.3V SMD |
108,176 |
|
Datasheet |
|
FPCAP, RSS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RNS1D680MDN1KXCAP ALUM POLY 68UF 20% 20V TH |
109,829 |
|
Datasheet |
|
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 20 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
RFS0J101MCN1GSCAP ALUM POLY 100UF 20% 6.3V SMD |
124,618 |
|
Datasheet |
|
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

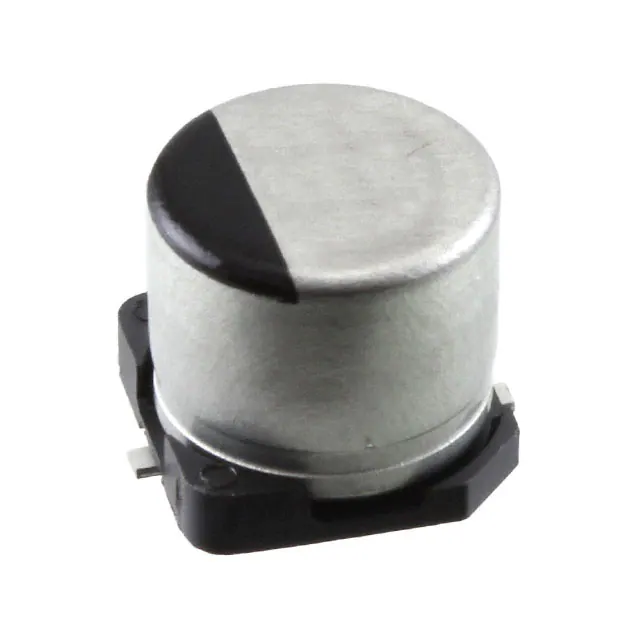

EEH-ZK1E151XPCAP ALUMHYB 150UF 20% 25V SMD |
193,605 |
|
Datasheet |
|
ZK | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A759MS108M1AAAE012CAP ALUM POLY 1000UF 20% 10V TH |
194,168 |
|
Datasheet |
|
A759 | Bulk | Active | Polymer | 1000 µF | ±20% | 10 V | 12mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 354.65 mA @ 120 Hz | 7.093 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
