Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL218697502E3CAP ALUM POLY 100UF 20% 16V SMD Vishay Beyschlag/Draloric/BC Components |
164,024 |
|
Datasheet |
 |
186 CPNT | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount |
|

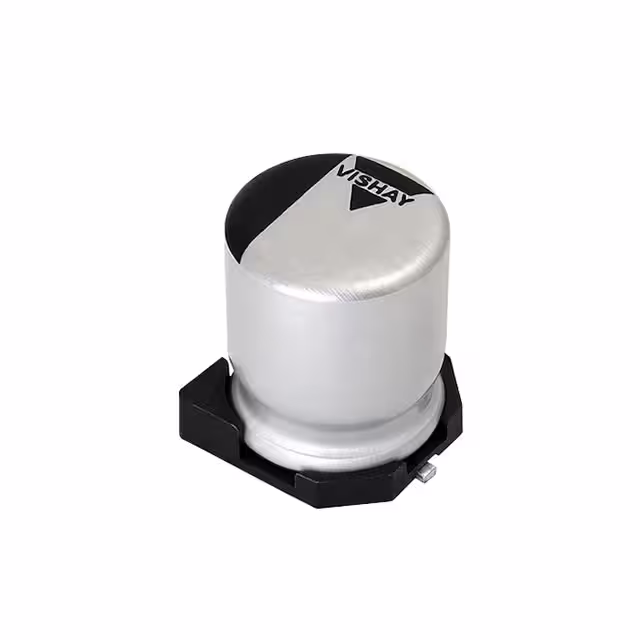

MAL218597613E3CAP ALUM POLY 220UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components |
115,441 |
|
- |
|
185 CPNZ | Box | Active | Polymer | 220 µF | ±20% | 25 V | 23mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210 mA @ 120 Hz | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
|
MAL218697512E3CAP ALUM POLY 560UF 20% 16V SMD Vishay Beyschlag/Draloric/BC Components |
176,838 |
|
Datasheet |
|
186 CPNT | Box | Active | Polymer | 560 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
MAL218597556E3CAP ALUM POLY 330UF 20% 20V SMD Vishay Beyschlag/Draloric/BC Components |
162,241 |
|
- |
|
185 CPNZ | Box | Active | Polymer | 330 µF | ±20% | 20 V | 23mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210 mA @ 120 Hz | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
MAL218197002E3CAP ALUM POLY 82UF 20% 35V SMD Vishay Beyschlag/Draloric/BC Components |
180,695 |
|
Datasheet |
|
181 CPL | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | 29 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
MAL218197202E3CAP ALUM POLY 270UF 20% 20V SMD Vishay Beyschlag/Draloric/BC Components |
116,747 |
|
Datasheet |
|
181 CPL | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 20 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | 21 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
MAL218197602E3CAP ALUM POLY 150UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components |
141,654 |
|
Datasheet |
|
181 CPL | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | 28 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
MAL218497564E3CAP ALUM POLY 390UF 20% 20V SMD Vishay Beyschlag/Draloric/BC Components |
165,188 |
|
Datasheet |
|
184 CPNS | Box | Active | Polymer | 390 µF | ±20% | 20 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 4.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
MAL218697609E3CAP ALUM POLY 180UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components |
113,644 |
|
- |
|
186 CPNT | Box | Active | Polymer | 180 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
|
MAL218497611E3CAP ALUM POLY 220UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components |
174,660 |
|
- |
|
184 CPNS | Box | Active | Polymer | 220 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
