Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZA1E331VCAP ALUMHYB 330UF 20% 25V SMD |
179,138 |
|
Datasheet |
 |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 375 mA @ 100 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZC1J560PCAP ALUM HYBRID 56UF 20% 63V SMD |
115,586 |
|
Datasheet |
|
ZC | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-CX0J151RCAP ALUM POLY 150UF 20% 6.3V SMD |
140,518 |
|
Datasheet |
|
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-SR0J680RCAP ALUM POLY 68UF 20% 6.3V SMD |
155,831 |
|
Datasheet |
|
SP-Cap, SR | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.039" (1.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-CS1E100RCAP ALUM POLY 10UF 20% 25V SMD |
157,603 |
|
Datasheet |
|
SP-Cap CS | Tape & Reel (TR) | Not For New Designs | Polymer | 10 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | - | Surface Mount |
|
|
EEH-ZC1K330PCAP ALUM HYBRID 33UF 20% 80V SMD |
120,521 |
|
Datasheet |
|
ZC | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 80 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 136 mA @ 100 Hz | 1.36 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
GYA1E221MCW1GSCAP ALUMHYB 220UF 20% 25V SMD |
129,796 |
|
Datasheet |
|
GYA | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXE160ARA820MF80GCAP ALUM POLY 82UF 20% 16V SMD |
187,419 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RSHVK101M4EFK5002ECAP ALUMHYB 100UF 20% 63V SMD |
147,705 |
|
Datasheet |
|
HVK | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 26mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
PCV1J8R2MCL2GSCAP ALUM POLY 8.2UF 20% 63V SMD |
176,267 |
|
Datasheet |
|
PCV | Tape & Reel (TR) | Active | Polymer | 8.2 µF | ±20% | 63 V | 56mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SVPC120MCAP ALUM POLY 120UF 20% 16V SMD |
138,219 |
|
Datasheet |
|
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSG160ELL182MJ20SCAP ALUM POLY 1800UF 20% 16V TH |
162,295 |
|
Datasheet |
|
NPCAP™-PSG | Bulk | Active | Polymer | 1800 µF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
|
APXE100ARA151MF80GCAP ALUM POLY 150UF 20% 10V SMD |
196,820 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.88 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXJ350ARA331MJA0GCAP ALUMHYB 330UF 20% 35V SMD |
197,213 |
|
Datasheet |
|
HXJ | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHSC630ELL101MJC5SCAP ALUM HYBRID 100UF 20% 63V TH |
195,605 |
|
Datasheet |
|
HSC | Bulk | Active | Hybrid | 100 µF | ±20% | 63 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

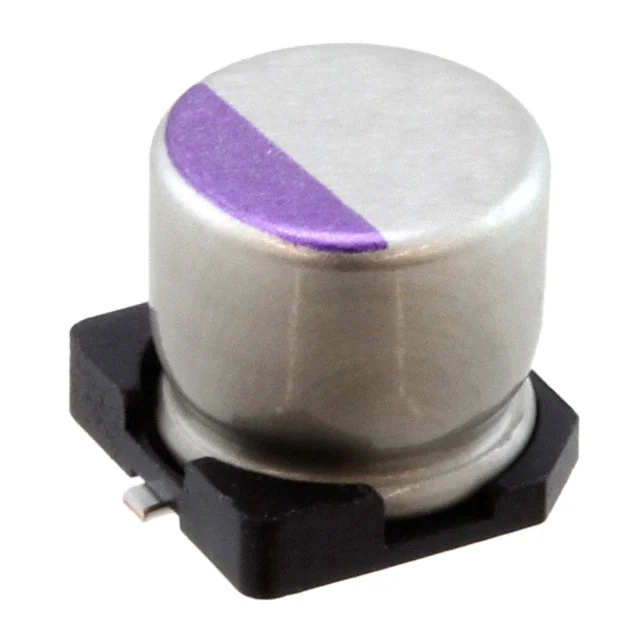

10SVPE220MCAP ALUM POLY 220UF 20% 10V SMD |
186,385 |
|
Datasheet |
|
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A781MS107M1JLAS030CAP ALUMHYB 100UF 20% 63V SMD |
145,108 |
|
Datasheet |
|
A781 | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 1.408 A @ 100 Hz | 6.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEF-CX0J181RCAP ALUM POLY 180UF 20% 6.3V SMD |
166,388 |
|
Datasheet |
|
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCV1V220MCL2GSCAP ALUM POLY 22UF 20% 35V SMD |
196,617 |
|
Datasheet |
|
PCV | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 50mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
ECG-CY0G471RCAP ALUM POLY 470UF 20% 4V SMD |
183,916 |
|
Datasheet |
|
SP-Cap CY | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
