Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV1J100MCL1GSCAP ALUM POLY 10UF 20% 63V SMD |
152,348 |
|
Datasheet |
 |
PCV | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 63 V | 75mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZC1E560PCAP ALUM HYBRID 56UF 20% 25V SMD |
178,729 |
|
Datasheet |
|
ZC | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNL1C222MDS1PHCAP ALUM POLY 2200UF 20% 16V TH |
136,597 |
|
Datasheet |
|
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 2200 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
PCJ0J152MCL1GSCAP ALUM POLY 1500UF 20% 6.3V |
146,799 |
|
Datasheet |
|
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.025 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A700V477M002ATE4R5CAP ALUM POLY 470UF 20% 2V SMD |
124,205 |
|
Datasheet |
|
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 7.75 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A759MS685M2EAAE482CAP ALUM POLY 6.8UF 20% 250V TH |
180,630 |
|
Datasheet |
|
A759 | Bulk | Active | Polymer | 6.8 µF | ±20% | 250 V | 482mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 39 mA @ 120 Hz | 780 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
50SVPK68MCAP ALUM POLY 68UF 20% 50V SMD |
130,531 |
|
Datasheet |
|
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 50 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCG0J102MCL1GSCAP ALUM POLY 1000UF 20% 6.3V |
110,766 |
|
Datasheet |
|
PCG | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A767KN566M1HLAE029CAP ALUM POLY 56UF 20% 50V SMD |
162,238 |
|
Datasheet |
|
A767 | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 50 V | 29mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG1C471MDO1TDCAP ALUM POLY 470UF 20% 16V TH |
178,893 |
|
Datasheet |
|
PLG | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCK0J821MCO1GSCAP ALUM POLY 820UF 20% 6.3V SMD |
107,747 |
|
Datasheet |
|
PCK | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
-Series-(THT-Tape-And-Box)-Photo-G12.jpg)
|

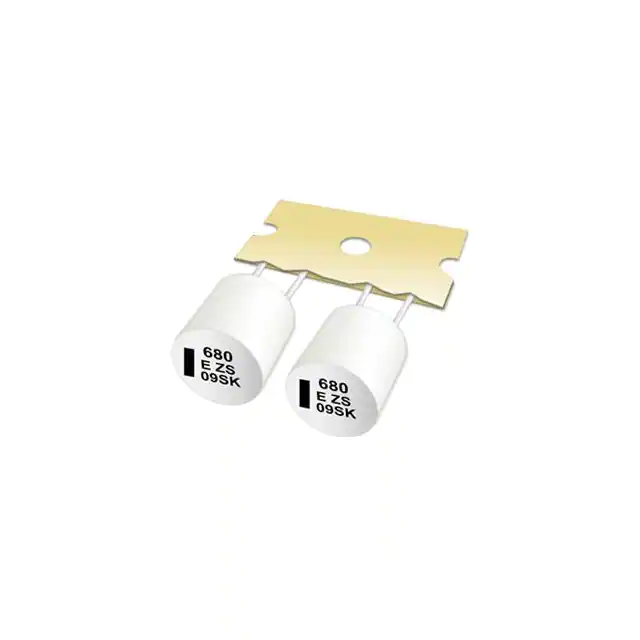

EEH-AZSV471UBCAP ALUM HYBRID 470UF 20% 35V TH |
102,061 |
|
Datasheet |
|
ZSU-A | Cut Tape (CT) | Active | Hybrid | 470 µF | ±20% | 35 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 700 mA @ 120 Hz | 3.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Through Hole |
|

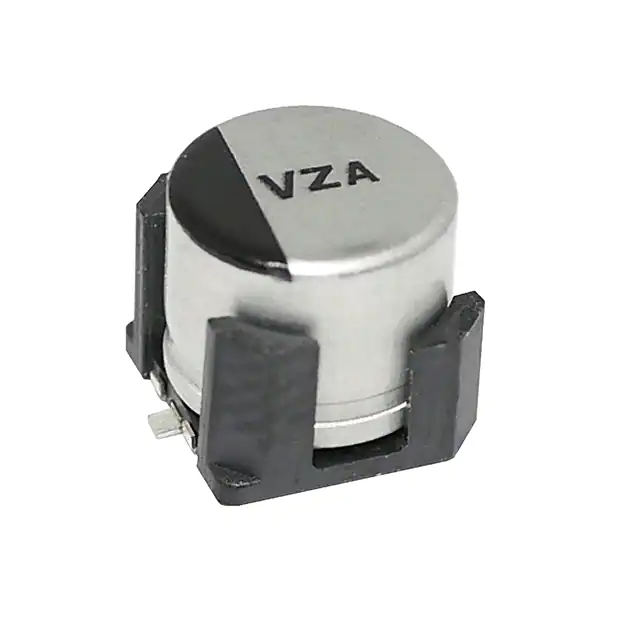

EEH-ZA1K220VCAP ALUM HYBRID 22UF 20% 80V SMD |
187,063 |
|
Datasheet |
|
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 155 mA @ 100 Hz | 1.55 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZA1H470VCAP ALUM HYBRID 47UF 20% 50V SMD |
129,128 |
|
Datasheet |
|
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
63PZJ100M10X11CAP ALUM HYBRID 100UF 20% 63V TH |
184,455 |
|
Datasheet |
|
PZJ | Bulk | Active | Hybrid | 100 µF | ±20% | 63 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole |
|
HHXJ630ARA101MJA0GCAP ALUMHYB 100UF 20% 63V SMD |
134,889 |
|
Datasheet |
|
HXJ | Bulk | Active | Hybrid | 100 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
4SEP220MCAP ALUM POLY 220UF 20% 4V TH |
121,083 |
|
Datasheet |
|
OS-CON™, SEP | Bulk | Active | Polymer | 220 µF | ±20% | 4 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128 mA @ 120 Hz | 2.56 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
B40900B7277M000CAP ALUMHYB 270UF 20% 35V SMD |
100,746 |
|
Datasheet |
|
B40900 | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
B40900B5337M000CAP ALUMHYB 330UF 20% 25V SMD |
140,481 |
|
Datasheet |
|
B40900 | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1C101MCL1GSCAP ALUM POLY 100UF 20% 16V SMD |
100,168 |
|
Datasheet |
|
PCV | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 36mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
