Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHXF630ARA560MJA0GCAP ALUM HYBRID 56UF 20% 63V SMD Chemi-Con |
170,247 |
|
Datasheet |
 |
HXF | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 22mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 400 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXF250ARA271MJA0GCAP ALUMHYB 270UF 20% 25V SMD Chemi-Con |
171,125 |
|
Datasheet |
|
HXF | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 25 V | 16mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXF500ARA121MJA0GCAP ALUMHYB 120UF 20% 50V SMD Chemi-Con |
150,764 |
|
Datasheet |
|
HXF | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 50 V | 20mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 430 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

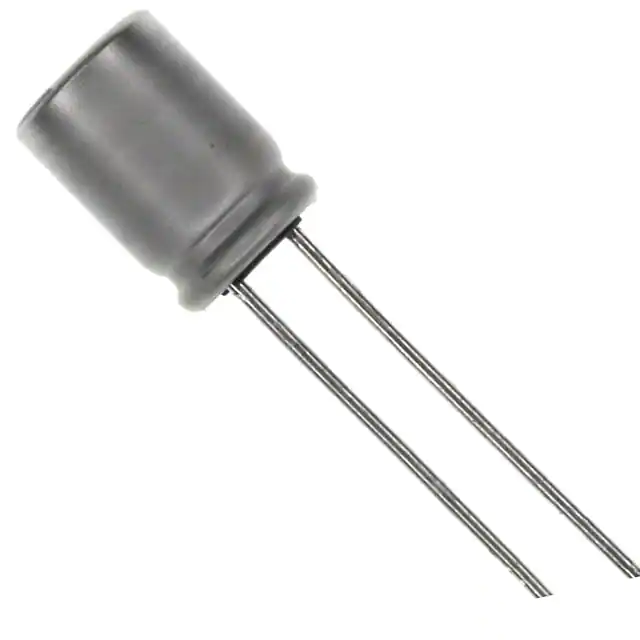

APSC100ELL391MHB5SCAP ALUM POLY 390UF 20% 10V TH Chemi-Con |
191,694 |
|
Datasheet |
|
NPCAP™-PSC | Bulk | Active | Polymer | 390 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APSG160ELL821MJB5SCAP ALUM POLY 820UF 20% 16V TH Chemi-Con |
139,211 |
|
Datasheet |
|
NPCAP™-PSG | Bulk | Active | Polymer | 820 µF | ±20% | 16 V | 12mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
APXE2R5ARA181ME61GCAP ALUM POLY 180UF 20% 2.5V SMD Chemi-Con |
158,982 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2.5 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.67 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APSG250ELL561MJB5SCAP ALUM POLY 560UF 20% 25V TH Chemi-Con |
166,242 |
|
Datasheet |
|
NPCAP™-PSG | Bulk | Active | Polymer | 560 µF | ±20% | 25 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APSG250ELL681MJB5SCAP ALUM POLY 680UF 20% 25V TH Chemi-Con |
180,325 |
|
Datasheet |
|
NPCAP™-PSG | Bulk | Active | Polymer | 680 µF | ±20% | 25 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APSF160ELL271MHB5SCAP ALUM POLY 270UF 20% 16V TH Chemi-Con |
167,103 |
|
Datasheet |
|
NPCAP™-PSF | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 11mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 508 mA @ 120 Hz | 5.08 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
HHXE250ARA471MJC5GCAP ALUMHYB 470UF 20% 25V SMD Chemi-Con |
113,421 |
|
Datasheet |
|
HXE | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 526.5 mA @ 120 Hz | 4.05 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
