Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

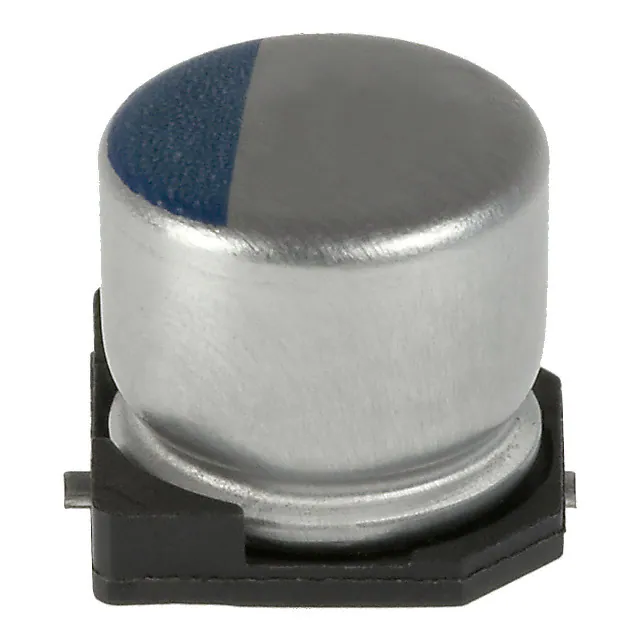

APXC4R0ARA221MF60GCAP ALUM POLY 220UF 20% 4V SMD Chemi-Con |
104,157 |
|
Datasheet |
 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 21mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.64 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXE2R5ARA222MJA0GCAP ALUM POLY 2200UF 20% 2.5V Chemi-Con |
165,441 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 2200 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXC6R3ARA181MF60GCAP ALUM POLY 180UF 20% 6.3V SMD Chemi-Con |
108,926 |
|
Datasheet |
|
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 6.3 V | 22mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.58 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXG160ARA561MHA0GCAP ALUM POLY 560UF 20% 16V SMD Chemi-Con |
109,355 |
|
Datasheet |
|
NPCAP™-PXG | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 16 V | 18mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXG250ARA121MHA0GCAP ALUM POLY 120UF 20% 25V SMD Chemi-Con |
118,652 |
|
Datasheet |
|
NPCAP™-PXG | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 25 V | 22mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

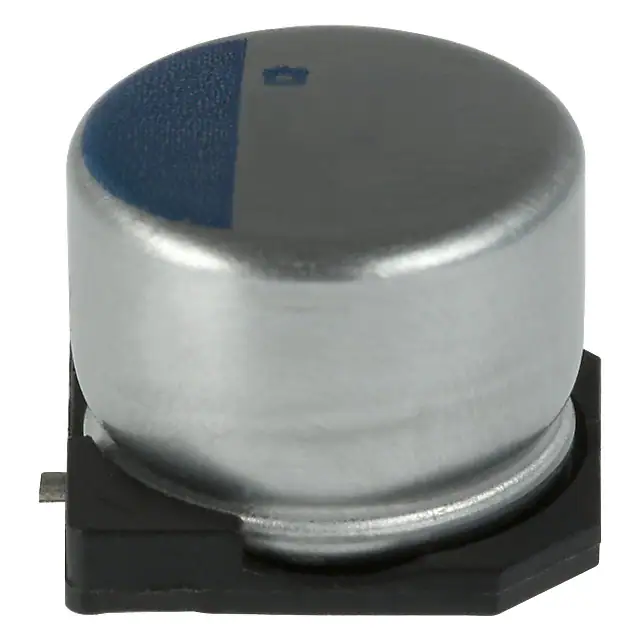

APXA100ARA330ME60GCAP ALUM POLY 33UF 20% 10V SMD Chemi-Con |
188,852 |
|
Datasheet |
|
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 10 V | 40mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.27 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APXE2R5ARA821MHC0GCAP ALUM POLY 820UF 20% 2.5V SMD Chemi-Con |
193,490 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXA160ARA220ME60GCAP ALUM POLY 22UF 20% 16V SMD Chemi-Con |
174,043 |
|
Datasheet |
|
NPCAP™-PXA | Tape & Reel (TR) | Discontinued at Digi-Key | Polymer | 22 µF | ±20% | 16 V | 45mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.21 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXE2R5ARA152MHC0GCAP ALUM POLY 1500UF 20% 2.5V Chemi-Con |
189,696 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXA4R0ARA821MJC0GCAP ALUM POLY 820UF 20% 4V SMD Chemi-Con |
126,884 |
|
Datasheet |
|
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 4 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
