Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
870025374007CAP ALUM POLY 470UF 20% 16V TH |
158,767 |
|
Datasheet |
 |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RR50G821MDN1CAP ALUM POLY 820UF 20% 4V TH |
198,579 |
|
Datasheet |
|
FPCAP, RR5 | Bulk | Active | Polymer | 820 µF | ±20% | 4 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 722 mA @ 120 Hz | 7.22 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
HHXC160ARA151MF80GCAP ALUMHYB 150UF 20% 16V SMD |
116,590 |
|
Datasheet |
|
HXC | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 16 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCJ0J391MCL1GSCAP ALUM POLY 390UF 20% 6.3V SMD |
187,218 |
|
Datasheet |
|
PCJ | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG1A561MCO1TDCAP ALUM POLY 560UF 20% 10V TH |
186,316 |
|
Datasheet |
|
PLG | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 10 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
6SVPS47MCAP ALUM POLY 47UF 20% 6.3V SMD |
169,924 |
|
Datasheet |
|
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
HHXD350ARA151MHA0GCAP ALUMHYB 150UF 20% 35V SMD |
190,675 |
|
Datasheet |
|
HXD | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXF6R3ARA391MH70GCAP ALUM POLY 390UF 20% 6.3V SMD |
143,599 |
|
Datasheet |
|
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCF1C390MCL4GBCAP ALUM POLY 39UF 20% 16V SMD |
145,974 |
|
Datasheet |
|
PCF | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
2R5SVPE330MCAP ALUM POLY 330UF 20% 2.5V SMD |
199,072 |
|
Datasheet |
|
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 157.5 mA @ 120 Hz | 3.15 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
RR50E152MDN1CAP ALUM POLY 1500UF 20% 2.5V TH |
157,437 |
|
Datasheet |
|
FPCAP, RR5 | Bulk | Active | Polymer | 1500 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 722 mA @ 120 Hz | 7.22 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
|
RR50J681MDN1CAP ALUM POLY 680UF 20% 6.3V TH |
189,969 |
|
Datasheet |
|
FPCAP, RR5 | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 722 mA @ 120 Hz | 7.22 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
RS81C101MDN1JTCAP ALUM POLY 100UF 20% 16V TH |
177,535 |
|
Datasheet |
|
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
RHA0G561MCN1GSCAP ALUM POLY 560UF 20% 4V SMD |
117,766 |
|
Datasheet |
|
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSF2R0ELL102MF08SCAP ALUM POLY 1000UF 20% 2V TH |
156,227 |
|
Datasheet |
|
NPCAP™-PSF | Bulk | Active | Polymer | 1000 µF | ±20% | 2 V | 5mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 590 mA @ 120 Hz | 5.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
A759MS567M1CAAE015CAP ALUM POLY 560UF 20% 16V TH |
127,837 |
|
Datasheet |
|
A759 | Bulk | Active | Polymer | 560 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 302.75 mA @ 120 Hz | 6.055 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
RR50J681MDN1PHCAP ALUM POLY 680UF 20% 6.3V TH |
170,505 |
|
Datasheet |
|
FPCAP, RR5 | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 722 mA @ 120 Hz | 7.22 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

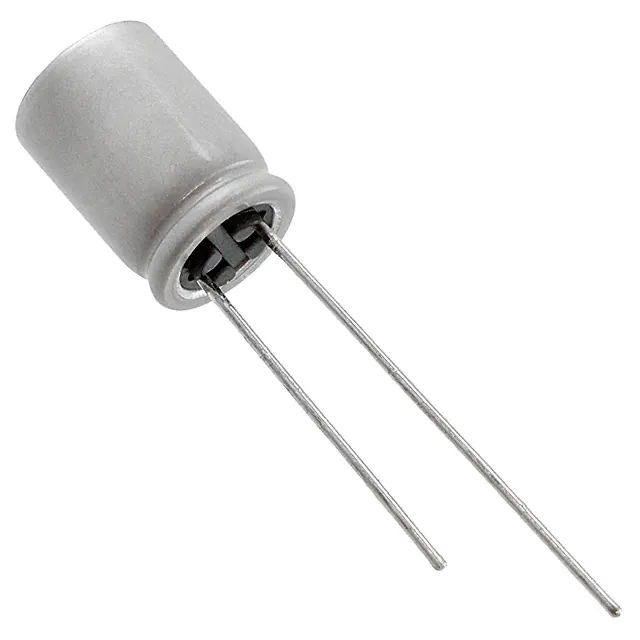

20SEP100MCAP ALUM POLY 100UF 20% 20V TH |
169,011 |
|
Datasheet |
|
OS-CON™, SEP | Bulk | Active | Polymer | 100 µF | ±20% | 20 V | 24mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 166 mA @ 120 Hz | 3.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
875105844001CAP ALUM POLY 5.6UF 20% 63V SMD |
133,541 |
|
Datasheet |
|
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 5.6 µF | ±20% | 63 V | 100mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 35 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCF0J470MCL1GSCAP ALUM POLY 47UF 20% 6.3V SMD |
160,671 |
|
Datasheet |
|
PCF | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
