Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

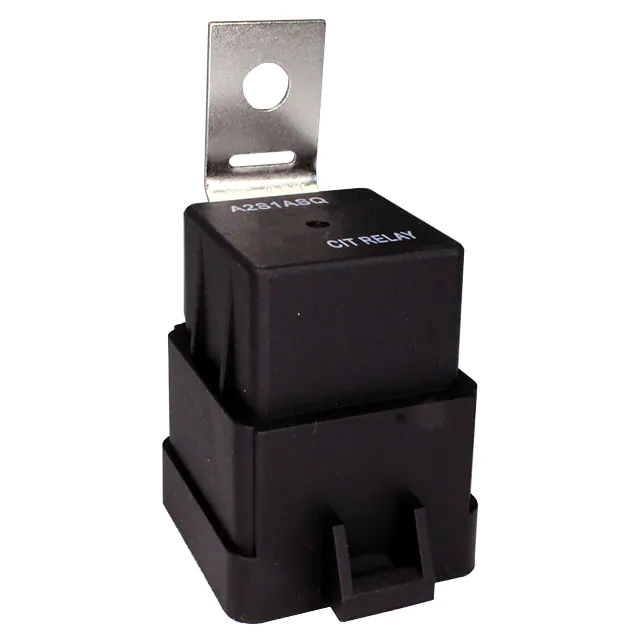

A2S1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V |
28,876 |
|
Datasheet |
 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A11ASQ48VDC1.2DRELAY AUTOMOTIVE SPST 30A 48V |
19,145 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A2S1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
39,101 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2S1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V |
48,068 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8G-1SV DC24AUTO MOTIVE PCB RELAY, DC 12V |
33,034 |
|
Datasheet |
|
G8G | Tube | Active | Non Latching | 106.7 mA | 24VDC | SPDT (1 Form C) | 14 A | 28VDC - Nom | 14.4 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
|
A11CSQ48VDC1.2RELAY AUTOMOTIVE SPDT 30A 48V |
10,967 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

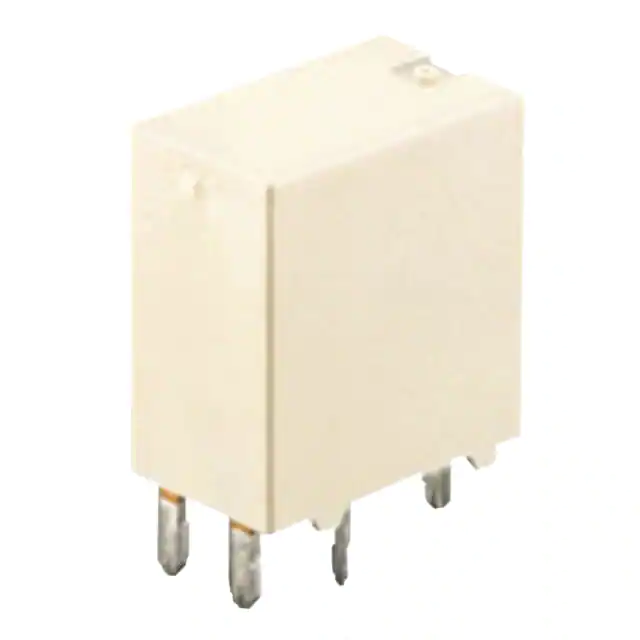

ACJ1112PRELAY AUTOMOTIVE SPDT 20A 12V |
25,737 |
|
Datasheet |
|
ACJ | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|

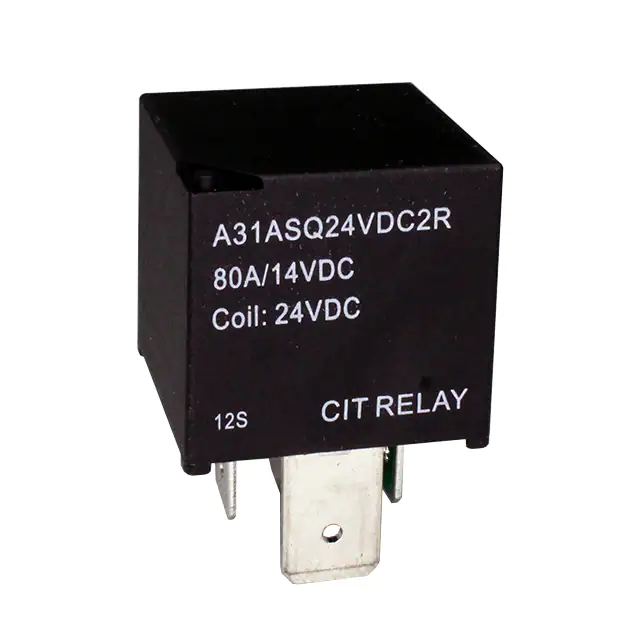

A31ASQ24VDC2RRELAY AUTOMOTIVE SPST 80A 24V |
45,780 |
|
Datasheet |
|
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2S1ASQ6VDC1.6RRELAY AUTOMOTIVE SPST 40A 6V |
21,690 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1ASQ48VDC1.6RRELAY AUTOMOTIVE SPST 40A 48V |
41,112 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1ASQ6VDC1.6DRELAY AUTOMOTIVE SPST 40A 6V |
10,489 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

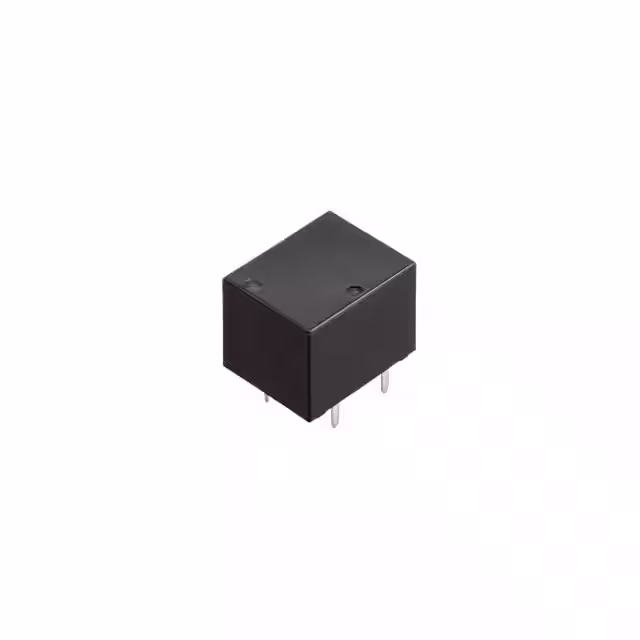

ACTB3C2A52RELAY AUTOMOTIVE SPDTX2 20A 12V |
39,110 |
|
Datasheet |
|
ACTB | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

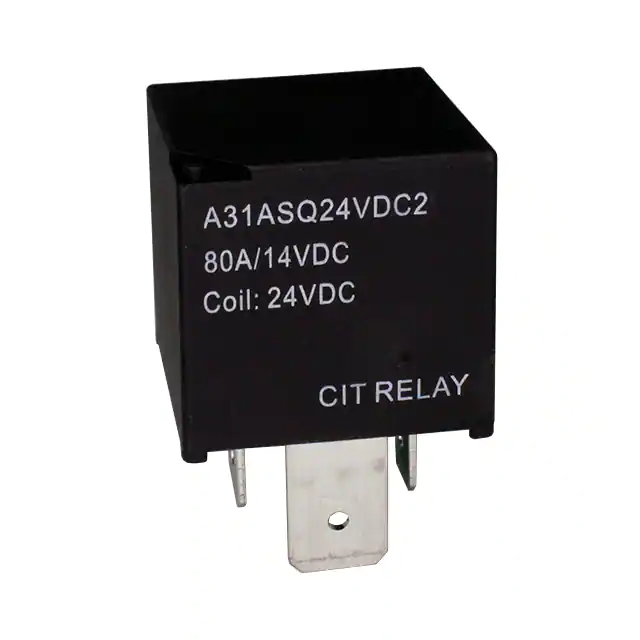

A31ASQ24VDC2RELAY AUTOMOTIVE SPST 80A 24V |
34,081 |
|
Datasheet |
|
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2S1ASQ48VDC1.6RELAY AUTOMOTIVE SPST 40A 48V |
43,076 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8K-27R DC12AUTO MOTIVE PCB RELAY, DC 12V |
23,137 |
|
Datasheet |
|
G8K | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | - | 6.9 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
A2S1CSQ6VDC1.6RRELAY AUTOMOTIVE SPDT 40A 6V |
16,459 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1CSQ6VDC1.6RELAY AUTOMOTIVE SPDT 40A 6V |
42,884 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 40A 48V |
35,041 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2K1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 120A 24V |
36,554 |
|
Datasheet |
|
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2KM1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 120A 24V |
27,646 |
|
Datasheet |
|
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
