Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA-400112-NNRELAY GEN PURPOSE SPST 40A 12V |
42,393 |
|
Datasheet |
 |
- | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 7.8 VDC | 1.2 VDC | - | - | - | Chassis Mount | Plug In | -40°C ~ 85°C |
|
PC7150-1A-C2-24C-RN-XRELAY AUTOMOTIVE SPST 75A 24V |
29,910 |
|
Datasheet |
|
- | Bag | Active | Non Latching | 132 mA | 24VDC | SPST-NO (1 Form A) | 75 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
4-1393302-1POWER F V23134 |
12,373 |
|
Datasheet |
|
V23134, AXICOM | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
4-1393306-6RELAY AUTOMOTIVE SPST 70A 12V |
42,139 |
|
Datasheet |
|
VF7 | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
4-1393303-8RELAY GEN PURPOSE SPST 40A 12V |
43,572 |
|
Datasheet |
|
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
6-1393302-4RELAY AUTOMOTIVE SPDT 60A 24V |
41,444 |
|
Datasheet |
|
F4 | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 60 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
V23134-A4052-X543RELAY AUTOMOTIVE SPDT |
26,502 |
|
Datasheet |
|
VF4 | Bulk | Active | Non Latching | 151 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
3-1904131-5RELAY GEN PURPOSE SPDT 40A 12V |
38,182 |
|
Datasheet |
|
VF4 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

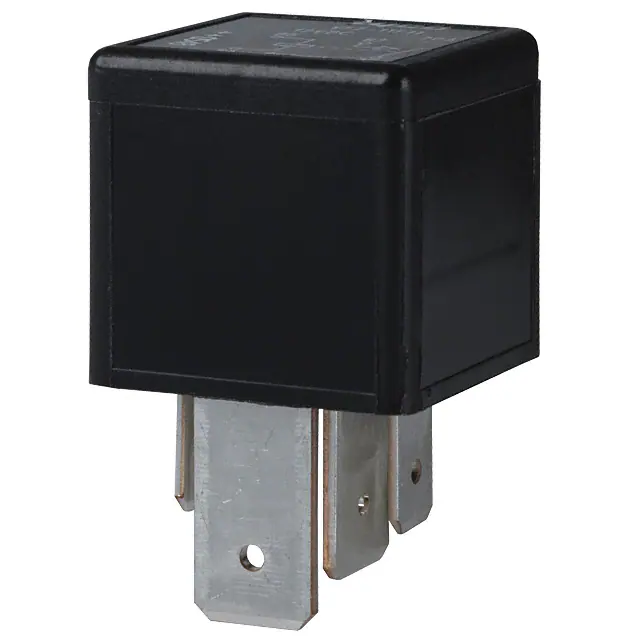

VF7-11H11RELAY AUTOMOTIVE SPST 70A 24V |
21,399 |
|
Datasheet |
|
VF7 | Bulk | Active | Non Latching | 83.3 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC776-1X-12C-XRELAY AUTOMOTIVE SPST 130A 12V |
22,452 |
|
Datasheet |
|
- | Bag | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
PC776-1X-24C-XRELAY AUTOMOTIVE SPST 130A 24V |
38,063 |
|
Datasheet |
|
- | Bag | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
PC776-1X-24S-XRELAY AUTOMOTIVE SPST 130A 24V |
32,959 |
|
Datasheet |
|
- | Bag | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
A11ASP48VDC1.2RRELAY AUTOMOTIVE SPST 30A 48V |
40,607 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
1393280-6General Purpose Relays V23086C10 |
14,154 |
|
Datasheet |
|
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A21ASP24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V |
18,954 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
G8N-1U-AS DC12RELAY AUTOMOTIVE SPDT 30A 12V |
42,305 |
|
- |
|
G8N-1 | Tube | Active | Non Latching | 92.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 5.5 VDC | 0.8 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8ND-2S-ASSKPCB RELAY |
24,664 |
|
- |
|
G8ND-2 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
BU5035Relay 30/40 Amp, 12 VDC, SPDT |
26,405 |
|
- |
|
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - |
|
|
1432872-1RELAY AUTOMOTIVE SPDT 40A 6V |
48,034 |
|
Datasheet |
|
- | Bulk | Obsolete | Non Latching | - | 6VDC | SPDT (1 Form C) | 40 A | 12VDC | - | - | - | - | - | Through Hole | PC Pin | - |
|

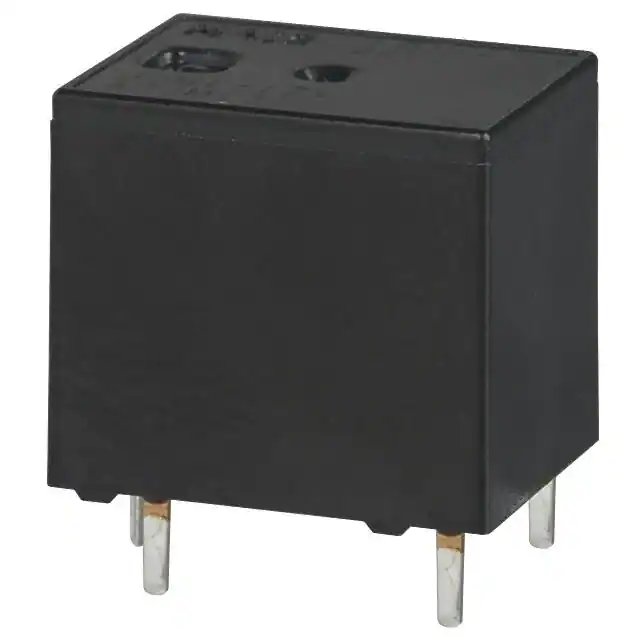

JJM1A-12VRELAY AUTOMOTIVE SPST 20A 12V |
30,950 |
|
Datasheet |
|
JJM | Tube | Obsolete | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
