Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1AF-P-24VRELAY AUTOMOTIVE SPST 20A 24V |
32,818 |
|
Datasheet |
 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1F-R-12VRELAY AUTOMOTIVE SPDT 40A 12V |
10,671 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CM1-R-24VCM RELAY 1 FORM C 24V |
24,904 |
|
Datasheet |
|
CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|

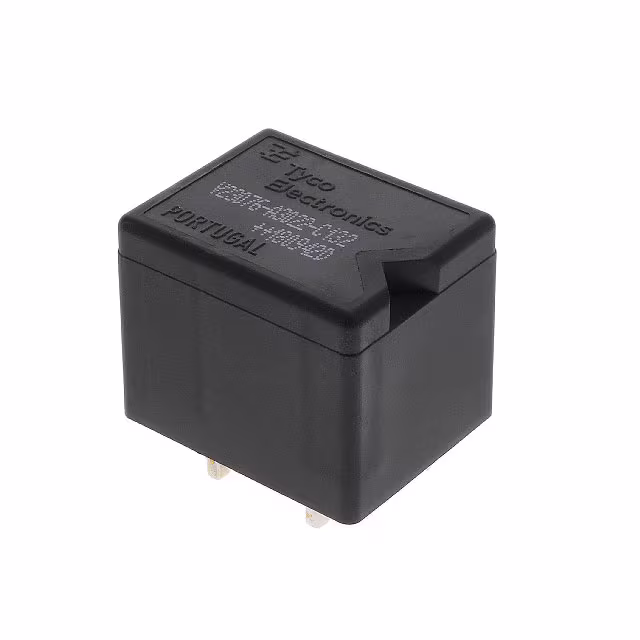

1-1393277-8RELAY AUTOMOTIVE SPST 45A 24V |
42,508 |
|
Datasheet |
|
V23076 | Bulk | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 45 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CA1ASR-12V-N-5CA RELAY 1 FORM A 12V |
47,826 |
|
Datasheet |
|
CA | Bulk | Active | Non Latching | 120 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Plug In | -30°C ~ 80°C |
|
A2K1CSP12VDC1.6DRELAY AUTOMOTIVE SPDT 120A 12V |
21,604 |
|
Datasheet |
|
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Through Hole | PC Pin | -40°C ~ 125°C |
|
CB1AH-T-P-24VCB RELAY HR 1 FORM A 24V |
34,546 |
|
Datasheet |
|
CB | Tube | Active | Non Latching | 58 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
RC-700112-NNRELAY GEN PURPOSE SPDT 70A 12V |
17,915 |
|
Datasheet |
|
- | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 70 A | 12VDC - Nom | 7.8 VDC | 1.2 VDC | - | - | - | Chassis Mount | Plug In | -40°C ~ 85°C |
|
05903300RELAY12V.200A |
15,939 |
|
Datasheet |
|
- | Box | Active | Non Latching | - | - | - | 100 A | 12VDC | - | - | - | - | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 100°C |
|

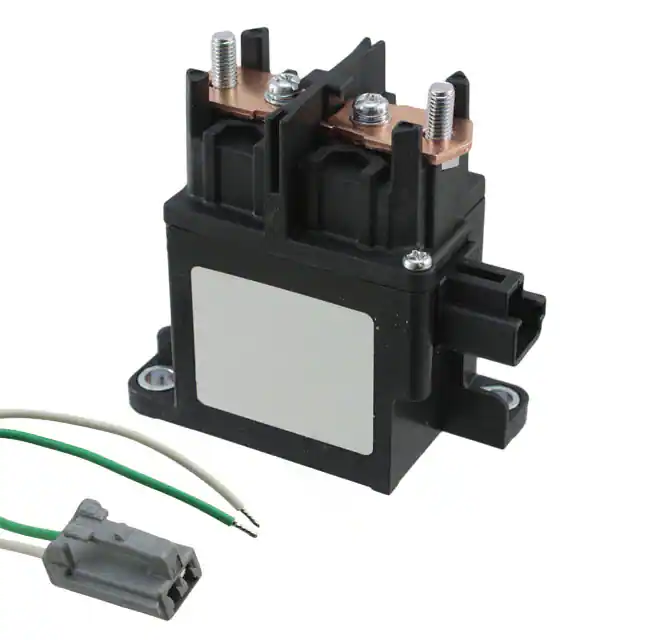

AEV18012WRELAY AUTOMOTIVE SPST 80A 12V |
15,949 |
|
Datasheet |
|
AEV | Tray | Active | Non Latching | 353 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 450VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|
AEV19012RELAY AUTOMOTIVE SPST 300A 12V |
21,929 |
|
Datasheet |
|
AEV | Bulk | Last Time Buy | Non Latching | 3.2 A | 12VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 9 VDC | 2 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
|
AEV19024RELAY AUTOMOTIVE SPST 300A 24V |
11,800 |
|
Datasheet |
|
AEV | Bulk | Last Time Buy | Non Latching | 1.9 A | 24VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 18 VDC | 4 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
A11ASQ24VDC1.2RRELAY AUTOMOTIVE SPST 30A 24V |
23,211 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A51AE24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
30,657 |
|
Datasheet |
|
A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11CSP12VDC1.5RELAY AUTOMOTIVE SPDT 30A 12V |
33,652 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21CSP48VDC1.6RRELAY AUTOMOTIVE SPDT 40A 48V |
26,289 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V |
20,490 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21CSP48VDC1.6DRELAY AUTOMOTIVE SPDT 40A 48V |
13,583 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

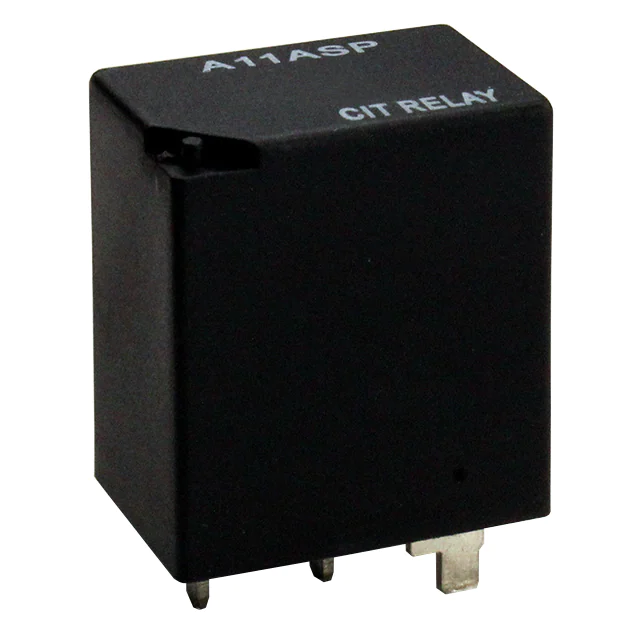

A11ASP24VDC1.5RELAY AUTOMOTIVE SPST 30A 24V |
36,446 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A31CCQ24VDC1RRELAY AUTOMOTIVE SPDT 60A 24V |
11,479 |
|
Datasheet |
|
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
