Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K1136757RELAY 31-311-12-S |
34,335 |
|
Datasheet |
 |
31, KISSLING | Bulk | Active | Latching, Dual Coil | 3 A | 24VDC | SPST-NO (1 Form A) | 300 A | - | 18 VDC | - | 250 ms | 250 ms | Diode | Chassis Mount | Screw Terminal | -40°C ~ 85°C |
|
|
31-211-12-E-906Relay 31-211-12-E-906 |
30,121 |
|
- |
|
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AZ947-1A-12DERELAY AUTOMOTIVE SPST 20A 12V |
37,602 |
|
Datasheet |
|
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1C-12DERELAY AUTOMOTIVE SPDT 20A 12V |
47,644 |
|
Datasheet |
|
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1A-24DRELAY AUTOMOTIVE SPST 20A 24V |
35,415 |
|
Datasheet |
|
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1C-24DRELAY AUTOMOTIVE SPDT 20A 24V |
24,141 |
|
Datasheet |
|
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1A-24DERELAY AUTOMOTIVE SPST 20A 24V |
44,460 |
|
Datasheet |
|
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1C-24DERELAY AUTOMOTIVE SPDT 20A 24V |
19,878 |
|
Datasheet |
|
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC537-1A-12S-XRELAY AUTOMOTIVE SPST 30A 12V |
36,010 |
|
Datasheet |
|
- | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ947-1A-12DRELAY AUTOMOTIVE SPST 20A 12V |
30,415 |
|
Datasheet |
|
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|

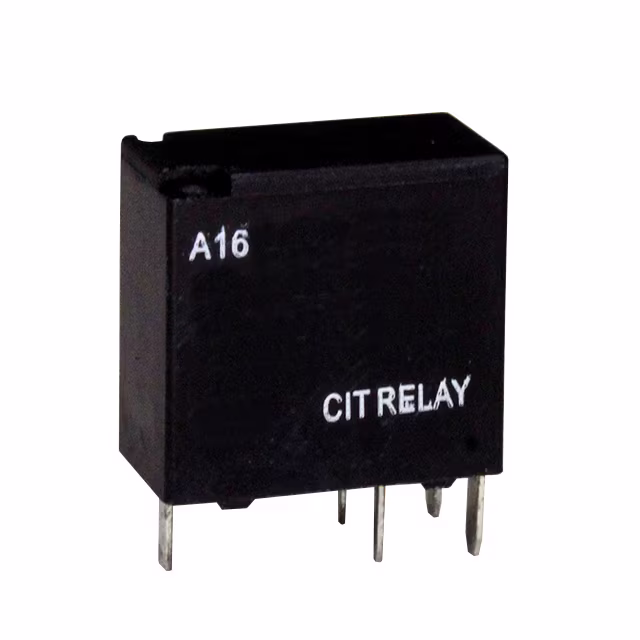

A161CS12VDC.80RELAY AUTOMOTIVE SPDT 30A 12V |
34,044 |
|
Datasheet |
|
A16 | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 30 A | 20VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ947-1C-12DRELAY AUTOMOTIVE SPDT 20A 12V |
28,976 |
|
Datasheet |
|
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC565-1C-12-XRELAY AUTOMOTIVE SPDT 25A 12V |
32,748 |
|
Datasheet |
|
- | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ9421A-1CT-12DERELAY AUTOMOTIVE SPDT 20A 12V |
26,810 |
|
Datasheet |
|
AZ9421A | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 20 A | 250VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ9421A-1CT-24DERELAY AUTOMOTIVE SPDT 20A 24V |
25,809 |
|
Datasheet |
|
AZ9421A | Tube | Active | Non Latching | 33.3 mA | 24VDC | SPDT (1 Form C) | 20 A | 250VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
A51AO12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V |
38,614 |
|
Datasheet |
|
A5 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A41US12VDCRELAY AUTOMOTIVE SPDT 20A 12V |
25,643 |
|
Datasheet |
|
A4 | Tray | Active | Non Latching | 82.8 mA | 12VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AO12VDC1.6URELAY AUTOMOTIVE SPST 40A 12V |
42,374 |
|
Datasheet |
|
A5 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AO12VDC1.9URELAY AUTOMOTIVE SPST 40A 12V |
44,941 |
|
Datasheet |
|
A5 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AO24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
47,582 |
|
Datasheet |
|
A5 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
