Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3KM1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 150A 24V CIT Relay and Switch |
25,843 |
|
Datasheet |
 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3K1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 150A 12V CIT Relay and Switch |
12,481 |
|
Datasheet |
|
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1CSP24VDC1.6RRELAY AUTOMOTIVE SPDT 150A 24V CIT Relay and Switch |
14,878 |
|
Datasheet |
|
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A11ASP48VDC1.2RRELAY AUTOMOTIVE SPST 30A 48V CIT Relay and Switch |
40,607 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21ASP24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
18,954 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2M1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
18,814 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A91AC24VDCRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
35,564 |
|
Datasheet |
|
A9 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
A171AS12VDC.96RELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
11,624 |
|
Datasheet |
|
A17 | Tray | Active | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2H1CSP24VDC1.6RELAY AUTOMOTIVE SPDT 50A 24V CIT Relay and Switch |
49,137 |
|
Datasheet |
|
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|

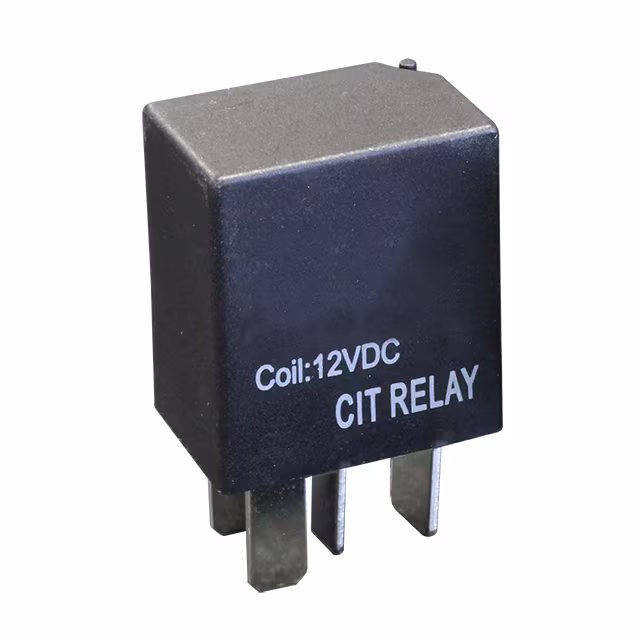

A11ASQ12VDC1.5DRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
19,275 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
