Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2HF1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
27,673 |
|
Datasheet |
 |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASQ12VDC1.9DRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
15,096 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
22,466 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
17,039 |
|
Datasheet |
|
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HF1ACQ12VDC1.6RRELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
47,800 |
|
Datasheet |
|
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2H1ACQ12VDC1.6RRELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
17,881 |
|
Datasheet |
|
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

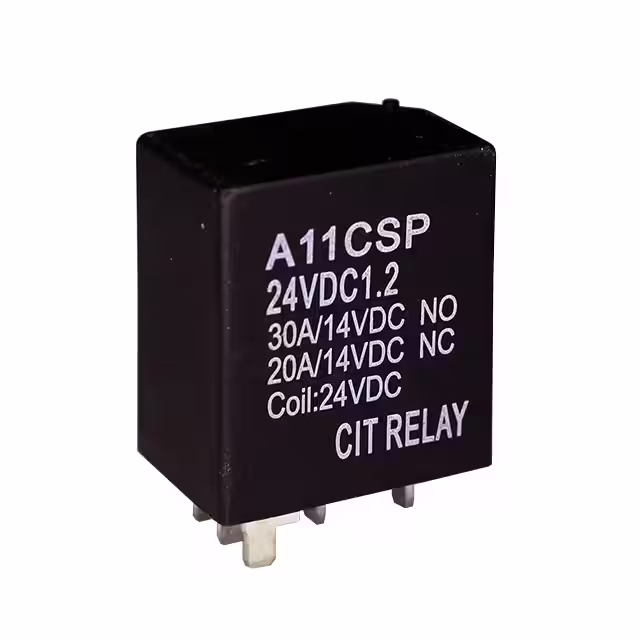

A11CSP24VDC1.2RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
16,006 |
|
Datasheet |
|
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A21ASQ24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
16,387 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1ASQ24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
23,916 |
|
Datasheet |
|
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A51AE24VDC1.6URELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
41,385 |
|
Datasheet |
|
A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
