Buzzer Elements, Piezo Benders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Frequency | Voltage - Input (Max) | Type | Impedance | Capacitance @ Frequency | Operating Temperature | Size / Dimension | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPE-9.800-9001-NS1BUZZER ELEMENT STD 9.8 KHZ 9MM |
19,216 |
|
Datasheet |
 |
- | Tray | Active | 9.8 kHz | 30V p-p | Standard | 1.5 kOhms | 10500pF @ 100Hz | -20°C ~ 60°C | 0.354" Dia (9.00mm) | None |
|
|
RPE-18.500-1204-NS1BUZZER ELEMENT STD 18.5 KHZ 12MM |
12,353 |
|
Datasheet |
|
- | Tray | Active | 18.5 kHz | 30V p-p | Standard | 1 kOhms | 6000pF @ 100Hz | -20°C ~ 60°C | 0.472" Dia (12.00mm) | None |
|
P08080-1BUZZER ELEMENT STD 10.5KHZ 15MM |
34,117 |
|
Datasheet |
|
- | Bulk | Active | 8 kHz | 15V p-p | Standard | - | 13000pF @ 1kHz | -20°C ~ 80°C | 0.350" Dia (8.90mm) | None |
|
|
RPE-4.100-1502-NS1BUZZER ELEMENT STD 4.1 KHZ 15MM |
43,526 |
|
Datasheet |
|
- | Tray | Active | 4.1 kHz | 30V p-p | Standard | 1 kOhms | 8000pF @ 100Hz | -20°C ~ 60°C | 0.591" Dia (15.00mm) | Wire Leads |
|
|
RPE-4.000-2002-NS2BUZZER ELEMENT STD 4KHZ 20MM |
25,276 |
|
Datasheet |
|
- | Tray | Active | 4 kHz | 30V p-p | Standard | 400 Ohms | 17000pF @ 100Hz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | Wire Leads |
|
|
RPE-4.000-2704-NS1BUZZER ELEMENT STD 4KHZ 27MM |
25,802 |
|
Datasheet |
|
- | Tray | Active | 4 kHz | 30V p-p | Standard | 400 Ohms | 20000pF @ 100Hz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | Wire Leads |
|

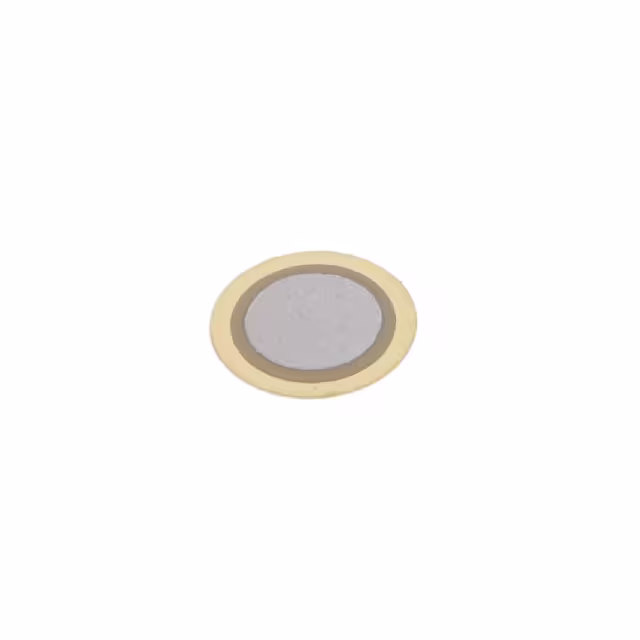

AB0818BBUZZER ELEMENT STD 18KHZ 7.70MM |
43,185 |
|
Datasheet |
|
AB | Bulk | Active | 18 kHz | 30V p-p | Standard | 1 kOhms | 7000pF @ 100Hz | -20°C ~ 60°C | 0.303" Dia (7.70mm) | None |
|
|
AB2025B-LW50-RBUZZER ELEMENT STD 2.5 KHZ 20MM |
48,519 |
|
Datasheet |
|
AB | Tray | Active | 2.5 kHz | 30V p-p | Standard | 500 Ohms | 80000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | Wire Leads |
|
|
7BB-27-4CL0BUZZER ELEMENT FDBK 4.6KHZ 27MM |
23,036 |
|
Datasheet |
|
7BB | Bulk | Last Time Buy | 4.6 kHz | - | Feedback | 350 Ohms | 18000pF @ 1kHz | -20°C ~ 70°C | 1.063" Dia (27.00mm) | Wire Leads |
|
AB2746BBUZZER ELEMENT STD 4.6KHZ 27MM |
39,626 |
|
Datasheet |
|
- | Bulk | Active | 4.6 kHz | 20V p-p | Standard | 250 Ohms | 16000pF @ 1kHz | -20°C ~ 70°C | 1.063" Dia (27.00mm) | None |
|

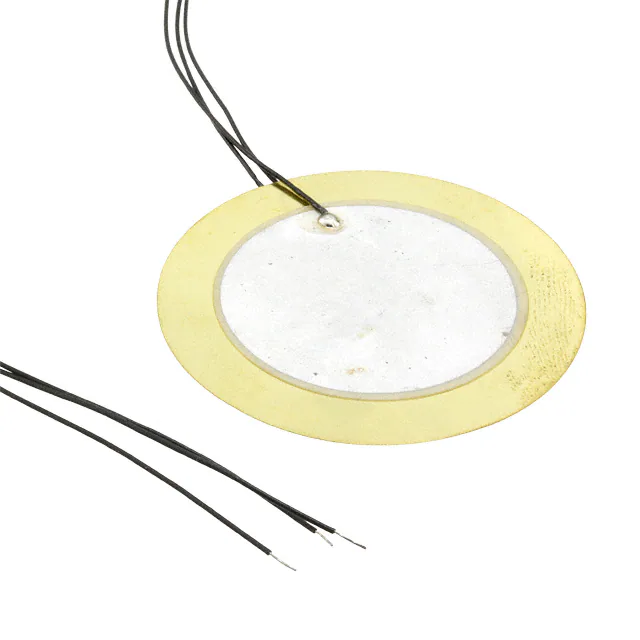

AB4113B-LW100-RBUZZER ELEMENT STD 1.3KHZ 41MM |
39,021 |
|
Datasheet |
|
AB | Bulk | Active | 1.3 kHz | 30V p-p | Standard | 200 Ohms | 150000pF @ 1kHz | -20°C ~ 60°C | 1.614" Dia (41.00mm) | Wire Leads |
|

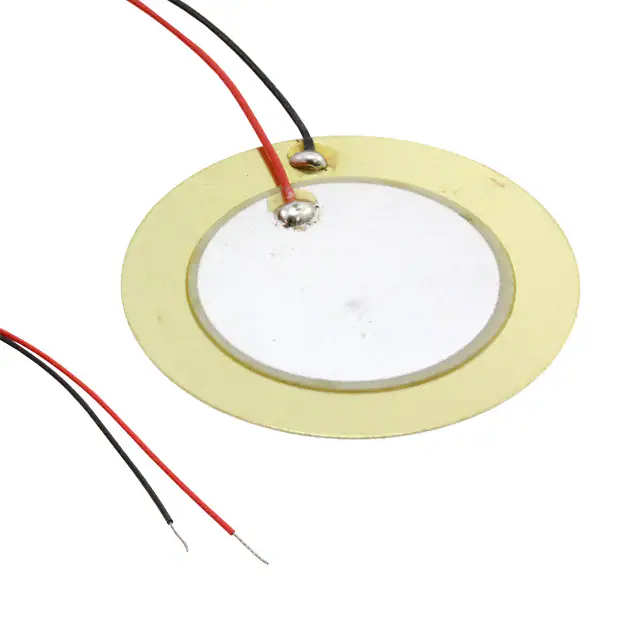

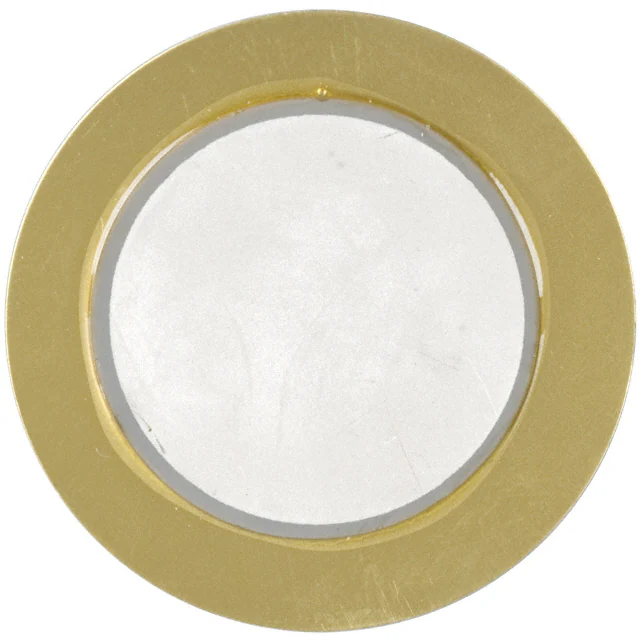

AB3526B-LW100-RBUZZER ELEMENT STD 2.6KHZ 35MM |
26,225 |
|
Datasheet |
|
AB | Bulk | Active | 2.6 kHz | 30V p-p | Standard | 300 Ohms | 30000pF @ 1kHz | -20°C ~ 70°C | 1.378" Dia (35.00mm) | Wire Leads |
|

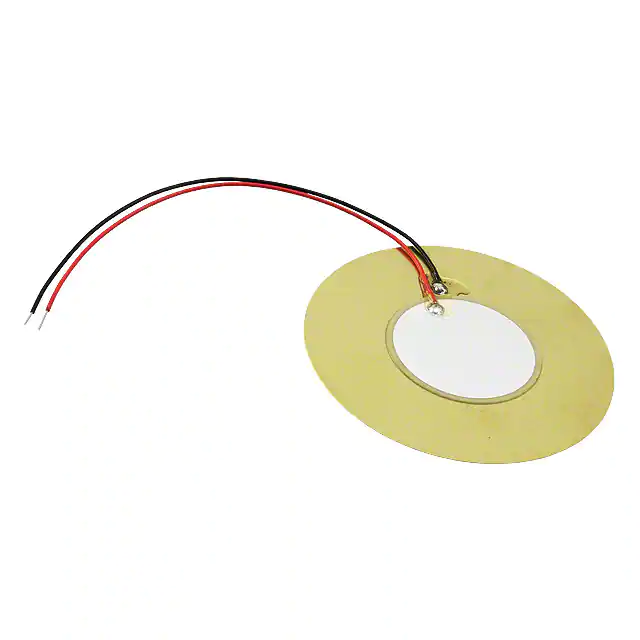

AB5027B-3-LW100-RBUZZER ELEMENT STD 2.7KHZ 50MM |
44,066 |
|
Datasheet |
|
AB | Bulk | Active | 2.7 kHz | 30V p-p | Standard | 500 Ohms | 40000pF @ 1kHz | -20°C ~ 60°C | 1.969" Dia (50.00mm) | Wire Leads |
|
|
HD-PAB2701BUZZER ELEMENT STD 5KHZ 27MM |
11,652 |
|
Datasheet |
|
HD-PAB | Tray | Active | 5 kHz | 155V p-p | Standard | 200 Ohms | 55000pF @ 100Hz | -24°C ~ 60°C | 1.063" Dia (27.00mm) | None |
|
|
HD-PAC1212BUZ ELEM STD 24KHZ 12MMX12MM |
36,066 |
|
Datasheet |
|
HD-PAC | Tray | Active | 24 kHz | 80V p-p | Standard | 40 Ohms | 1000000pF @ 1kHz | -25°C ~ 60°C | 0.472" L x 0.472" W (12.00mm x 12.00mm) | None |
|
AB2036BBUZZER ELEMENT STD 3.6KHZ 20MM |
15,371 |
|
Datasheet |
|
AB | Bulk | Active | 3.6 kHz | 30V p-p | Standard | 500 Ohms | 25000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | None |
|

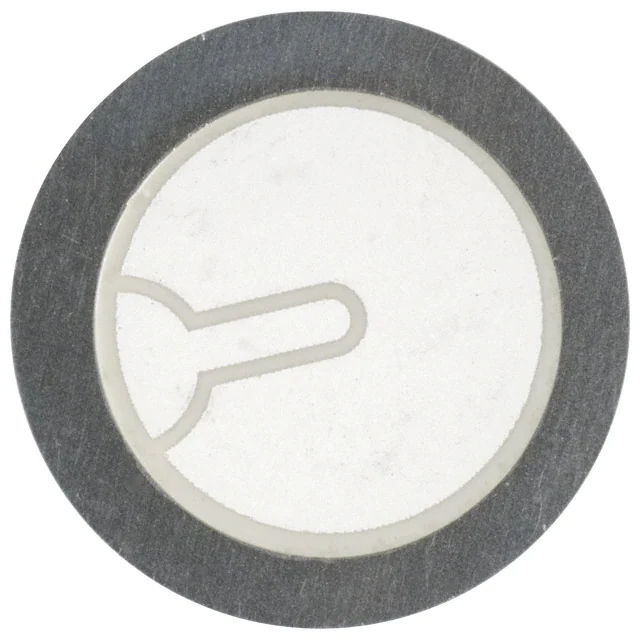

AB2036AFBUZZER ELEMENT FDBK 3.7KHZ 20MM |
38,661 |
|
Datasheet |
|
- | Bulk | Active | 3.7 kHz | 30V p-p | Feedback | 500 Ohms | 20000pF @ 1kHz | -20°C ~ 70°C | 0.787" Dia (20.00mm) | None |
|
CPT-2064-L100BUZZER ELEMENT FDBK 6.4KHZ 20MM |
17,190 |
|
Datasheet |
|
CPT | Bag | Active | 6.4 kHz | 30V p-p | Feedback | 400 Ohms | 10000pF @ 120Hz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | Wire Leads |
|
AB1548BBUZZER ELEMENT STD 4.8KHZ 15MM |
39,970 |
|
Datasheet |
|
- | Bulk | Active | 4.8 kHz | 20V p-p | Standard | 2 kOhms | 7500pF @ 1kHz | -20°C ~ 70°C | 0.591" Dia (15.00mm) | None |
|
|
AB2726BBUZZER ELEMENT STD 2.6KHZ 27MM |
18,277 |
|
Datasheet |
|
- | Bulk | Active | 2.6 kHz | 30V p-p | Standard | 250 Ohms | 50000pF @ 1kHz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | None |
