Chassis Mount Resistors

Manufacturer	Series	Package/Case	Packaging	Product Status	Resistance	Tolerance	Power (Watts)	Composition	Temperature Coefficient	Operating Temperature	Features	Coating, Housing Type	Mounting Feature	Size / Dimension	Height - Seated (Max)	Lead Style	Failure Rate	Grade	Qualification
3RLab ARCOL (Ohmite) Bourns Inc. Honeywell Sensing and Productivity Solutions KYOCERA AVX Littelfuse Inc. Miba Resistors Murata Power Solutions Inc. Ohmite RESI Riedon products by Bourns Shenzhen Milliohm Electronics Stackpole Electronics Inc TE Connectivity TE Connectivity AMP Connectors TE Connectivity Passive Product TT Electronics Vishay Vishay Beyschlag/Draloric/BC Components Vishay Dale VPG Foil Resistors YAGEO	* - 1000 270 280 40/70M 470 50/100M 500 800 825 89 ACP100 AH AHA AHB AHP ARCOL, HS ARF ARG BA BDS, CGS BDS100 BR BRS BRT C180 C190 C300 C38T C395 C42T C52T C52T Li CFH CHF - RF Power CJB, CGS CJH CJN CJP CJT, CGS Corrib®280 D DMS Euro-Power Euro-Power Wirewound EWT F10 F30 F40 F55 FL2 FNP FNR FPA100 FPA250 FPA2K FPA350 FPA600 FR1 FSE FSOT FST FVE FVOT FVT FVTS FVWL GWK GWS (250W) HCF HCH HCL HL HLM HLT HLZ HPK600 HRHA HS HS, CGS HSE3 HSE6 HSF HSN HSW HVR, CGS HXP ISOA ISOA200 KAL KHN KHR L100 L1000 L12 L175 L225 L25 L50 LCH 100 LPR LPS 1100 LPS 300 LPS 600 LPS 800 LPSA 300 LPSA 600 LPSA 800 MCR ME, CGS Metal-Mite®89 Metalohm MHL NH NHL OVSF PB PC PF2270 PFU Power-Mox Powr-Rib®PFE Powr-Rib®PFR PSB RA RAxxxx-20-8X RAxxxx-250-1X RBEA RBEF RBSF RCEC 400 RCEC 500 RCEC 750 RCEC 850 RCEC ISO RCH RCMC RCS RDSF RER40 RER45 RER50 RER55 RER60 RER65 RER70 RER75 RH RHA RP6 RPH 100 RPS 250 RPS 500 RS RSH RSI RSJ RSL RSN RSO RSW RTBS0050 RTBS0100 RTBS0200 RTBS0300 RTCS0050 RTCS0100 RTCS0200 RTCS0300 RTCS0500 RTCS1000 RTCS10K0 RTCS2000 RTCS20K0 RTCS5000 RTOP RW RWST Rxxxx-1200-1X Rxxxx-400-1X Rxxxx-800-1X S SH SQ, CGS Stackohm® 250 T50R0-1000-3X T50R0-250-12X T50R0-500-10X TA TA50R0-800-10X TAP1000 TAP2000 TAP600 TAP650 TAP800 TE TE, CGS TFBR TFSO TGH TGH600 TGHD TGHE TGHG TGHM THS, CGS TJT TL TMC TTH UAL ULDCR00 UWP UXP1000 VC VE VFP-3 VN VNC VNPC VPR VPR5 VPR5Z VPR7 VPR7Z WCR WFH WPRT	- Axial Axial, Box Axial, Flat Box Axial, Tubular Box Flat Box, Terminator Module Radial Radial, 3 Lead, Tubular Radial, Flat Oval Radial, Rectangular Case Radial, Tubular Rectangular Case Rectangular Case - Open Rectangular, Wire Leads SOT-227-2 SOT-227-2, miniBLOC SOT-227-4 SOT-227-4, miniBLOC	- Bag Box Bulk Case Cut Tape (CT) Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Obsolete	- 0.056 Ohms 0.068 Ohms 0.082 Ohms 1 GOhms 1 kOhms 1 mOhms 1 Ohms 1.01 Ohms 1.02 kOhms 1.02 Ohms 1.05 kOhms 1.05 mOhms 1.05 Ohms 1.07 kOhms 1.07 Ohms 1.075 kOhms 1.1 kOhms 1.1 Ohms 1.13 kOhms 1.13 Ohms 1.14 Ohms 1.15 kOhms 1.15 Ohms 1.18 kOhms 1.18 Ohms 1.2 kOhms 1.2 mOhms 1.2 Ohms 1.21 kOhms 1.21 Ohms 1.24 kOhms 1.24 Ohms 1.25 kOhms 1.25 mOhms 1.25 Ohms 1.27 kOhms 1.27 Ohms 1.3 kOhms 1.3 Ohms 1.33 kOhms 1.33 Ohms 1.333 mOhms 1.33333 kOhms 1.37 kOhms 1.37 Ohms 1.4 kOhms 1.4 Ohms 1.43 kOhms 1.43 Ohms 1.47 kOhms 1.47 Ohms 1.49 Ohms 1.5 kOhms 1.5 Ohms 1.52 Ohms 1.53 Ohms 1.54 kOhms 1.54 Ohms 1.56 kOhms 1.58 kOhms 1.58 Ohms 1.6 kOhms 1.6 mOhms 1.6 Ohms 1.608 kOhms 1.61333 kOhms 1.62 kOhms 1.62 Ohms 1.65 kOhms 1.65 Ohms 1.667 kOhms 1.667 mOhms 1.67 mOhms 1.67 Ohms 1.69 kOhms 1.69 Ohms 1.74 kOhms 1.74 Ohms 1.75 kOhms 1.75 Ohms 1.78 kOhms 1.78 Ohms 1.8 kOhms 1.8 Ohms 1.82 kOhms 1.82 Ohms 1.87 kOhms 1.87 Ohms 1.875 Ohms 1.91 kOhms 1.91 Ohms 1.95 kOhms 1.96 kOhms 1.96 Ohms 1.99 kOhms 10 kOhms 10 mOhms 10 Ohms 10 µOhms 10.1 Ohms 10.2 Ohms 10.4 Ohms 10.5 kOhms 10.5 mOhms 10.5 Ohms 10.7 Ohms 10.9 Ohms 100 kOhms 100 mOhms 100 Ohms 100 µOhms 101 Ohms 102 mOhms 102 Ohms 103 Ohms 105 mOhms 105 Ohms 107 mOhms 107 Ohms 11 kOhms 11 MOhms 11 Ohms 11 µOhms 11.1 µOhms 11.2 Ohms 11.3 kOhms 11.3 Ohms 11.4 Ohms 11.5 kOhms 11.5 Ohms 11.8 Ohms 110 mOhms 110 Ohms 111 Ohms 113 mOhms 113 Ohms 115 mOhms 115 Ohms 118 mOhms 118 Ohms 12 kOhms 12 mOhms 12 Ohms 12.1 kOhms 12.1 Ohms 12.3 Ohms 12.4 kOhms 12.4 Ohms 12.5 kOhms 12.5 mOhms 12.5 Ohms 12.5 µOhms 12.6 kOhms 12.7 Ohms 12.8 Ohms 120 kOhms 120 mOhms 120 Ohms 121 mOhms 121 Ohms 124 mOhms 124 Ohms 125 mOhms 125 Ohms 125 µOhms 127 mOhms 127 Ohms 128 Ohms 129 kOhms 13 kOhms 13 mOhms 13 Ohms 13.3 Ohms 13.3 µOhms 13.6 Ohms 13.7 Ohms 13.8 Ohms 130 kOhms 130 mOhms 130 Ohms 132 Ohms 133 mOhms 133 Ohms 133 µOhms 135 Ohms 137 mOhms 137 Ohms 14 Ohms 14.2 Ohms 14.3 Ohms 14.3 µOhms 14.4 Ohms 14.7 kOhms 14.7 Ohms 14.8 Ohms 14.9 Ohms 140 mOhms 140 Ohms 143 mOhms 143 Ohms 147 kOhms 147 mOhms 147 Ohms 15 kOhms 15 mOhms 15 Ohms 15.4 Ohms 15.6 Ohms 15.8 Ohms 150 kOhms 150 mOhms 150 Ohms 150 µOhms 154 mOhms 154 Ohms 158 mOhms 158 Ohms 16 kOhms 16 MOhms 16 Ohms 16.2 Ohms 16.5 kOhms 16.5 Ohms 16.6 Ohms 16.7 µOhms 16.9 Ohms 160 kOhms 160 mOhms 160 Ohms 162 mOhms 162 Ohms 164 MOhms 165 mOhms 165 Ohms 166 Ohms 166.6 µOhms 166.7 µOhms 167 µOhms 169 mOhms 169 Ohms 17 Ohms 17.2 Ohms 17.4 kOhms 17.4 Ohms 17.6 Ohms 17.8 Ohms 170 Ohms 174 mOhms 174 Ohms 175 kOhms 175 mOhms 175 Ohms 178 mOhms 178 Ohms 18 kOhms 18 Ohms 18.2 kOhms 18.2 Ohms 18.7 kOhms 18.7 Ohms 180 kOhms 180 mOhms 180 Ohms 182 mOhms 182 Ohms 186 Ohms 187 mOhms 187 Ohms 187.5 µOhms 19.1 Ohms 19.6 kOhms 19.6 Ohms 19.9 Ohms 190 mOhms 191 mOhms 191 Ohms 192 Ohms 195 Ohms 196 mOhms 196 Ohms 2 kOhms 2 mOhms 2 Ohms 2.05 kOhms 2.05 Ohms 2.1 kOhms 2.1 Ohms 2.15 kOhms 2.15 Ohms 2.2 kOhms 2.2 Ohms 2.21 kOhms 2.21 Ohms 2.25 Ohms 2.26 kOhms 2.26 Ohms 2.3 kOhms 2.3 Ohms 2.32 kOhms 2.32 Ohms 2.37 kOhms 2.37 Ohms 2.4 kOhms 2.4 Ohms 2.43 kOhms 2.43 Ohms 2.49 kOhms 2.49 Ohms 2.5 kOhms 2.5 mOhms 2.5 Ohms 2.55 kOhms 2.55 Ohms 2.6 kOhms 2.6 Ohms 2.61 kOhms 2.61 Ohms 2.65 Ohms 2.67 kOhms 2.67 Ohms 2.7 kOhms 2.7 Ohms 2.74 kOhms 2.74 Ohms 2.8 kOhms 2.8 Ohms 2.84 Ohms 2.87 kOhms 2.87 Ohms 2.94 kOhms 2.94 Ohms 2.99 Ohms 20 kOhms 20 mOhms 20 Ohms 20 µOhms 20.5 Ohms 200 kOhms 200 mOhms 200 Ohms 200 µOhms 204 Ohms 205 mOhms 205 Ohms 21 kOhms 21 Ohms 21.5 kOhms 21.5 Ohms 210 mOhms 210 Ohms 211 mOhms 215 mOhms 215 Ohms 216 Ohms 22 kOhms 22 Ohms 22 µOhms 22.1 kOhms 22.1 Ohms 22.5 Ohms 22.6 kOhms 22.6 Ohms 22.8 Ohms 220 kOhms 220 mOhms 220 Ohms 221 mOhms 221 Ohms 223 Ohms 225 Ohms 226 mOhms 226 Ohms 23 Ohms 23.2 kOhms 23.2 Ohms 23.7 Ohms 230 Ohms 232 Ohms 233 mOhms 234 Ohms 237 mOhms 237 Ohms 24 kOhms 24 Ohms 24.3 Ohms 24.9 kOhms 24.9 Ohms 240 kOhms 240 mOhms 240 Ohms 243 mOhms 243 Ohms 249 mOhms 249 Ohms 25 kOhms 25 mOhms 25 Ohms 25 µOhms 25.5 Ohms 250 kOhms 250 mOhms 250 Ohms 250 µOhms 255 mOhms 255 Ohms 256 Ohms 26 Ohms 26.1 Ohms 26.7 Ohms 260 kOhms 260 Ohms 261 mOhms 261 Ohms 267 mOhms 267 Ohms 267 µOhms 27 kOhms 27 Ohms 27.1 Ohms 27.4 kOhms 27.4 Ohms 27.5 Ohms 270 mOhms 270 Ohms 274 mOhms 274 Ohms 28 kOhms 28 Ohms 28.7 kOhms 28.7 Ohms 280 kOhms 280 mOhms 280 Ohms 286 µOhms 287 mOhms 287 Ohms 288 Ohms 29 kOhms 29.4 kOhms 29.4 Ohms 290 mOhms 290 Ohms 294 Ohms 3 kOhms 3 MOhms 3 Ohms 3.01 kOhms 3.01 Ohms 3.09 kOhms 3.09 Ohms 3.1 kOhms 3.1 Ohms 3.15 Ohms 3.16 kOhms 3.16 Ohms 3.2 Ohms 3.24 kOhms 3.24 Ohms 3.3 kOhms 3.3 MOhms 3.3 Ohms 3.32 kOhms 3.32 Ohms 3.33 mOhms 3.333 mOhms 3.4 kOhms 3.4 Ohms 3.48 kOhms 3.48 Ohms 3.49 Ohms 3.5 kOhms 3.5 Ohms 3.5 µOhms 3.57 kOhms 3.57 Ohms 3.6 kOhms 3.6 Ohms 3.65 kOhms 3.65 Ohms 3.74 kOhms 3.74 Ohms 3.75 mOhms 3.75 Ohms 3.83 kOhms 3.83 Ohms 3.9 kOhms 3.9 MOhms 3.9 Ohms 3.92 kOhms 3.92 Ohms 3.93 Ohms 30 kOhms 30 mOhms 30 Ohms 30.1 kOhms 30.1 Ohms 30.5 Ohms 30.9 kOhms 30.9 Ohms 300 kOhms 300 mOhms 300 Ohms 300 µOhms 301 mOhms 301 Ohms 305 Ohms 309 mOhms 309 Ohms 31 Ohms 31.2 Ohms 31.6 kOhms 31.6 Ohms 310 mOhms 316 mOhms 316 Ohms 317 Ohms 32 Ohms 32.4 Ohms 320 mOhms 320 Ohms 324 Ohms 33 kOhms 33 mOhms 33 Ohms 33 µOhms 33.2 kOhms 33.2 Ohms 33.4 µOhms 330 kOhms 330 mOhms 330 Ohms 330 µOhms 332 mOhms 332 Ohms 333 µOhms 333.3 µOhms 34 kOhms 34 Ohms 34.4 Ohms 34.8 kOhms 34.8 Ohms 340 mOhms 340 Ohms 348 mOhms 348 Ohms 35 kOhms 35 MOhms 35 Ohms 35.6 Ohms 35.7 kOhms 35.7 Ohms 350 mOhms 350 Ohms 357 Ohms 36 kOhms 36 Ohms 36.3 Ohms 36.5 kOhms 36.5 Ohms 360 kOhms 360 mOhms 360 Ohms 365 mOhms 365 Ohms 37 kOhms 37.4 Ohms 37.5 Ohms 370 mOhms 370 Ohms 374 Ohms 375 mOhms 375 µOhms 38 mOhms 38 Ohms 38.3 kOhms 38.3 Ohms 380 Ohms 383 mOhms 383 Ohms 39 kOhms 39 Ohms 39.2 kOhms 39.2 Ohms 390 kOhms 390 mOhms 390 Ohms 392 mOhms 392 Ohms 4 kOhms 4 MOhms 4 Ohms 4.02 kOhms 4.02 Ohms 4.1 kOhms 4.12 kOhms 4.12 Ohms 4.22 kOhms 4.22 Ohms 4.3 kOhms 4.3 Ohms 4.32 kOhms 4.32 Ohms 4.4 Ohms 4.42 kOhms 4.42 Ohms 4.46 Ohms 4.47 kOhms 4.5 kOhms 4.5 Ohms 4.53 kOhms 4.53 Ohms 4.64 kOhms 4.64 Ohms 4.7 kOhms 4.7 Ohms 4.75 kOhms 4.75 Ohms 4.87 kOhms 4.87 Ohms 4.9 kOhms 4.99 kOhms 4.99 Ohms 40 kOhms 40 mOhms 40 Ohms 40 µOhms 40.2 Ohms 400 kOhms 400 mOhms 400 Ohms 400 µOhms 402 mOhms 402 Ohms 41 Ohms 41.2 Ohms 41.7 µOhms 410 mOhms 412 mOhms 412 Ohms 417 µOhms 42 mOhms 42 Ohms 42 µOhms 42.2 Ohms 420 Ohms 422 mOhms 422 Ohms 43 kOhms 43 Ohms 43.2 Ohms 430 kOhms 430 mOhms 430 Ohms 432 mOhms 432 Ohms 44 mOhms 44 Ohms 44.2 Ohms 440 Ohms 442 mOhms 442 Ohms 45 Ohms 45.1 Ohms 45.3 Ohms 450 Ohms 453 mOhms 453 Ohms 459 Ohms 46 kOhms 46.4 Ohms 464 mOhms 464 Ohms 47 kOhms 47 mOhms 47 Ohms 47.5 Ohms 470 kOhms 470 mOhms 470 Ohms 475 mOhms 475 Ohms 48 kOhms 48 Ohms 48.7 Ohms 480 kOhms 480 Ohms 487 mOhms 487 Ohms 49 Ohms 49.9 Ohms 499 mOhms 499 Ohms 5 kOhms 5 mOhms 5 Ohms 5 µOhms 5.1 kOhms 5.1 Ohms 5.11 kOhms 5.11 Ohms 5.16 Ohms 5.23 kOhms 5.23 Ohms 5.25 Ohms 5.3 Ohms 5.36 kOhms 5.36 Ohms 5.4 kOhms 5.4 Ohms 5.42 kOhms 5.49 kOhms 5.49 Ohms 5.5 Ohms 5.6 kOhms 5.6 MOhms 5.6 Ohms 5.6 µOhms 5.62 kOhms 5.62 Ohms 5.68 Ohms 5.7 kOhms 5.76 kOhms 5.76 Ohms 5.8 kOhms 5.8 Ohms 5.9 kOhms 5.9 Ohms 50 kOhms 50 mOhms 50 Ohms 50 µOhms 50.5 Ohms 500 kOhms 500 mOhms 500 Ohms 500 µOhms 505 Ohms 51 kOhms 51 mOhms 51 Ohms 51.1 Ohms 510 kOhms 510 mOhms 510 Ohms 511 mOhms 511 Ohms 512 Ohms 515 Ohms 52 Ohms 52.3 Ohms 523 mOhms 523 Ohms 53 Ohms 53.6 Ohms 536 mOhms 536 Ohms 539 mOhms 54 mOhms 54 Ohms 54.9 Ohms 549 mOhms 549 Ohms 55 Ohms 550 Ohms 56 kOhms 56 mOhms 56 Ohms 56.1 Ohms 56.2 Ohms 560 mOhms 560 Ohms 562 mOhms 562 Ohms 57.6 Ohms 570 mOhms 576 mOhms 576 Ohms 58 Ohms 580 Ohms 59 Ohms 590 mOhms 590 Ohms 6 kOhms 6 MOhms 6 Ohms 6.04 kOhms 6.04 Ohms 6.1 Ohms 6.19 kOhms 6.19 Ohms 6.2 kOhms 6.2 Ohms 6.25 Ohms 6.3 kOhms 6.3 Ohms 6.3 µOhms 6.34 kOhms 6.34 Ohms 6.4 Ohms 6.49 kOhms 6.49 Ohms 6.5 kOhms 6.5 Ohms 6.6 MOhms 6.65 kOhms 6.65 Ohms 6.667 mOhms 6.7 µOhms 6.8 kOhms 6.8 Ohms 6.81 kOhms 6.81 Ohms 6.93 kOhms 6.98 kOhms 6.98 Ohms 60 kOhms 60 Ohms 60.4 Ohms 600 mOhms 600 Ohms 600 µOhms 604 mOhms 604 Ohms 605 Ohms 61.9 Ohms 615 Ohms 619 mOhms 619 Ohms 62 kOhms 62 Ohms 62.5 Ohms 62.5 µOhms 620 kOhms 620 mOhms 620 Ohms 625 Ohms 625 µOhms 63.4 Ohms 630 mOhms 634 mOhms 634 Ohms 635 Ohms 64 Ohms 64.9 Ohms 645 Ohms 649 mOhms 649 Ohms 65 Ohms 66.5 Ohms 660 mOhms 665 mOhms 665 Ohms 666.7 µOhms 667 µOhms 67 Ohms 67 µOhms 670 mOhms 670 µOhms 68 kOhms 68 mOhms 68 Ohms 68.1 Ohms 680 kOhms 680 mOhms 680 Ohms 681 mOhms 681 Ohms 69 mOhms 69.8 Ohms 698 Ohms 7 kOhms 7 Ohms 7.1 Ohms 7.14 µOhms 7.15 kOhms 7.15 Ohms 7.2 Ohms 7.32 kOhms 7.32 Ohms 7.4 Ohms 7.5 kOhms 7.5 mOhms 7.5 Ohms 7.68 kOhms 7.68 Ohms 7.7 Ohms 7.87 kOhms 7.87 Ohms 70 kOhms 70 Ohms 700 mOhms 700 Ohms 71.5 Ohms 715 mOhms 715 Ohms 72 Ohms 73 Ohms 73.2 Ohms 732 mOhms 732 Ohms 749 Ohms 75 kOhms 75 mOhms 75 Ohms 75 µOhms 750 kOhms 750 mOhms 750 Ohms 750 µOhms 751 mOhms 76 Ohms 76.8 Ohms 768 mOhms 768 Ohms 77 Ohms 78.7 Ohms 785 Ohms 787 mOhms 787 Ohms 79 Ohms 790 mOhms 791 Ohms 8 kOhms 8 mOhms 8 Ohms 8.06 kOhms 8.06 Ohms 8.2 kOhms 8.2 Ohms 8.25 kOhms 8.25 Ohms 8.3 µOhms 8.33 kOhms 8.4 MOhms 8.45 kOhms 8.45 Ohms 8.5 Ohms 8.57 kOhms 8.66 kOhms 8.66 Ohms 8.87 kOhms 8.87 Ohms 80 kOhms 80 mOhms 80 Ohms 80.6 Ohms 800 mOhms 800 Ohms 800 µOhms 806 mOhms 806 Ohms 82 kOhms 82 mOhms 82 Ohms 82.5 Ohms 820 mOhms 820 Ohms 825 mOhms 825 Ohms 83 Ohms 83 µOhms 83.3 µOhms 83.5 Ohms 830 Ohms 830 µOhms 84.5 Ohms 840 mOhms 840 Ohms 845 mOhms 845 Ohms 85 Ohms 86 kOhms 86 Ohms 86.6 Ohms 860 Ohms 866 mOhms 866 Ohms 870 Ohms 88 Ohms 88.7 Ohms 880 Ohms 887 mOhms 887 Ohms 89 Ohms 89.5 Ohms 9 kOhms 9 Ohms 9.09 kOhms 9.09 Ohms 9.1 kOhms 9.1 Ohms 9.31 kOhms 9.31 Ohms 9.4 Ohms 9.5 kOhms 9.53 kOhms 9.53 Ohms 9.6 Ohms 9.76 kOhms 9.76 Ohms 9.8 Ohms 90 kOhms 90 Ohms 90.9 Ohms 900 Ohms 909 mOhms 909 Ohms 91 kOhms 91 Ohms 910 mOhms 910 Ohms 916 Ohms 92 kOhms 93.1 Ohms 931 mOhms 931 Ohms 94 mOhms 948 Ohms 95.3 Ohms 950 mOhms 953 mOhms 953 Ohms 969 Ohms 97.6 Ohms 976 mOhms 976 Ohms	- ±0.01% ±0.05% ±0.1% ±0.25% ±0.5% ±1% ±10% ±2% ±20% ±3% ±5%	- 0.25W, 1/4W 0.5W, 1/2W 0.75W, 3/4W 1.5W 1000W 100W 1012W 1017W 1082W 1089W 1093W 10W 1100W 1105W 1109W 110W 1126W 1141W 114W 115W 12.5W 1200W 120W 1230W 1250W 125W 12W 13.5W 130W 135W 137W 1475W 1500W 150W 155W 158W 15W 160W 16W 1700W 175W 17W 18.75W 180W 18W 190W 1W 2.5W 2000W 200W 202W 20W 220W 225W 22W 230W 240W 24W 2500W 250W 25W 260W 270W 275W 27W 280W 28W 2W 3000W 300W 30W 315W 320W 330W 350W 35W 37.5W 375W 38W 395W 3W 4000W 400W 40W 410W 420W 44W 450W 45W 480W 48W 5.625W 5000W 500W 50W 525W 550W 55W 5W 600W 60W 61W 650W 65W 696W 6W 7.5W 700W 70W 71W 721W 726W 72W 740W 744W 745W 746W 750W 751W 752W 757W 75W 76W 78W 7W 800W 80W 850W 85W 900W 90W 925W 95W 962W 973W 975W 992W 994W	- Carbon Film Ceramic Metal Clad Metal Element Metal Foil Thick Film Thin Film Wirewound	- -80, +200ppm/°C -800/ +2000ppm/°C 0/ +100ppm/°C 0/ -2000ppm/°C 0/ -800ppm/°C 100/ +180ppm/°C 100ppm/°C 1030ppm/°C 150ppm/°C 25ppm/°C 260ppm/°C 30ppm/°C 400ppm/°C 50/ +150ppm/°C 50ppm/°C 75ppm/°C ±0.2ppm/°C ±100ppm/°C ±10ppm/°C ±120ppm/°C ±150ppm/°C ±15ppm/°C ±180ppm/°C ±1ppm/°C ±2.5ppm/°C ±200ppm/°C ±20ppm/°C ±250ppm/°C ±25ppm/°C ±260ppm/°C ±2ppm/°C ±300ppm/°C ±30ppm/°C ±350ppm/°C ±400ppm/°C ±40ppm/°C ±440ppm/°C ±500ppm/°C ±50ppm/°C ±55ppm/°C ±5ppm/°C ±60ppm/°C ±75ppm/°C ±90ppm/°C	- -25°C ~ 225°C -25°C ~ 250°C -25°C ~ 85°C -30°C ~ 70°C -40°C -40°C ~ 125°C -40°C ~ 130°C -40°C ~ 140°C -40°C ~ 200°C -40°C ~ 220°C -40°C ~ 300°C -40°C ~ 60°C -50°C ~ 200°C -55°C ~ 110°C -55°C ~ 120°C -55°C ~ 125°C -55°C ~ 130°C -55°C ~ 140°C -55°C ~ 150°C -55°C ~ 155°C -55°C ~ 170°C -55°C ~ 175°C -55°C ~ 200°C -55°C ~ 220°C -55°C ~ 230°C -55°C ~ 250°C -55°C ~ 275°C -55°C ~ 300°C -55°C ~ 350°C -55°C ~ 385°C -55°C ~ 400°C -55°C ~ 415°C -55°C ~ 450°C -55°C ~ 85°C -65°C ~ 180°C 0°C ~ 200°C 0°C ~ 250°C 200°C 250°C 260°C 265°C 275°C 30°C ~ 70°C 320°C 330°C 350°C 375°C	- Automotive AEC-Q200 Automotive AEC-Q200, Non-Inductive Cement Coated, Flame Proof, Moisture Resistant, Safety Current Sense Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety Current Sense, Flame Proof, Pulse Withstanding, Safety Current Sense, Moisture Resistant Current Sense, Non-Inductive Current Sense, Pulse Withstanding Flame Proof, High Voltage, Moisture Resistant, Pulse Withstanding, Safety Flame Proof, Non-Inductive, Pulse Withstanding, Safety Flame Proof, Non-Inductive, Safety Flame Proof, Pulse Withstanding, Safety Flame Proof, Safety Flame Retardant Coating, Moisture Resistant, Safety Flame Retardant Coating, Non-Inductive, Safety Flame Retardant Coating, Safety High Voltage High Voltage, Non-Inductive High Voltage, RF, High Frequency Moisture Resistant Moisture Resistant, Non-Inductive Moisture Resistant, Non-Inductive, Pulse Withstanding Moisture Resistant, Pulse Withstanding Non-Inductive Non-Inductive, Pulse Withstanding Non-Inductive, Pulse Withstanding, High Voltage Non-Inductive, Pulse Withstanding, RF, High Frequency Pulse Withstanding Pulse Withstanding, IP54 Pulse Withstanding, IP65 RF, High Frequency	- Aluminum Aluminum Oxide Ceramic Epoxy Coated Silicon, Vitreous Enamel Coated Silicone Coated Steel Vitreous Enamel Coated	- Brackets Brackets (not included) Brackets, Termination Flange Braces, Right Angle Flanges Screw Holes	- 0.300" L x 0.200" W (7.62mm x 5.08mm) 0.311" Dia x 1.748" L (7.90mm x 44.40mm) 0.313" Dia x 1.000" L (7.94mm x 25.40mm) 0.313" Dia x 1.748" L (7.94mm x 44.40mm) 0.313" Dia x 1.750" L (7.94mm x 44.45mm) 0.313" Dia x 1.750" L (7.95mm x 44.45mm) 0.394" Dia x 2.756" L (10.00mm x 70.00mm) 0.437" Dia x 2.000" L (11.11mm x 50.80mm) 0.453" Dia x 1.339" L (11.50mm x 34.00mm) 0.472" Dia x 2.362" L (12.00mm x 60.00mm) 0.512" Dia x 1.969" L (13.00mm x 50.00mm) 0.512" Dia x 2.047" L (13.00mm x 52.00mm) 0.516" L x 0.250" W (13.10mm x 6.35mm) 0.563" Dia x 2.000" L (14.29mm x 50.80mm) 0.563" Dia x 2.000" L (14.30mm x 50.80mm) 0.563" Dia x 2.008" L (14.30mm x 51.00mm) 0.563" Dia x 4.000" L (14.29mm x 101.60mm) 0.563" Dia x 4.000" L (14.30mm x 101.60mm) 0.563" Dia x 4.016" L (14.30mm x 102.00mm) 0.591" Dia x 1.496" L (15.00mm x 38.00mm) 0.591" Dia x 2.992" L (15.00mm x 76.00mm) 0.591" L x 0.650" W (15.00mm x 16.50mm) 0.594" Dia x 1.500" L (15.10mm x 38.10mm) 0.594" Dia x 2.000" L (15.10mm x 50.80mm) 0.594" Dia x 3.000" L (15.10mm x 76.20mm) 0.598" L x 0.646" W (15.20mm x 16.40mm) 0.600" L x 0.646" W (15.24mm x 16.41mm) 0.626" L x 0.335" W (15.90mm x 8.50mm) 0.626" L x 0.650" W (15.90mm x 16.50mm) 0.630" Dia x 2.756" L (16.00mm x 70.00mm) 0.642" L x 0.646" W (16.30mm x 16.40mm) 0.654" L x 0.354" W (16.60mm x 9.00mm) 0.669" L x 0.669" W (17.00mm x 17.00mm) 0.748" L x 0.433" W (19.00mm x 11.00mm) 0.748" L x 0.787" W (19.00mm x 20.00mm) 0.748" L x 0.799" W (19.00mm x 20.30mm) 0.748" L x 0.811" W (19.00mm x 20.60mm) 0.750" Dia x 2.000" L (19.05mm x 50.80mm) 0.750" Dia x 3.000" L (19.05mm x 76.20mm) 0.750" Dia x 3.500" L (19.05mm x 88.90mm) 0.750" Dia x 4.000" L (19.05mm x 101.60mm) 0.750" Dia x 4.500" L (19.05mm x 114.30mm) 0.750" Dia x 5.000" L (19.05mm x 127.00mm) 0.750" Dia x 6.000" L (19.05mm x 152.40mm) 0.750" Dia x 6.500" L (19.05mm x 165.10mm) 0.750" L x 0.375" W (19.05mm x 9.52mm) 0.750" L x 0.375" W (19.05mm x 9.53mm) 0.750" L x 0.800" W (19.05mm x 20.32mm) 0.750" L x 0.812" W (19.05mm x 20.63mm) 0.752" Dia x 6.496" L (19.10mm x 165.00mm) 0.752" Dia x 6.500" L (19.10mm x 165.10mm) 0.752" L x 0.375" W (19.10mm x 9.53mm) 0.752" L x 0.799" W (19.10mm x 20.30mm) 0.768" Dia x 3.701" L (19.50mm x 94.00mm) 0.770" Dia x 3.000" L (19.56mm x 76.20mm) 0.770" Dia x 4.500" L (19.56mm x 114.30mm) 0.770" Dia x 6.000" L (19.56mm x 152.40mm) 0.770" Dia x 8.000" L (19.56mm x 203.20mm) 0.783" L x 0.440" W (19.90mm x 11.20mm) 0.783" L x 0.827" W (19.90mm x 21.00mm) 0.795" Dia x 4.724" L (20.20mm x 120.00mm) 0.799" Dia x 4.685" L (20.30mm x 119.00mm) 0.800" L x 0.230" W (20.30mm x 5.84mm) 0.825" Dia x 5.050" L (20.96mm x 128.27mm) 0.827" L x 0.827" W (21.00mm x 21.00mm) 0.846" Dia x 5.512" L (21.50mm x 140.00mm) 0.866" Dia x 10.492" L (22.00mm x 266.50mm) 0.866" Dia x 4.764" L (22.00mm x 121.00mm) 0.870" L x 0.375" W (22.10mm x 9.53mm) 0.890" Dia x 4.724" L (22.60mm x 120.00mm) 0.906" Dia x 3.000" L (23.00mm x 76.20mm) 0.906" Dia x 3.996" L (23.00mm x 101.50mm) 0.906" Dia x 4.000" L (23.00mm x 101.60mm) 0.906" Dia x 4.606" L (23.00mm x 117.00mm) 0.975" L x 0.375" W (24.76mm x 9.53mm) 0.975" L x 0.385" W (24.77mm x 9.78mm) 1.000" Dia x 12.000" L (25.40mm x 304.80mm) 1.000" Dia x 18.000" L (25.40mm x 457.20mm) 1.000" Dia x 6.000" L (25.40mm x 152.40mm) 1.000" Dia x 8.000" L (25.40mm x 203.20mm) 1.000" L x 0.375" W (25.40mm x 9.52mm) 1.004" Dia x 6.693" L (25.50mm x 170.00mm) 1.030" L x 0.312" W (26.16mm x 7.93mm) 1.062" L x 1.080" W (26.97mm x 27.43mm) 1.062" L x 1.094" W (26.98mm x 27.79mm) 1.063" L x 1.063" W (27.00mm x 27.00mm) 1.063" L x 1.079" W (27.00mm x 27.40mm) 1.075" L x 0.559" W (27.30mm x 14.20mm) 1.075" L x 1.102" W (27.30mm x 28.00mm) 1.075" L x 1.169" W (27.30mm x 29.70mm) 1.100" L x 0.500" W (27.94mm x 12.70mm) 1.102" Dia x 3.307" L (28.00mm x 84.00mm) 1.102" Dia x 4.016" L (28.00mm x 102.00mm) 1.102" Dia x 4.331" L (28.00mm x 110.00mm) 1.102" Dia x 5.433" L (28.00mm x 138.00mm) 1.102" Dia x 5.984" L (28.00mm x 152.00mm) 1.102" Dia x 6.614" L (28.00mm x 168.00mm) 1.102" Dia x 7.165" L (28.00mm x 182.00mm) 1.102" Dia x 8.504" L (28.00mm x 216.00mm) 1.102" L x 0.551" W (28.00mm x 14.00mm) 1.102" L x 1.083" W (28.00mm x 27.50mm) 1.102" L x 1.102" W (28.00mm x 28.00mm) 1.110" Dia x 4.724" L (28.20mm x 120.00mm) 1.110" Dia x 9.449" L (28.20mm x 240.00mm) 1.125" Dia x 10.500" L (28.58mm x 266.70mm) 1.125" Dia x 11.250" L (28.58mm x 285.75mm) 1.125" Dia x 11.750" L (28.58mm x 298.45mm) 1.125" Dia x 4.000" L (28.58mm x 101.60mm) 1.125" Dia x 4.500" L (28.58mm x 114.30mm) 1.125" Dia x 6.000" L (28.58mm x 152.40mm) 1.125" Dia x 6.125" L (28.58mm x 155.58mm) 1.125" Dia x 6.500" L (28.58mm x 165.10mm) 1.125" Dia x 8.000" L (28.58mm x 203.20mm) 1.125" Dia x 8.500" L (28.58mm x 215.90mm) 1.126" Dia x 10.500" L (28.60mm x 266.70mm) 1.126" Dia x 10.512" L (28.60mm x 267.00mm) 1.126" Dia x 8.500" L (28.60mm x 215.90mm) 1.130" Dia x 10.500" L (28.70mm x 266.70mm) 1.130" Dia x 8.500" L (28.70mm x 215.90mm) 1.137" Dia x 8.500" L (28.88mm x 215.90mm) 1.142" L x 1.102" W (29.00mm x 28.00mm) 1.181" Dia x 10.236" L (30.00mm x 260.00mm) 1.181" Dia x 5.512" L (30.00mm x 140.00mm) 1.205" Dia x 4.724" L (30.60mm x 120.00mm) 1.205" Dia x 9.449" L (30.60mm x 240.00mm) 1.205" Dia x 9.921" L (30.60mm x 252.00mm) 1.250" L x 1.000" W (31.75mm x 25.40mm) 1.250" L x 1.187" W (31.75mm x 30.16mm) 1.252" L x 1.000" W (31.80mm x 25.40mm) 1.260" L x 0.748" W (32.00mm x 19.00mm) 1.299" Dia x 9.843" L (33.00mm x 250.00mm) 1.311" Dia x 10.500" L (33.30mm x 266.70mm) 1.311" Dia x 12.000" L (33.30mm x 304.80mm) 1.311" Dia x 4.000" L (33.30mm x 101.60mm) 1.311" Dia x 6.000" L (33.30mm x 152.40mm) 1.311" Dia x 8.000" L (33.30mm x 203.20mm) 1.375" L x 0.800" W (34.93mm x 20.32mm) 1.378" Dia x 9.843" L (35.00mm x 250.00mm) 1.378" L x 0.669" W (35.00mm x 17.00mm) 1.488" L x 1.000" W (37.80mm x 25.40mm) 1.496" Dia x 1.004" L (38.00mm x 25.50mm) 1.496" L x 0.980" W (38.00mm x 24.90mm) 1.496" L x 0.984" W (38.00mm x 25.00mm) 1.496" L x 1.004" W (38.00mm x 25.50mm) 1.496" L x 1.024" W (38.00mm x 26.00mm) 1.500" Dia x 12.000" L (38.10mm x 304.80mm) 1.500" Dia x 15.690" L (38.10mm x 398.53mm) 1.500" Dia x 18.000" L (38.10mm x 457.20mm) 1.500" Dia x 24.000" L (38.10mm x 609.60mm) 1.500" L x 0.980" W (38.10mm x 24.90mm) 1.504" L x 0.984" W (38.20mm x 25.00mm) 1.516" L x 1.000" W (38.50mm x 25.40mm) 1.535" Dia x 4.331" L (39.00mm x 110.00mm) 1.535" Dia x 5.433" L (39.00mm x 138.00mm) 1.535" Dia x 6.614" L (39.00mm x 168.00mm) 1.575" Dia x 11.102" L (40.00mm x 282.00mm) 1.575" Dia x 13.583" L (40.00mm x 345.00mm) 1.575" Dia x 6.614" L (40.00mm x 168.00mm) 1.575" Dia x 7.677" L (40.00mm x 195.00mm) 1.575" L x 0.276" W (40.01mm x 7.01mm) 1.575" L x 0.787" W (40.00mm x 20.00mm) 1.625" Dia x 10.500" L (41.28mm x 266.70mm) 1.625" Dia x 11.750" L (41.28mm x 298.45mm) 1.625" Dia x 8.500" L (41.28mm x 215.90mm) 1.626" L x 0.285" W (41.30mm x 7.25mm) 1.693" Dia x 11.811" L (43.00mm x 300.00mm) 1.693" Dia x 9.843" L (43.00mm x 250.00mm) 1.732" Dia x 9.843" L (44.00mm x 250.00mm) 1.750" L x 3.260" W (44.45mm x 82.80mm) 1.772" Dia x 14.567" L (45.00mm x 370.00mm) 1.811" Dia x 14.252" L (46.00mm x 362.00mm) 1.875" L x 0.750" W (47.63mm x 19.05mm) 1.882" L x 0.610" W (47.80mm x 15.50mm) 1.882" L x 1.157" W (47.80mm x 29.40mm) 1.882" L x 1.161" W (47.80mm x 29.50mm) 1.900" L x 1.040" W (48.26mm x 26.42mm) 1.917" L x 1.075" W (48.70mm x 27.30mm) 1.917" L x 1.870" W (48.70mm x 47.50mm) 1.929" L x 1.870" W (49.00mm x 47.50mm) 1.929" L x 1.890" W (49.00mm x 48.00mm) 1.933" L x 0.559" W (49.10mm x 14.20mm) 1.933" L x 1.102" W (49.10mm x 28.00mm) 1.933" L x 1.169" W (49.10mm x 29.70mm) 1.938" L x 1.080" W (49.23mm x 27.43mm) 1.938" L x 1.156" W (49.23mm x 29.36mm) 1.968" L x 1.140" W (49.99mm x 28.96mm) 1.969" Dia x 12.441" L (50.00mm x 316.00mm) 1.969" L x 0.843" W (50.00mm x 21.40mm) 1.969" L x 1.142" W (50.00mm x 29.00mm) 1.969" L x 1.157" W (50.00mm x 29.40mm) 1.969" L x 1.890" W (50.00mm x 48.00mm) 1.969" L x 2.953" W (50.00mm x 75.00mm) 10.000" L x 0.252" W (254.00mm x 6.40mm) 10.000" L x 1.500" W (254.00mm x 38.10mm) 10.236" L x 1.437" W (260.00mm x 36.50mm) 10.433" L x 2.362" W (265.00mm x 60.00mm) 10.472" L x 5.000" W (266.00mm x 127.00mm) 10.630" L x 3.110" W (270.00mm x 79.00mm) 11.024" L x 2.008" W (280.00mm x 51.00mm) 11.250" L x 3.000" W (285.75mm x 76.20mm) 11.250" L x 4.000" W (285.75mm x 101.60mm) 11.614" L x 2.362" W (295.00mm x 60.00mm) 11.811" L x 3.110" W (300.00mm x 79.00mm) 11.890" L x 2.185" W (302.00mm x 55.50mm) 12.598" L x 3.740" W (320.00mm x 95.00mm) 12.598" L x 3.937" W (320.00mm x 100.00mm) 12.599" L x 3.429" W (320.00mm x 87.10mm) 12.625" L x 4.000" W (320.68mm x 101.60mm) 12.625" L x 5.000" W (320.68mm x 127.00mm) 12.99" L x 3.15" W (330.00mm x 80.00mm) 12.992" L x 3.150" W (330.00mm x 80.00mm) 13.189" L x 1.181" W (335.00mm x 30.00mm) 13.189" L x 2.362" W (335.00mm x 60.00mm) 13.386" L x 9.843" W (340.00mm x 250.00mm) 14.250" L x 4.000" W (361.95mm x 101.60mm) 14.250" L x 5.000" W (361.95mm x 127.00mm) 14.370" L x 2.362" W (365.00mm x 60.00mm) 15.748" L x 1.969" W (400.00mm x 50.00mm) 15.748" L x 2.362" W (400.00mm x 60.00mm) 15.748" L x 2.402" W (400.00mm x 61.00mm) 15.748" L x 2.638" W (400.00mm x 67.00mm) 15.748" L x 3.937" W (400.00mm x 100.00mm) 15.748" L x 4.055" W (400.00mm x 103.00mm) 16.732" L x 2.362" W (425.00mm x 60.00mm) 17.717" L x 1.969" W (450.00mm x 50.00mm) 17.717" L x 4.055" W (450.00mm x 103.00mm) 17.875" L x 2.313" W (454.02mm x 58.75mm) 19.094" L x 1.969" W (485.00mm x 50.00mm) 19.488" L x 2.638" W (495.00mm x 67.00mm) 2.000" Dia x 18.000" L (50.80mm x 457.20mm) 2.000" Dia x 24.000" L (50.80mm x 609.60mm) 2.000" L x 0.252" W (50.80mm x 6.40mm) 2.000" L x 0.375" W (50.80mm x 9.52mm) 2.000" L x 0.375" W (50.80mm x 9.53mm) 2.000" L x 1.000" W (50.80mm x 25.40mm) 2.000" L x 1.187" W (50.80mm x 30.16mm) 2.000" L x 1.248" W (50.80mm x 31.70mm) 2.000" L x 1.250" W (50.80mm x 31.70mm) 2.000" L x 1.252" W (50.80mm x 31.80mm) 2.000" L x 1.500" W (50.80mm x 38.10mm) 2.008" Dia x 14.764" L (51.00mm x 375.00mm) 2.008" L x 1.181" W (51.00mm x 30.00mm) 2.087" Dia x 14.685" L (53.00mm x 373.00mm) 2.126" Dia x 14.252" L (54.00mm x 362.00mm) 2.165" L x 0.591" W (55.00mm x 15.00mm) 2.264" L x 2.028" W (57.50mm x 51.50mm) 2.283" L x 2.362" W (58.00mm x 60.00mm) 2.362" Dia x 11.811" L (60.00mm x 300.00mm) 2.362" Dia x 16.339" L (60.00mm x 415.00mm) 2.362" Dia x 20.079" L (60.00mm x 510.00mm) 2.362" Dia x 23.622" L (60.00mm x 600.00mm) 2.362" L x 0.571" W (60.00mm x 14.50mm) 2.362" L x 2.244" W (60.00mm x 57.00mm) 2.362" L x 2.362" W (60.00mm x 60.00mm) 2.362" L x 2.638" W (60.00mm x 67.00mm) 2.402" L x 1.614" W (61.00mm x 41.00mm) 2.480" L x 0.492" W (63.00mm x 12.50mm) 2.500" Dia x 12.000" L (63.50mm x 304.80mm) 2.500" Dia x 15.000" L (63.50mm x 381.00mm) 2.500" Dia x 20.000" L (63.50mm x 508.00mm) 2.559" L x 2.362" W (65.00mm x 60.00mm) 2.560" L x 2.362" W (65.00mm x 60.00mm) 2.563" L x 0.750" W (65.10mm x 19.05mm) 2.563" L x 0.875" W (65.10mm x 22.23mm) 2.566" L x 1.075" W (65.20mm x 27.30mm) 2.567" L x 1.075" W (65.20mm x 27.30mm) 2.567" L x 1.839" W (65.20mm x 46.70mm) 2.567" L x 1.870" W (65.20mm x 47.50mm) 2.575" L x 0.689" W (65.40mm x 17.50mm) 2.579" L x 1.870" W (65.50mm x 47.50mm) 2.598" L x 1.575" W (66.00mm x 40.00mm) 2.598" L x 1.850" W (66.00mm x 47.00mm) 2.598" L x 1.890" W (66.00mm x 48.00mm) 2.616" L x 2.264" W (66.45mm x 57.50mm) 2.638" L x 2.362" W (67.00mm x 60.00mm) 2.638" L x 2.372" W (67.00mm x 60.25mm) 2.756" L x 0.496" W (70.00mm x 12.60mm) 2.756" L x 2.008" W (70.00mm x 51.00mm) 2.756" L x 2.165" W (70.00mm x 55.00mm) 2.756" L x 2.362" W (70.00mm x 60.00mm) 2.756" L x 2.402" W (70.00mm x 61.00mm) 2.874" L x 2.362" W (73.00mm x 60.00mm) 2.913" L x 0.748" W (74.00mm x 19.00mm) 2.953" L x 0.748" W (75.00mm x 19.00mm) 20.669" L x 2.362" W (525.00mm x 60.00mm) 21.654" L x 4.055" W (550.00mm x 103.00mm) 24.606" L x 2.362" W (625.00mm x 60.00mm) 28.543" L x 2.362" W (725.00mm x 60.00mm) 3.000" L x 0.252" W (76.20mm x 6.40mm) 3.000" L x 1.500" W (76.20mm x 38.10mm) 3.000" L x 3.000" W (76.20mm x 76.20mm) 3.130" L x 0.500" W (79.50mm x 12.70mm) 3.130" L x 0.752" W (79.50mm x 19.10mm) 3.150" L x 2.992" W (80.00mm x 76.00mm) 3.150" L x 3.110" W (80.00mm x 79.00mm) 3.250" L x 1.750" W (82.55mm x 44.45mm) 3.252" L x 1.752" W (82.60mm x 44.50mm) 3.346" L x 0.709" W (85.00mm x 18.00mm) 3.375" L x 0.750" W (85.73mm x 19.05mm) 3.465" L x 1.012" W (88.00mm x 25.70mm) 3.500" L x 1.000" W (88.90mm x 25.40mm) 3.500" L x 1.187" W (88.90mm x 30.16mm) 3.500" L x 2.812" W (88.90mm x 71.42mm) 3.504" L x 2.756" W (89.00mm x 70.00mm) 3.531" L x 1.791" W (89.70mm x 45.50mm) 3.531" L x 2.854" W (89.70mm x 72.50mm) 3.543" L x 0.709" W (90.00mm x 18.00mm) 3.543" L x 0.748" W (90.00mm x 19.00mm) 3.543" L x 1.063" W (90.00mm x 27.00mm) 3.543" L x 1.437" W (90.00mm x 36.50mm) 3.543" L x 2.874" W (90.00mm x 73.00mm) 3.543" L x 3.150" W (90.00mm x 80.00mm) 3.620" L x 1.000" W (91.95mm x 25.40mm) 3.688" L x 0.750" W (93.68mm x 19.05mm) 3.750" L x 1.000" W (95.25mm x 25.40mm) 3.846" L x 1.075" W (97.70mm x 27.30mm) 3.846" L x 1.870" W (97.70mm x 47.50mm) 3.858" L x 1.870" W (98.00mm x 47.50mm) 3.858" L x 1.890" W (98.00mm x 48.00mm) 3.898" L x 0.709" W (99.00mm x 18.00mm) 3.937" L x 0.827" W (100.00mm x 21.00mm) 3.937" L x 0.866" W (100.00mm x 22.00mm) 3.937" L x 1.614" W (100.00mm x 41.00mm) 3.937" L x 2.362" W (100.00mm x 60.00mm) 3.937" L x 2.953" W (100.00mm x 75.00mm) 4.000" L x 0.252" W (101.60mm x 6.40mm) 4.000" L x 1.500" W (101.60mm x 38.10mm) 4.055" L x 0.866" W (103.00mm x 22.00mm) 4.094" L x 0.866" W (104.00mm x 22.00mm) 4.094" L x 1.012" W (104.00mm x 25.70mm) 4.125" L x 0.625" W (104.78mm x 15.88mm) 4.125" L x 0.750" W (104.78mm x 19.05mm) 4.125" L x 0.813" W (104.78mm x 20.64mm) 4.125" L x 0.937" W (104.78mm x 23.81mm) 4.125" L x 1.063" W (104.78mm x 26.99mm) 4.125" L x 1.250" W (104.78mm x 31.75mm) 4.134" L x 1.437" W (105.00mm x 36.50mm) 4.291" L x 2.874" W (109.00mm x 73.00mm) 4.319" L x 1.791" W (109.70mm x 45.50mm) 4.319" L x 2.854" W (109.70mm x 72.50mm) 4.331" L x 2.874" W (110.00mm x 73.00mm) 4.331" L x 2.992" W (110.00mm x 76.00mm) 4.331" L x 3.110" W (110.00mm x 79.00mm) 4.331" L x 3.740" W (110.00mm x 95.00mm) 4.370" L x 0.827" W (111.00mm x 21.00mm) 4.449" L x 0.894" W (113.00mm x 22.70mm) 4.488" L x 2.835" W (114.00mm x 72.00mm) 4.488" L x 3.032" W (114.00mm x 77.00mm) 4.498" L x 3.032" W (114.00mm x 77.00mm) 4.500" L x 0.500" W (114.30mm x 12.70mm) 4.500" L x 0.750" W (114.30mm x 19.05mm) 4.500" L x 1.000" W (114.30mm x 25.40mm) 4.500" L x 1.250" W (114.30mm x 31.75mm) 4.500" L x 2.500" W (114.30mm x 63.50mm) 4.500" L x 3.000" W (114.30mm x 76.20mm) 4.528" L x 1.575" W (115.00mm x 40.00mm) 4.563" L x 0.750" W (115.90mm x 19.05mm) 4.567" L x 0.866" W (116.00mm x 22.00mm) 4.625" L x 0.937" W (117.48mm x 23.81mm) 4.625" L x 1.000" W (117.48mm x 25.40mm) 4.625" L x 1.250" W (117.48mm x 31.75mm) 4.625" L x 1.500" W (117.48mm x 38.10mm) 4.724" L x 0.866" W (120.00mm x 22.00mm) 4.724" L x 0.984" W (120.00mm x 25.00mm) 4.724" L x 3.150" W (120.00mm x 80.00mm) 4.803" L x 1.012" W (122.00mm x 25.70mm) 4.921" L x 0.866" W (125.00mm x 22.00mm) 4.921" L x 1.496" W (125.00mm x 38.00mm) 4.961" L x 1.811" W (126.00mm x 46.00mm) 4035" L x 0.866" W (102.50mm x 22.00mm) 5.000" L x 2.811" W (127.00mm x 71.40mm) 5.027" L x 1.791" W (127.70mm x 45.50mm) 5.028" L x 1.791" W (127.70mm x 45.50mm) 5.028" L x 2.854" W (127.70mm x 72.50mm) 5.039" L x 2.874" W (128.00mm x 73.00mm) 5.079" L x 1.181" W (129.00mm x 30.00mm) 5.118" L x 2.874" W (130.00mm x 73.00mm) 5.472" L x 1.949" W (139.00mm x 49.50mm) 5.512" L x 1.575" W (140.00mm x 40.00mm) 5.512" L x 2.008" W (140.00mm x 51.00mm) 5.563" L x 0.750" W (141.30mm x 19.05mm) 5.787" L x 2.874" W (147.00mm x 73.00mm) 5.875" L x 1.750" W (149.23mm x 44.45mm) 5.875" L x 2.000" W (149.23mm x 50.80mm) 5.875" L x 2.250" W (149.23mm x 57.15mm) 5.875" L x 2.375" W (149.23mm x 60.33mm) 5.875" L x 2.500" W (149.23mm x 63.50mm) 5.875" L x 2.875" W (149.23mm x 73.03mm) 5.886" L x 2.500" W (149.50mm x 63.50mm) 5.906" L x 1.181" W (150.00mm x 30.00mm) 5.906" L x 3.150" W (150.00mm x 80.00mm) 6.000" L x 0.252" W (152.40mm x 6.40mm) 6.000" L x 1.000" W (152.40mm x 25.40mm) 6.000" L x 1.187" W (152.40mm x 30.16mm) 6.000" L x 1.250" W (152.40mm x 31.75mm) 6.000" L x 1.500" W (152.40mm x 38.10mm) 6.102" L x 1.437" W (155.00mm x 36.50mm) 6.299" L x 3.740" W (160.00mm x 95.00mm) 6.417" L x 3.110" W (163.00mm x 79.00mm) 6.496" L x 0.866" W (165.00mm x 22.00mm) 6.496" L x 1.181" W (165.00mm x 30.00mm) 6.496" L x 1.575" W (165.00mm x 40.00mm) 6.496" L x 1.614" W (165.00mm x 41.00mm) 6.496" L x 2.362" W (165.00mm x 60.00mm) 6.535" L x 2.874" W (166.00mm x 73.00mm) 6.535" L x 2.992" W (166.00mm x 76.00mm) 6.693" L x 1.575" W (170.00mm x 40.00mm) 6.693" L x 2.362" W (170.00mm x 60.00mm) 6.890" L x 2.362" W (175.00mm x 60.00mm) 7.000" L x 1.750" W (177.80mm x 44.45mm) 7.000" L x 2.000" W (177.80mm x 50.80mm) 7.000" L x 2.250" W (177.80mm x 57.15mm) 7.000" L x 2.375" W (177.80mm x 60.33mm) 7.000" L x 2.500" W (177.80mm x 63.50mm) 7.000" L x 2.875" W (177.80mm x 73.03mm) 7.087" L x 3.150" W (180.00mm x 80.00mm) 7.165" L x 0.866" W (182.00mm x 22.00mm) 7.165" L x 1.614" W (182.00mm x 41.00mm) 7.165" L x 2.185" W (182.00mm x 55.50mm) 7.283" L x 2.874" W (185.00mm x 73.00mm) 7.480" L x 1.575" W (190.00mm x 40.00mm) 7.874" L x 1.437" W (200.00mm x 36.50mm) 8.000" L x 0.252" W (203.20mm x 6.40mm) 8.000" L x 1.500" W (203.20mm x 38.10mm) 8.031" L x 2.874" W (204.00mm x 73.00mm) 8.268" L x 1.614" W (210.00mm x 41.00mm) 8.268" L x 2.008" W (210.00mm x 51.00mm) 8.268" L x 3.150" W (210.00mm x 80.00mm) 8.278" L x 3.150" W (210.00mm x 80.00mm) 8.465" L x 1.181" W (215.00mm x 30.00mm) 8.465" L x 1.575" W (215.00mm x 40.00mm) 8.465" L x 2.362" W (215.00mm x 60.00mm) 8.504" L x 2.992" W (216.00mm x 76.00mm) 8.504" L x 3.110" W (216.00mm x 79.00mm) 8.661" L x 3.740" W (220.00mm x 95.00mm) 8.858" L x 2.362" W (225.00mm x 60.00mm) 9.528" L x 2.185" W (242.00mm x 55.50mm) 9.606" L x 3.917" W (244.00mm x 99.50mm) 9.625" L x 3.000" W (244.48mm x 76.20mm) 9.625" L x 4.000" W (244.48mm x 101.60mm)	- 0.039" (1.00mm) 0.079" (2.00mm) 0.140" (3.56mm) 0.146" (3.70mm) 0.150" (3.81mm) 0.197" (5.00mm) 0.200" (5.08mm) 0.205" (5.20mm) 0.210" (5.33mm) 0.225" (5.72mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.248" (6.30mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.281" (7.14mm) 0.330" (8.38mm) 0.335" (8.50mm) 0.335" (8.51mm) 0.343" (8.71mm) 0.346" (8.80mm) 0.350" (8.90mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.366" (9.30mm) 0.375" (9.53mm) 0.390" (9.91mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.405" (10.29mm) 0.406" (10.32mm) 0.413" (10.50mm) 0.417" (10.60mm) 0.421" (10.70mm) 0.429" (10.90mm) 0.433" (11.00mm) 0.450" (11.43mm) 0.472" (12.00mm) 0.476" (12.10mm) 0.480" (12.20mm) 0.483" (12.26mm) 0.484" (12.30mm) 0.488" (12.40mm) 0.492" (12.50mm) 0.496" (12.60mm) 0.500" (12.70mm) 0.508" (12.90mm) 0.530" (13.46mm) 0.531" (13.49mm) 0.531" (13.50mm) 0.532" (13.50mm) 0.546" (13.87mm) 0.556" (14.12mm) 0.561" (14.25mm) 0.563" (14.29mm) 0.571" (14.50mm) 0.575" (14.60mm) 0.577" (14.66mm) 0.583" (14.80mm) 0.587" (14.90mm) 0.591" (15.00mm) 0.594" (15.08mm) 0.602" (15.30mm) 0.618" (15.70mm) 0.620" (15.75mm) 0.625" (15.87mm) 0.625" (15.88mm) 0.630" (16.00mm) 0.641" (16.28mm) 0.646" (16.40mm) 0.650" (16.50mm) 0.669" (17.00mm) 0.728" (18.50mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.780" (19.81mm) 0.787" (20.00mm) 0.803" (20.40mm) 0.815" (20.70mm) 0.827" (21.00mm) 0.846" (21.50mm) 0.860" (21.85mm) 0.866" (22.00mm) 0.886" (22.50mm) 0.894" (22.70mm) 0.906" (23.00mm) 0.925" (23.50mm) 0.945" (24.00mm) 0.949" (24.10mm) 0.984" (25.00mm) 0.996" (25.30mm) 1.004" (25.50mm) 1.008" (25.60mm) 1.024" (26.00mm) 1.030" (26.16mm) 1.055" (26.80mm) 1.063" (27.00mm) 1.102" (28.00mm) 1.122" (28.50mm) 1.142" (29.00mm) 1.181" (30.00mm) 1.201" (30.50mm) 1.220" (31.00mm) 1.260" (32.00mm) 1.280" (32.50mm) 1.380" (35.05mm) 1.417" (36.00mm) 1.476" (37.50mm) 1.500" (38.10mm) 1.530" (38.86mm) 1.535" (39.00mm) 1.548" (39.31mm) 1.587" (40.30mm) 1.594" (40.50mm) 1.614" (41.00mm) 1.630" (41.40mm) 1.634" (41.50mm) 1.646" (41.80mm) 1.650" (41.90mm) 1.654" (42.00mm) 1.680" (42.70mm) 1.693" (43.00mm) 1.700" (43.18mm) 1.701" (43.20mm) 1.720" (43.70mm) 1.750" (44.45mm) 1.772" (45.00mm) 1.781" (45.24mm) 1.791" (45.50mm) 1.795" (45.60mm) 1.813" (46.04mm) 1.969" (50.00mm) 2.008" (51.00mm) 2.030" (51.56mm) 2.087" (53.00mm) 2.098" (53.30mm) 2.130" (54.10mm) 2.150" (54.60mm) 2.160" (54.90mm) 2.219" (56.37mm) 2.224" (56.50mm) 2.323" (59.00mm) 2.382" (60.50mm) 2.520" (64.00mm) 3.030" (76.96mm) 3.307" (84.00mm) 4.030" (102.36mm) 4.094" (104.00mm) 4.213" (107.00mm) 4.587" (116.50mm) 5.030" (127.76mm) 5.177" (131.50mm) 6.555" (166.50mm)	#10-32 Threaded - 2-Terminal 4-Terminal Combo Leads Ferrule Ends Ferrule Ends (Ferrule Ends, M5 Thread) M3 Threaded M3 Threaded; M10 Threaded M3 Threaded; M6 Threaded M3 Threaded; M8 Threaded M4 Threaded M5 Threaded M6 Threaded Quick Connects Quick Connects, 0.188" (4.78mm) Quick Connects, 0.228" (5.80mm) Quick Connects, 0.250" (6.35mm) Solder Lugs Tab Terminal Screw Type Threaded Wire Leads	- M (1%) P (0.1%) R (0.01%)	- Automotive Military	- AEC-Q200 MIL-PRF-26 MIL-PRF-39009

Reset All

Apply All

Result:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Resistance	Tolerance	Power (Watts)	Composition	Temperature Coefficient	Operating Temperature	Features	Coating, Housing Type	Mounting Feature	Size / Dimension	Height - Seated (Max)	Lead Style	Failure Rate	Grade	Qualification

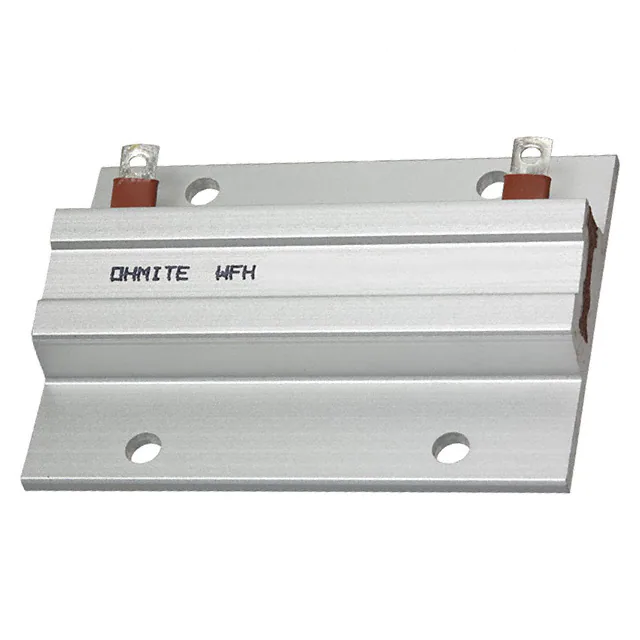

WFH160L5K0JE RES CHAS MNT 5K OHM 5% 160W Ohmite	160,511	-	RFQ	Datasheet	WFH	Radial, Rectangular Case	Bulk	Active	5 kOhms	±5%	160W	Wirewound	-	-40°C ~ 220°C	-	Aluminum	Flanges	5.512" L x 2.008" W (140.00mm x 51.00mm)	0.496" (12.60mm)	Solder Lugs	-	-	-
WFH330L150JE RES CHAS MNT 150 OHM 5% 330W Ohmite	113,723	-	RFQ	Datasheet	WFH	Radial, Rectangular Case	Bulk	Active	150 Ohms	±5%	330W	Wirewound	-	-40°C ~ 220°C	-	Aluminum	Flanges	11.024" L x 2.008" W (280.00mm x 51.00mm)	0.496" (12.60mm)	Solder Lugs	-	-	-
850FR15 RES CHAS MNT 0.15 OHM 1% 50W Ohmite	187,081	-	RFQ	Datasheet	Metal-Mite®89	Axial, Box	Bulk	Obsolete	150 mOhms	±1%	50W	Wirewound	±90ppm/°C	-55°C ~ 275°C	-	Aluminum	Flanges	1.938" L x 1.156" W (49.23mm x 29.36mm)	0.620" (15.75mm)	Solder Lugs	-	-	-
HPK600K2R RES CHAS MNT 2 OHM 10% 600W Vishay Huntington Electric Inc.	194,236	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	2 Ohms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K3R RES CHAS MNT 3 OHM 10% 600W Vishay Huntington Electric Inc.	109,936	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	3 Ohms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K4R RES CHAS MNT 4 OHM 10% 600W Vishay Huntington Electric Inc.	166,976	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	4 Ohms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K5R RES CHAS MNT 5 OHM 10% 600W Vishay Huntington Electric Inc.	105,067	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	5 Ohms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K10R RES CHAS MNT 10 OHM 10% 600W Vishay Huntington Electric Inc.	124,409	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	10 Ohms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K50R RES CHAS MNT 50 OHM 10% 600W Vishay Huntington Electric Inc.	106,844	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	50 Ohms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K100R RES CHAS MNT 100 OHM 10% 600W Vishay Huntington Electric Inc.	160,996	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	100 Ohms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K500R RES CHAS MNT 500 OHM 10% 600W Vishay Huntington Electric Inc.	184,447	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	500 Ohms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K1000R RES CHAS MNT 1K OHM 10% 600W Vishay Huntington Electric Inc.	139,243	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	1 kOhms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K5000R RES CHAS MNT 5K OHM 10% 600W Vishay Huntington Electric Inc.	142,879	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	5 kOhms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-
HPK600K10000R RES CHAS MNT 10K OHM 10% 600W Vishay Huntington Electric Inc.	196,664	-	RFQ	Datasheet	HPK600	Box	Bulk	Obsolete	10 kOhms	±10%	600W	Wirewound	±150ppm/°C	-55°C ~ 150°C	-	Epoxy Coated	Flanges	2.560" L x 2.362" W (65.00mm x 60.00mm)	1.280" (32.50mm)	M4 Threaded	-	-	-

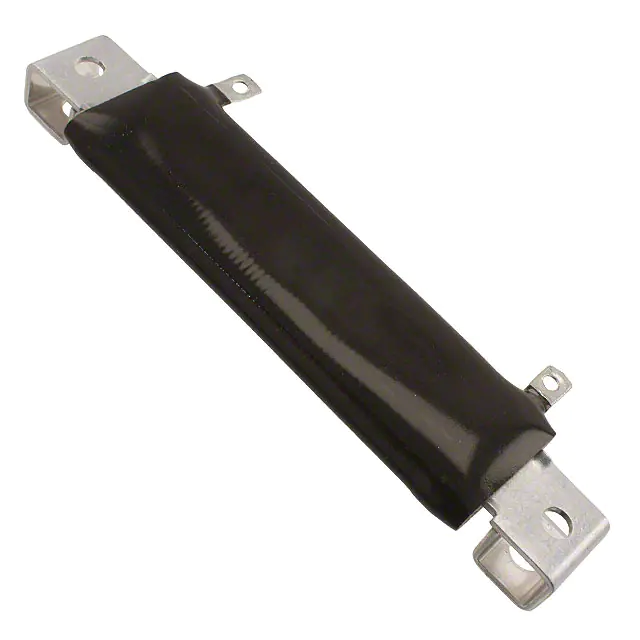

F30J50RE RES CHAS MNT 50 OHM 5% 30W Ohmite	154,680	-	RFQ	Datasheet	Stackohm® 250	Radial, Flat Oval	Bulk	Active	50 Ohms	±5%	30W	Wirewound	±260ppm/°C	-55°C ~ 350°C	-	Vitreous Enamel Coated	Flange Braces, Right Angle	1.250" L x 1.000" W (31.75mm x 25.40mm)	0.563" (14.29mm)	Solder Lugs	-	-	-
F55J250E RES CHAS MNT 250 OHM 5% 55W Ohmite	183,411	-	RFQ	Datasheet	Stackohm® 250	Radial, Flat Oval	Bulk	Active	250 Ohms	±5%	55W	Wirewound	±260ppm/°C	-55°C ~ 350°C	-	Vitreous Enamel Coated	Flange Braces, Right Angle	3.500" L x 1.000" W (88.90mm x 25.40mm)	0.563" (14.29mm)	Solder Lugs	-	-	-
C300KR10E RES CHAS MNT 0.1 OHM 10% 300W Ohmite	153,015	-	RFQ	Datasheet	Corrib®280	Radial, Tubular	Bulk	Active	100 mOhms	±10%	300W	Wirewound	±400ppm/°C	-55°C ~ 400°C	-	Vitreous Enamel Coated	Brackets (not included)	1.125" Dia x 8.500" L (28.58mm x 215.90mm)	-	Solder Lugs	-	-	-
C300K1R2E RES CHAS MNT 1.2 OHM 10% 300W Ohmite	114,842	-	RFQ	Datasheet	Corrib®280	Radial, Tubular	Bulk	Active	1.2 Ohms	±10%	300W	Wirewound	±400ppm/°C	-55°C ~ 400°C	-	Vitreous Enamel Coated	Brackets (not included)	1.125" Dia x 8.500" L (28.58mm x 215.90mm)	-	Solder Lugs	-	-	-
C300K4R0E RES CHAS MNT 4 OHM 10% 300W Ohmite	115,164	-	RFQ	Datasheet	Corrib®280	Radial, Tubular	Bulk	Active	4 Ohms	±10%	300W	Wirewound	±400ppm/°C	-55°C ~ 400°C	-	Vitreous Enamel Coated	Brackets (not included)	1.125" Dia x 8.500" L (28.58mm x 215.90mm)	-	Solder Lugs	-	-	-
C300K16RE RES CHAS MNT 16 OHM 10% 300W Ohmite	131,297	-	RFQ	Datasheet	Corrib®280	Radial, Tubular	Bulk	Active	16 Ohms	±10%	300W	Wirewound	±400ppm/°C	-55°C ~ 400°C	-	Vitreous Enamel Coated	Brackets (not included)	1.125" Dia x 8.500" L (28.58mm x 215.90mm)	-	Solder Lugs	-	-	-

Total 25658 Record«Prev 1... 1219 1220 1221 122212231224 1225 1226...1283 Next»
