DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GDH08SATR04SWITCH SLIDE DIP SPST 0.025A 24V |
2,050 |
|
Datasheet |
 |
GDH | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
220ADC10SWITCH ROTARY DIP BCD 0.1A 50V |
1,092 |
|
Datasheet |
|
220 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
1-1825006-7SWITCH STANDARD DIP SPST |
2,056 |
|
Datasheet |
|
GDS | Bulk | Active | SPST | 10 | - | - | Standard | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
220AMA04RSWITCH ROTARY DIP SP4T 0.1A 50V |
1,232 |
|
Datasheet |
|
220 | Tape & Reel (TR) | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.150" (3.81mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6SR-6101SWITCH PIANO DIP SPST 0.025A 24V |
213 |
|
Datasheet |
|
A6SR | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
220AMC16RSWITCH ROTARY DIP HEX 0.1A 50V |
1,138 |
|
Datasheet |
|
220 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
221AMA10RSWITCH ROTARY DIP BCD 0.1A 50V |
25,212 |
|
Datasheet |
|
221 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
GDH08SA04SWITCH SLIDE DIP SPST 0.025A 24V |
2,130 |
|
Datasheet |
|
GDH | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
1977830-4DIP SWITCH GDH08SA04 |
19,178 |
|
Datasheet |
|
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5435802-9SWITCH PIANO DIP SPST 0.025A 24V |
4,564 |
|
Datasheet |
|
7000 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
CRE10ROTM1CSWITCH ROTARY DIP BCD 0.15A 42V |
89 |
|
Datasheet |
|
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
221ADC16SWITCH ROTARY DIP HEX 0.1A 50V |
2,945 |
|
Datasheet |
|
221 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.470" (11.94mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

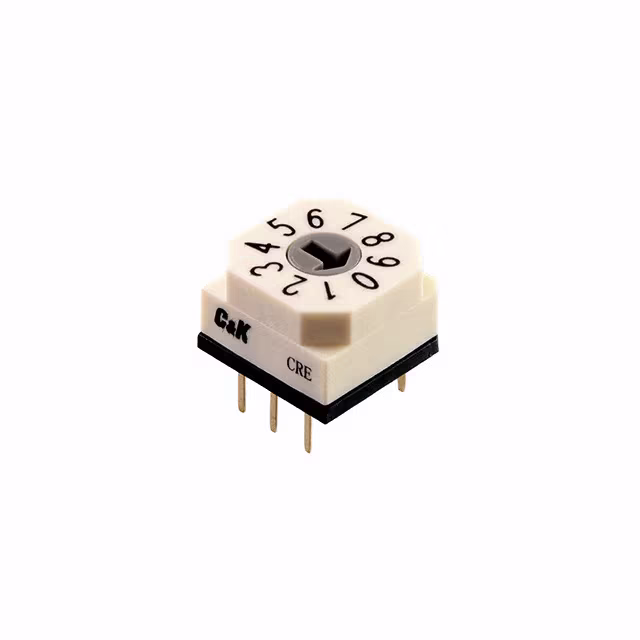

CRE10ROTM0CSWITCH ROTARY DIP BCD 0.15A 42V |
74 |
|
Datasheet |
|
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

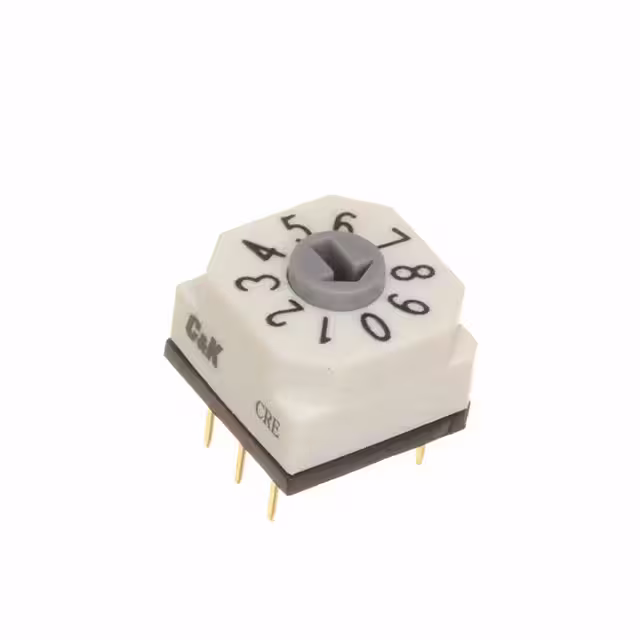

CRE10ROTP0CSWITCH ROTARY DIP BCD 0.15A 42V |
47 |
|
Datasheet |
|
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Raised | Brass | Gold | 0.370" (9.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
221AMA16RSWITCH ROTARY DIP HEX 0.1A 50V |
2,888 |
|
Datasheet |
|
221 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RA8CVATSW ROTARY DIP OCT COMP 0.15A 50V |
200 |
|
Datasheet |
|
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
221AMC16RSWITCH ROTARY DIP HEX 0.1A 50V |
1,400 |
|
Datasheet |
|
221 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.470" (11.94mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

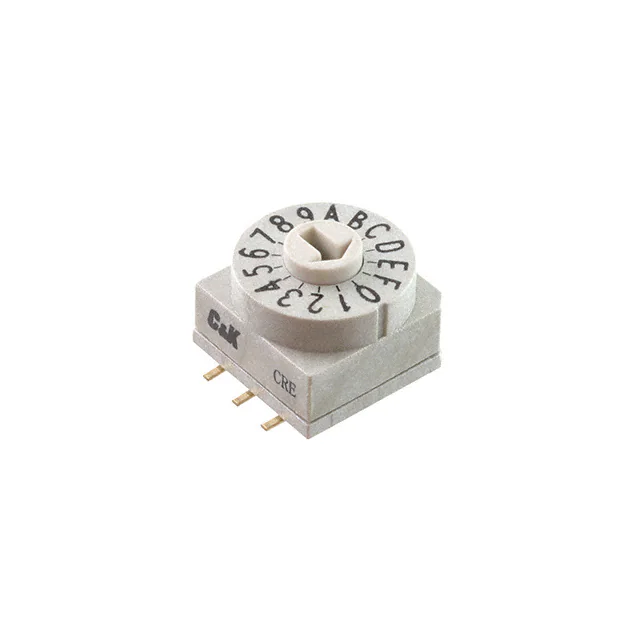

CRE16RRDP0SSWITCH ROTARY DIP HEX 0.15A 42V |
64 |
|
Datasheet |
|
CRE | Bulk | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Raised | Brass | Gold | 0.307" (7.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6HR-2104SWITCH PIANO DIP SPST 0.025A 24V |
2,482 |
|
Datasheet |
|
A6HR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
5435166-2SWITCH ROCKER DIP SPST |
4,017 |
|
Datasheet |
|
7000 | Tape & Reel (TR) | Active | SPST | 4 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
