DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHS-01TA2SWITCH SLIDE DIP SPST 0.1A 6V |
3,708 |
|
- |
 |
CHS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
206-2RASSWITCH SLIDE DIP SPST 0.05A 24V |
4,091 |
|
Datasheet |
|
206RA | Tube | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
206-6ESWITCH SLIDE DIP SPST 0.05A 24V |
4,334 |
|
Datasheet |
|
206 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

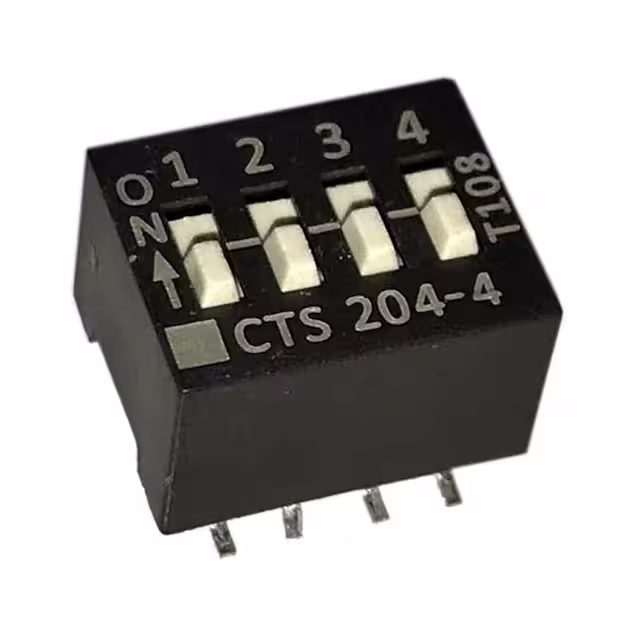

204-4SSWITCH SLIDE DIP SPST 0.05A 24V |
4,395 |
|
Datasheet |
|
204 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
206-212SWITCH SLIDE DIP DPST 0.05A 24V |
3,972 |
|
Datasheet |
|
206 | Tube | Active | DPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-3RASWITCH SLIDE DIP SPST 0.05A 24V |
4,677 |
|
Datasheet |
|
206RA | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
218-2LPSJRSWITCH SLIDE DIP SPST 0.025A 24V |
3,471 |
|
Datasheet |
|
218 | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-2LPSJRFSWITCH SLIDE DIP SPST 0.025A 24V |
4,321 |
|
Datasheet |
|
218 | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

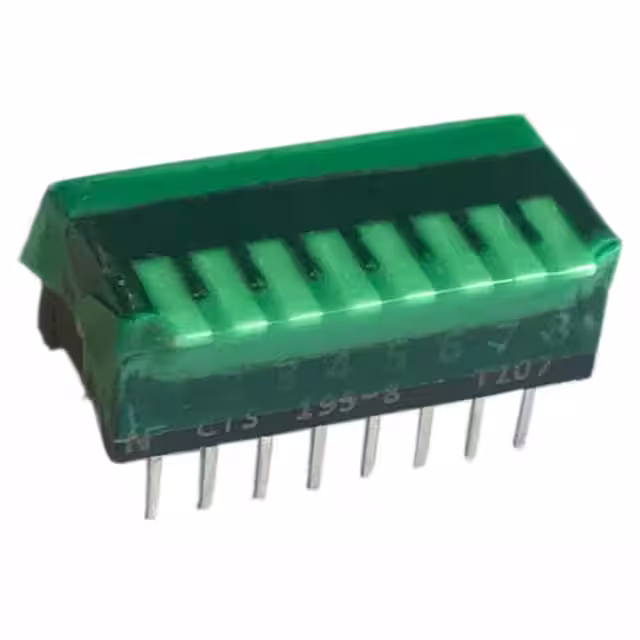

195-8MSSWITCH PIANO DIP SPST 0.05A 24V |
3,195 |
|
Datasheet |
|
195 | Tube | Active | SPST | 8 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
195-8MSNSWITCH PIANO DIP SPST 0.05A 24V |
4,010 |
|
Datasheet |
|
195 | Tube | Active | SPST | 8 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
KT05RTHSWITCH SLIDE DIP SPST 0.025A 24V |
2,468 |
|
Datasheet |
|
KT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT05ETHSWITCH SLIDE DIP SPST 0.025A 24V |
4,308 |
|
Datasheet |
|
KT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
219-6ESJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,136 |
|
Datasheet |
|
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
219-6ESJRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,754 |
|
Datasheet |
|
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

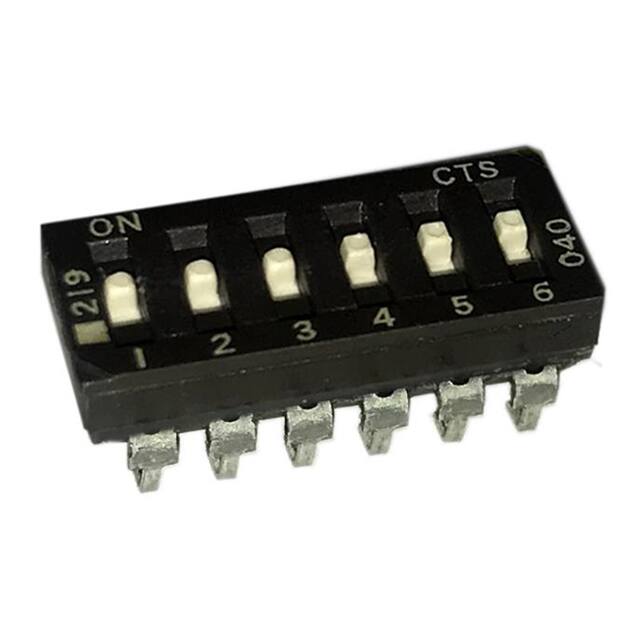

219-6LPSJRSWITCH SLIDE DIP SPST 0.1A 20V |
4,364 |
|
Datasheet |
|
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

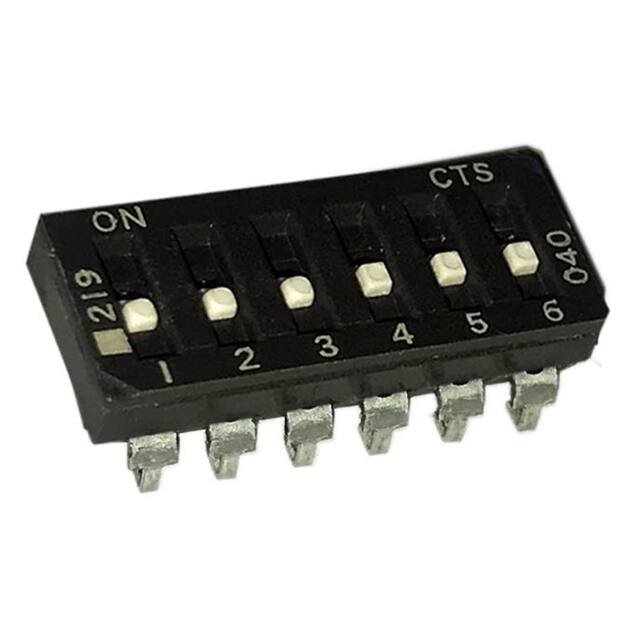

219-6LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,559 |
|
Datasheet |
|
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

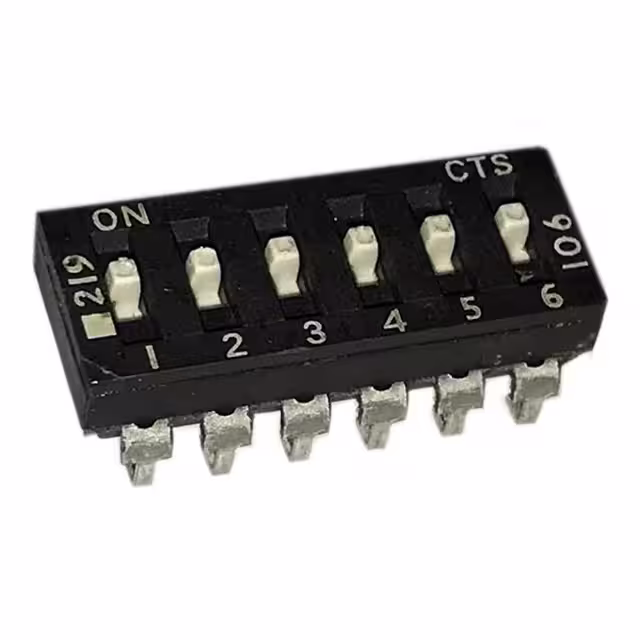

219-6MSJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,699 |
|
Datasheet |
|
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-6MSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,823 |
|
Datasheet |
|
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
KT06RTHSWITCH SLIDE DIP SPST 0.025A 24V |
4,013 |
|
Datasheet |
|
KT | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT06ETHSWITCH SLIDE DIP SPST 0.025A 24V |
3,599 |
|
Datasheet |
|
KT | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
