DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
218-8LPSJRSWITCH SLIDE DIP SPST 0.025A 24V |
4,428 |
|
Datasheet |
 |
218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-8LPSJRFSWITCH SLIDE DIP SPST 0.025A 24V |
4,055 |
|
Datasheet |
|
218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
97C08SRSWITCH SLIDE DIP SPST 0.025A 24V |
4,991 |
|
Datasheet |
|
97 | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
97R08SRSWITCH SLIDE DIP SPST 0.025A 24V |
4,791 |
|
Datasheet |
|
97 | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
206-123RASWITCH SLIDE DIP SPDT 0.05A 24V |
3,982 |
|
Datasheet |
|
206RA | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

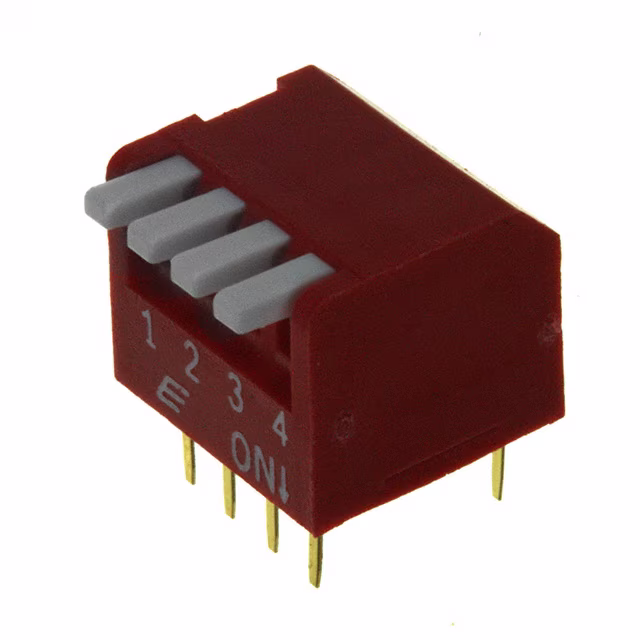

KAP1104ESWITCH PIANO DIP SPST 0.025A 24V |
3,535 |
|
Datasheet |
|
KAP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADF03TSWITCH SLIDE DIP SPST 0.025A 24V |
3,728 |
|
Datasheet |
|
ADF | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADF02SSWITCH SLIDE DIP SPST 0.025A 24V |
3,037 |
|
Datasheet |
|
ADF | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
CJS-1201A2SWITCH SLIDE SPDT 0.1A 6V |
4,999 |
|
- |
|
CJS | Bulk | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
|
CJS-1201B2SWITCH SLIDE SPDT 0.1A 6V |
4,885 |
|
- |
|
CJS | Bulk | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
KJ07RTRSWITCH SLIDE DIP SPST 0.025A 24V |
4,428 |
|
Datasheet |
|
KJ | Tape & Reel (TR) | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KJ08RXTSWITCH SLIDE DIP SPST 0.025A 24V |
2,489 |
|
Datasheet |
|
KJ | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP08RTSWITCH PIANO DIP SPST 0.025A 24V |
3,155 |
|
Datasheet |
|
KP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KJ08EXTSWITCH SLIDE DIP SPST 0.025A 24V |
3,310 |
|
Datasheet |
|
KJ | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP08ETSWITCH PIANO DIP SPST 0.025A 24V |
2,086 |
|
Datasheet |
|
KP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
206-213RASSWITCH SLIDE DIP DPST 0.05A 24V |
4,497 |
|
Datasheet |
|
206RA | Tube | Active | DPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
KAR06LHGTSWITCH PIANO DIP SPST 0.025A 24V |
2,230 |
|
Datasheet |
|
KAR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.293" (7.45mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
204-12SSWITCH SLIDE DIP SPST 0.05A 24V |
4,654 |
|
Datasheet |
|
204 | Tube | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KAE06TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
2,584 |
|
Datasheet |
|
KAE | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KAJ09TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
2,956 |
|
Datasheet |
|
KAJ | Tape & Reel (TR) | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
