DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMR12TTRSWITCH SLIDE DIP SPST 0.025A 24V |
2,535 |
|
Datasheet |
 |
DM | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
ADPA04SASWITCH PIANO DIP SPST 0.025A 24V |
2,199 |
|
Datasheet |
|
ADPA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
SDA06H1SBDRSWITCH SLIDE DIP SPST 100MA 5VDC |
4,388 |
|
Datasheet |
|
SDA | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 5VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.215" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KE10RXGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,344 |
|
Datasheet |
|
KE | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
KAN1108RR-OFFSWITCH SLIDE DIP SPST 0.025A 24V |
3,559 |
|
Datasheet |
|
KAN | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|

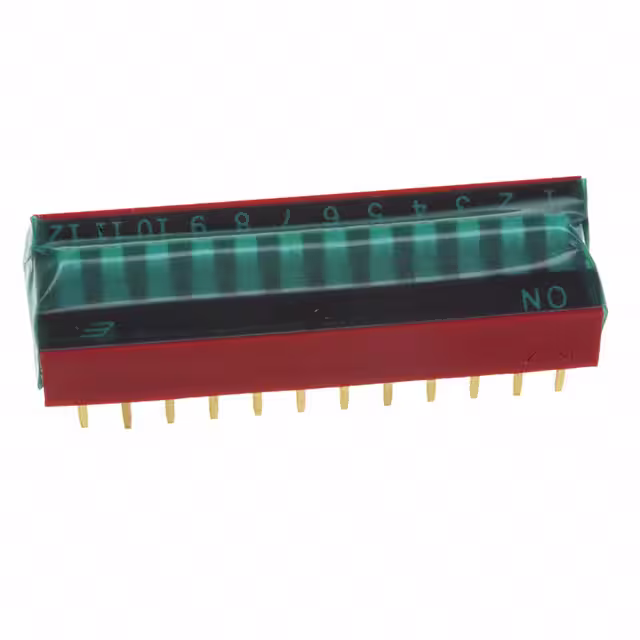

KAS1112ETSWITCH SLIDE DIP SPST 0.025A 24V |
2,760 |
|
Datasheet |
|
KAS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
435640-6SWITCH ROCKER DIP SPST 0.06A 5V |
4,121 |
|
Datasheet |
|
7100 | Tube | Obsolete | SPST | 9 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
DHN02FTVTRDIP SWITCH IKH HALF PITCH |
4,330 |
|
- |
|
DHN | Bulk | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
SD02H1BSWITCH SLIDE DIP SPST 0.1A 25V |
4,285 |
|
Datasheet |
|
SD | Tube | Active | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ADF06STSWITCH SLIDE DIP SPST 0.025A 24V |
3,434 |
|
Datasheet |
|
ADF | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
GDH04STRSWITCH SLIDE DIP SPST 0.025A 24V |
2,316 |
|
Datasheet |
|
GDH | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
NDPL12TVDIP SWITCH DP PIANO STYLE |
2,276 |
|
Datasheet |
|
NDPL | Bulk | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
BPA07RBSWITCH PIANO DIP SPST 100MA 5VDC |
2,433 |
|
Datasheet |
|
BPA | Bulk | Active | SPST | 7 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
NDIR02HTSWITCH SLIDE DIP SPST 0.025A 24V |
3,335 |
|
Datasheet |
|
NDI | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
CAS-D20TB2SWITCH SLIDE SPDTX2 0.1A 6V |
4,375 |
|
- |
|
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
|
CAS-D20TA2SWITCH SLIDE SPDTX2 0.1A 6V |
3,873 |
|
- |
|
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
|
DHN04FTVDIP SWITCH IKH HALF PITCH |
4,241 |
|
- |
|
DHN | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CFS-1000TBSWITCH SLIDE DIP SPST 0.1A 6V |
4,585 |
|
Datasheet |
|
CFS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
CFS-1000TASWITCH SLIDE DIP SPST 0.1A 6V |
2,203 |
|
Datasheet |
|
CFS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ADE10SSWITCH SLIDE DIP SPST 0.1A 24V |
4,256 |
|
Datasheet |
|
ADE | Tube | Obsolete | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
