DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

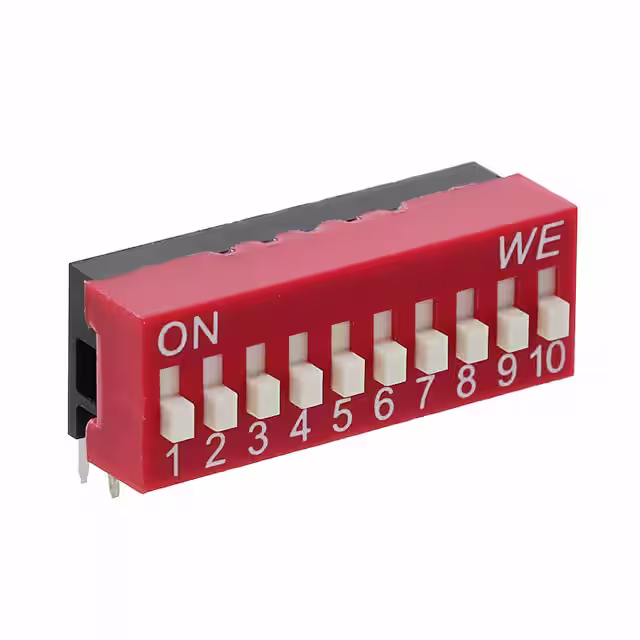

418217270910SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,448 |
|
- |
 |
WS-DITU | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418317270910SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
4,354 |
|
- |
|
WS-DITU | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418311170808SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
3,431 |
|
Datasheet |
|
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.275" (6.99mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

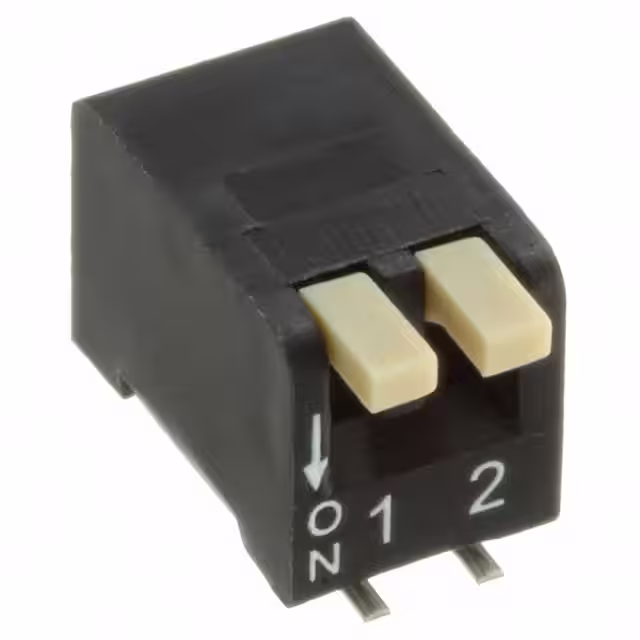

418311270802SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
2,166 |
|
Datasheet |
|
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.275" (6.99mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418317170904SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
2,766 |
|
- |
|
WS-DITU | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

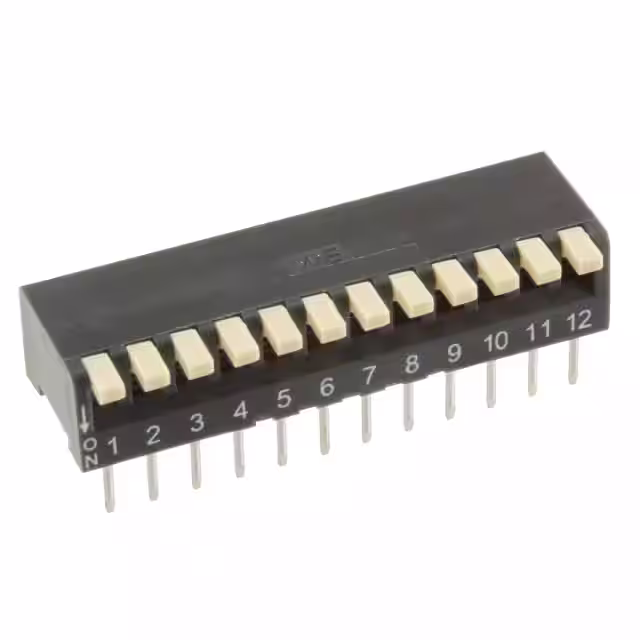

418317270912SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
2,361 |
|
- |
|
WS-DITU | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418217270912SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
2,696 |
|
- |
|
WS-DITU | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

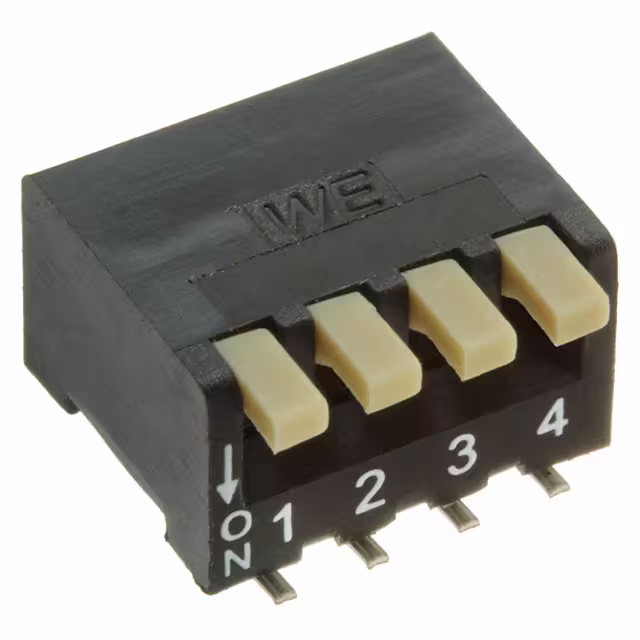

418311270804SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
2,599 |
|
Datasheet |
|
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.275" (6.99mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
418311170810SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
2,591 |
|
Datasheet |
|
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.275" (6.99mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

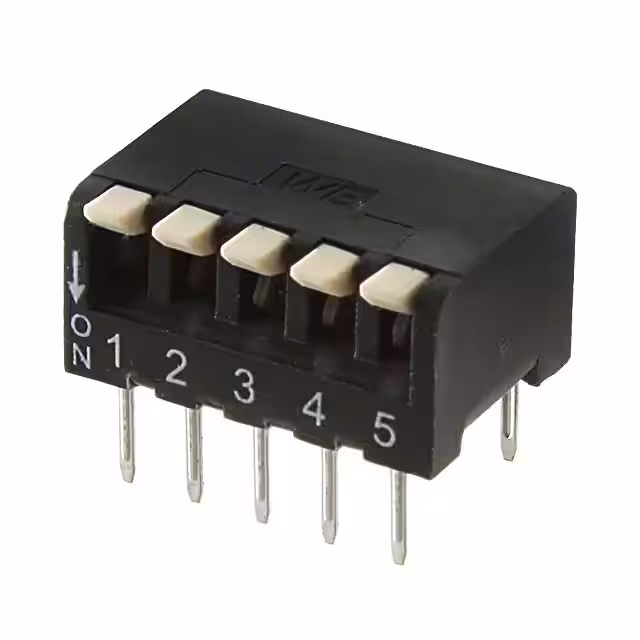

418317170905SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
3,929 |
|
- |
|
WS-DITU | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
