DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-2030ASW ROTARY DIP BCD COMP 0.1A 5V |
3,830 |
|
Datasheet |
 |
S-2000A | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RDTKR04S2TSWITCH ROTARY DIP BCD 0.15A 42V |
3,491 |
|
Datasheet |
|
RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary with Knob | Raised | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
RTF10C1SSW ROTARY DIP BCD COMP 0.1A 5VDC |
3,965 |
|
Datasheet |
|
RTF | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF10R3SSWITCH ROTARY DIP BCD 100MA 5VDC |
4,353 |
|
Datasheet |
|
RTF | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
GDR06SW ROCKER DIP SPST 0.025A 24V |
4,870 |
|
- |
|
GDR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

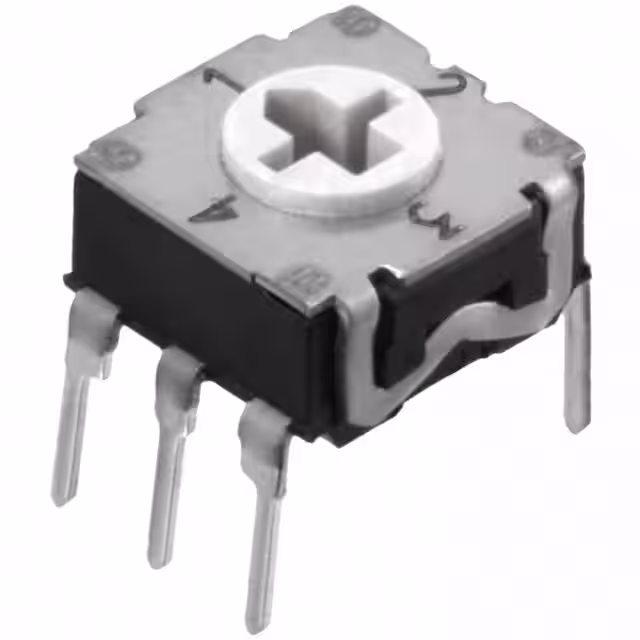

RTE0400N04SWITCH ROTARY DIP SP4T 0.1A 30V |
3,292 |
|
Datasheet |
|
RTE | Tube | Active | SP4T | 4 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTF16R3CSWITCH ROTARY DIP HEX 100MA 5VDC |
2,851 |
|
Datasheet |
|
RTF | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.272" (6.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16R1SSWITCH ROTARY DIP HEX 100MA 5VDC |
2,375 |
|
Datasheet |
|
RTF | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16C1JSW ROTARY DIP HEX COMP 0.1A 5VDC |
4,324 |
|
Datasheet |
|
RTF | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDTBC04R1TSW ROTARY DIP BCD COMP 0.15A 42V |
3,495 |
|
Datasheet |
|
RDT | Tube | Active | BCD Complement | 4 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDTBR06R1TSWITCH ROTARY DIP BCD 0.15A 42V |
2,503 |
|
Datasheet |
|
RDT | Tube | Active | BCD | 6 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDTBR04R1TSWITCH ROTARY DIP BCD 0.15A 42V |
3,027 |
|
Datasheet |
|
RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KAC10LGGTSWITCH PIANO DIP SPST 0.025A 24V |
2,628 |
|
Datasheet |
|
KAC | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CFS-0900MASWITCH SLIDE DIP SPST 0.1A 6V |
2,060 |
|
- |
|
CFS | Tube | Active | SPST | 9 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
CFS-0900MBSWITCH SLIDE DIP SPST 0.1A 6V |
3,412 |
|
- |
|
CFS | Tube | Active | SPST | 9 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
CFS-0900MCSWITCH SLIDE DIP SPST 0.1A 6V |
2,884 |
|
- |
|
CFS | Tube | Active | SPST | 9 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
SD-2210BSWITCH ROTARY DIP BCD 0.1A 5V |
2,183 |
|
- |
|
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-1210BSWITCH ROTARY DIP HEX 0.1A 5V |
3,259 |
|
- |
|
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-2010BSWITCH ROTARY DIP BCD 0.1A 5V |
4,748 |
|
- |
|
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-2030BSW ROTARY DIP BCD COMP 0.1A 5V |
2,966 |
|
- |
|
SD-2000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
