DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

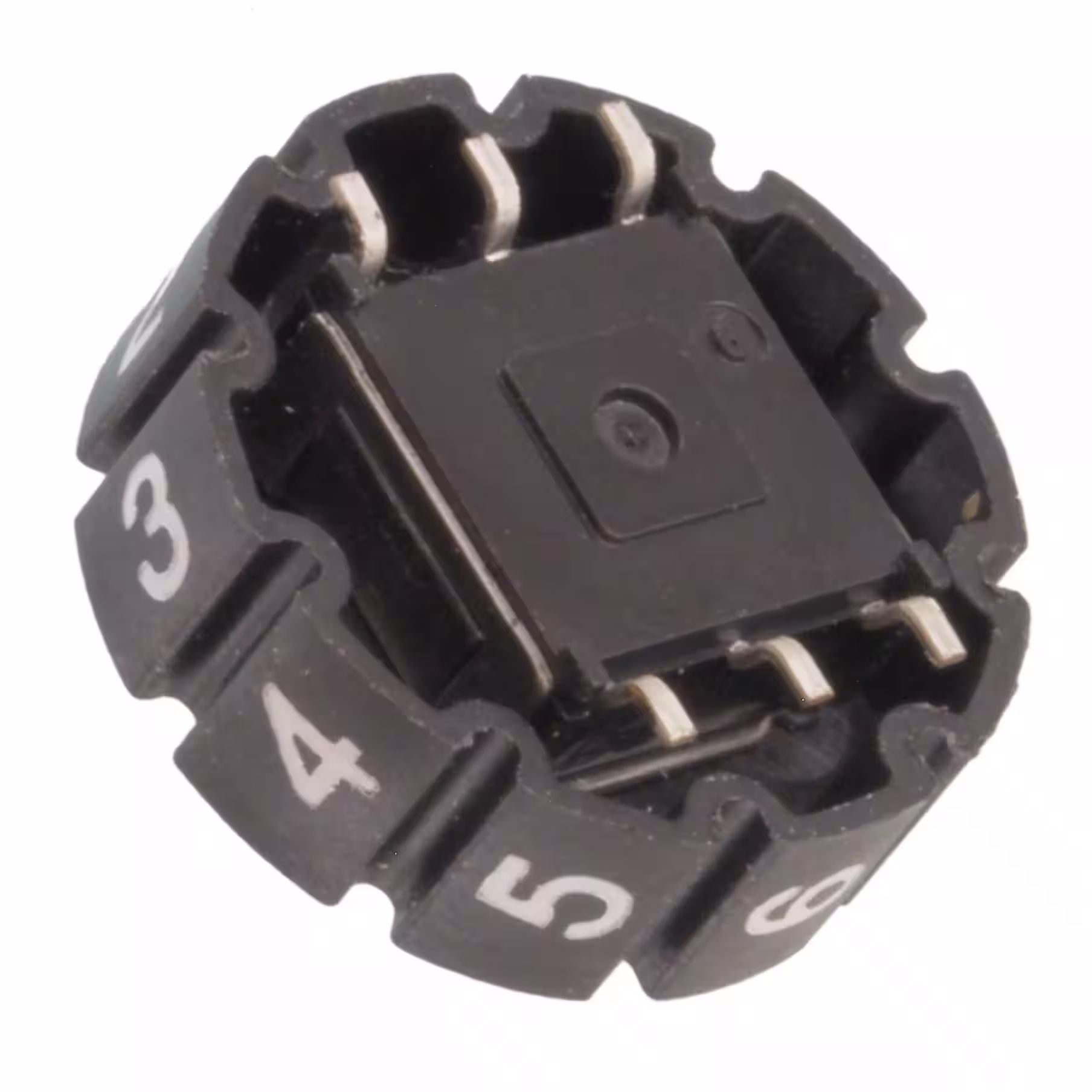

DH101ARSMT002SWITCH ROTARY DIP BCD 0.1A 42V |
3,718 |
|
Datasheet |
 |
DH | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 42VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
PT65505DIP ROTARY SWITCH P60 10MM |
4,213 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65527DIP ROTARY SWITCH P60 10MM |
4,914 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65524DIP ROTARY SWITCH P60 10MM |
3,933 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65511DIP ROTARY SWITCH P60 10MM |
2,923 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65324DIP ROTARY SWITCH P60 10MM |
3,814 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65711DIP ROTARY SWITCH P60 10MM |
2,304 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65725DIP ROTARY SWITCH P60 10MM |
4,074 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65325DIP ROTARY SWITCH P60 10MM |
2,462 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65311DIP ROTARY SWITCH P60 10MM |
4,086 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
78B12SRATSWITCH SLIDE DIP SPST 0.15A 30V |
2,045 |
|
Datasheet |
|
78 | Tube | Active | SPST | 12 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

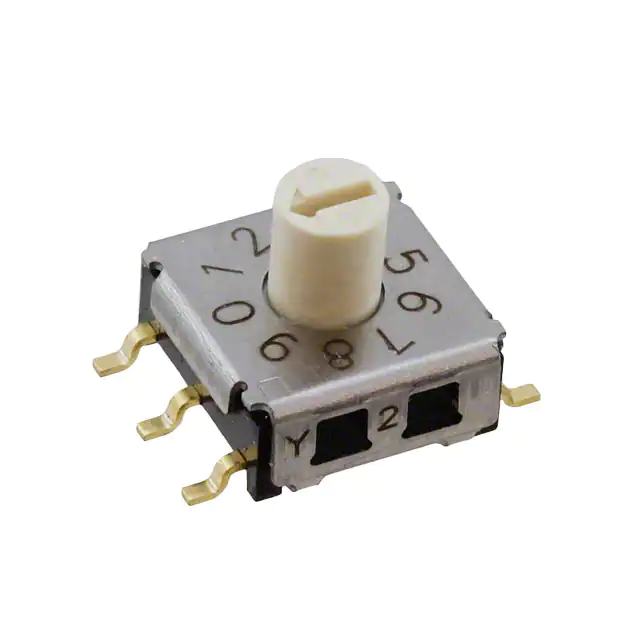

A6KS-102RS-R100SWITCH ROTARY DIP BCD 0.025A 24V |
4,966 |
|
Datasheet |
|
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
|
PT65721L254SWITCH ROTARY DIP SP4T 0.15A 24V |
4,695 |
|
Datasheet |
|
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65512L508SWITCH ROTARY DIP BCD 0.15A 24V |
3,579 |
|
Datasheet |
|
PT65 | Tube | Active | BCD | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65512L254SWITCH ROTARY DIP BCD 0.15A 24V |
4,807 |
|
Datasheet |
|
PT65 | Tube | Active | BCD | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65506L254SW ROTARY DIP HEX COMP 0.15A 24V |
2,301 |
|
Datasheet |
|
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65506L508SW ROTARY DIP HEX COMP 0.15A 24V |
4,082 |
|
Datasheet |
|
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65712L254SWITCH ROTARY DIP BCD 0.15A 24V |
2,508 |
|
Datasheet |
|
PT65 | Tube | Active | BCD | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65706SW ROTARY DIP HEX COMP 0.15A 24V |
4,293 |
|
Datasheet |
|
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65303L254SWITCH ROTARY DIP HEX 0.15A 24V |
2,942 |
|
Datasheet |
|
PT65 | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
