DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KJ01RXTSWITCH SLIDE DIP SPST 0.025A 24V |
177 |
|
Datasheet |
 |
KJ | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

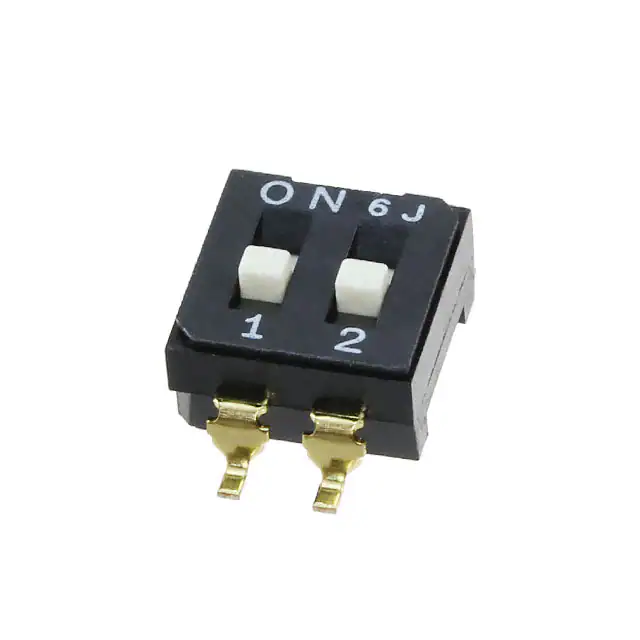

CFS-0202MBSWITCH SLIDE DIP SPST 0.1A 6V |
414 |
|
Datasheet |
|
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-1L-12BKSWITCH SLIDE DIP SPST 0.025A 24V |
245 |
|
Datasheet |
|
DS04-254 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6TN-4104SWITCH SLIDE DIP SPST 0.025A 24V |
154 |
|
Datasheet |
|
A6TN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6TN-2101SWITCH SLIDE DIP SPST 0.025A 24V |
292 |
|
Datasheet |
|
A6TN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
KJ03EXRSWITCH SLIDE DIP SPST 0.025A 24V |
758 |
|
Datasheet |
|
KJ | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6FR-2104SWITCH PIANO DIP SPST 0.025A 24V |
452 |
|
Datasheet |
|
A6FR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

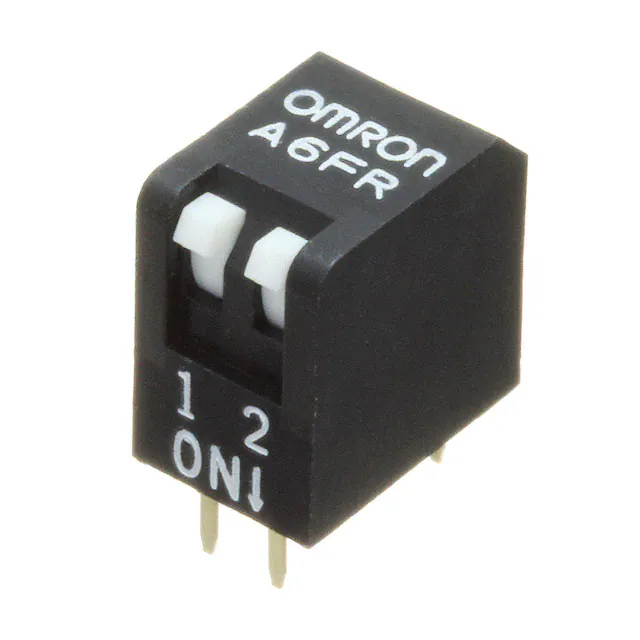

A6FR-2101SWITCH PIANO DIP SPST 0.025A 24V |
114 |
|
Datasheet |
|
A6FR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
DS04-254-2L-10BKSWITCH SLIDE DIP SPST 0.025A 24V |
386 |
|
Datasheet |
|
DS04-254 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
ADE06S04SWITCH SLIDE DIP SPST 0.1A 24V |
6,975 |
|
Datasheet |
|
ADE | Tube | Active | SPST | 6 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
209-9MSSWITCH SLIDE DIP SPST 0.1A 20V |
396 |
|
Datasheet |
|
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

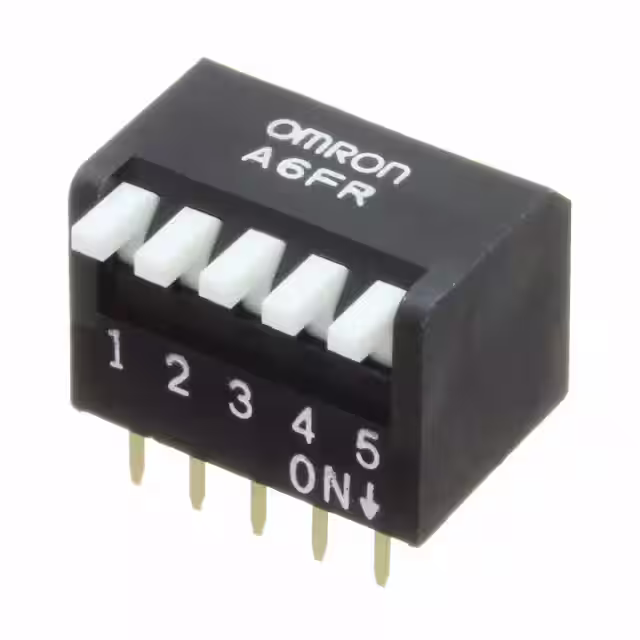

A6FR-5104SWITCH PIANO DIP SPST 0.025A 24V |
254 |
|
Datasheet |
|
A6FR | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
CFS-0301MBSWITCH SLIDE DIP SPST 0.1A 6V |
134 |
|
Datasheet |
|
CFS | Tube | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ03RTRSWITCH SLIDE DIP SPST 0.025A 24V |
4,838 |
|
Datasheet |
|
KJ | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
CFS-0102MASWITCH SLIDE DIP SPST 0.1A 6V |
2,963 |
|
Datasheet |
|
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
209-10LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,911 |
|
Datasheet |
|
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
CFS-0101MBSWITCH SLIDE DIP SPST 0.1A 6V |
433 |
|
Datasheet |
|
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

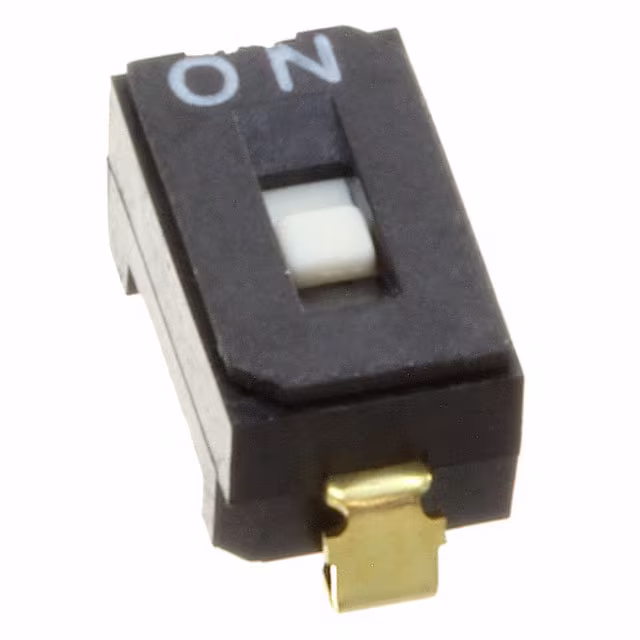

CFS-0101MASWITCH SLIDE DIP SPST 0.1A 6V |
123 |
|
Datasheet |
|
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

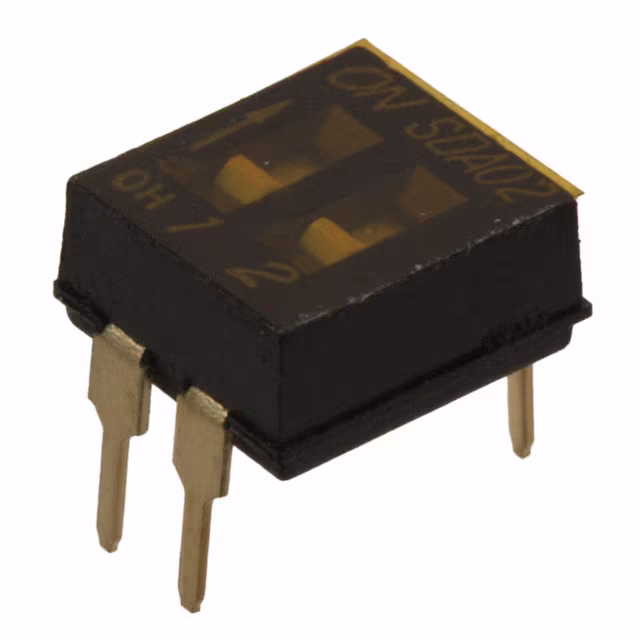

SDA02H0BSWITCH SLIDE DIP SPST 0.025A 24V |
14,048 |
|
Datasheet |
|
SDA | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
206-3RASTSWITCH SLIDE DIP SPST 0.05A 24V |
598 |
|
Datasheet |
|
206RA | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
