DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDA02H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,222 |
|
Datasheet |
 |
SDA | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CHS-06TBSWITCH SLIDE DIP SPST 0.1A 6V |
8,673 |
|
Datasheet |
|
CHS | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
4-1825059-2SWITCH SLIDE DIP SPST 0.025A 24V |
12,148 |
|
Datasheet |
|
ADF | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
SDA01H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
4,096 |
|
Datasheet |
|
SDA | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | - | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

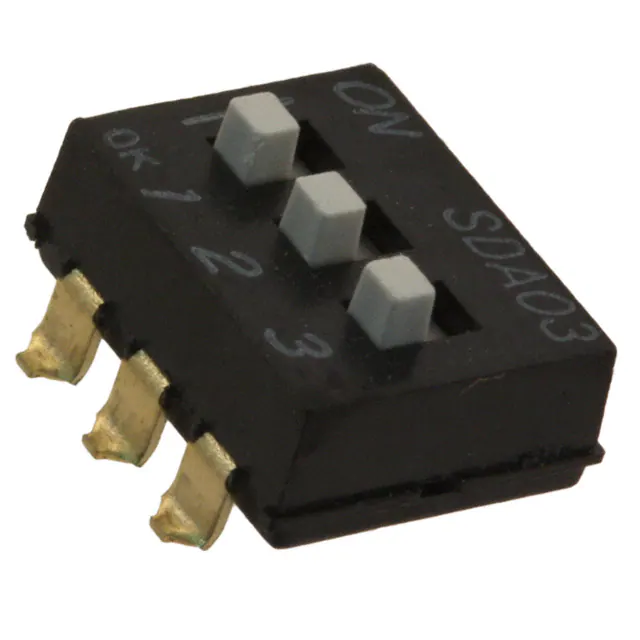

SDA03H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,065 |
|
Datasheet |
|
SDA | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

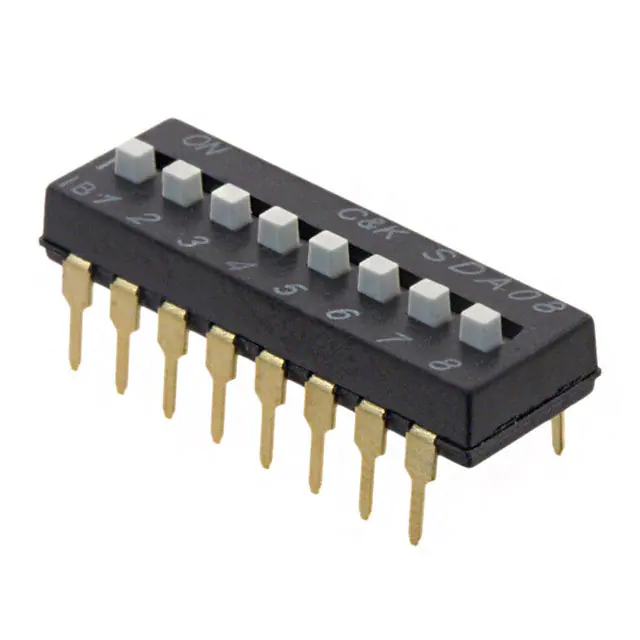

SDA08H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
43,920 |
|
Datasheet |
|
SDA | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1571983-1SWITCH SLIDE DIP SPST 0.025A 24V |
21,763 |
|
Datasheet |
|
GDH | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

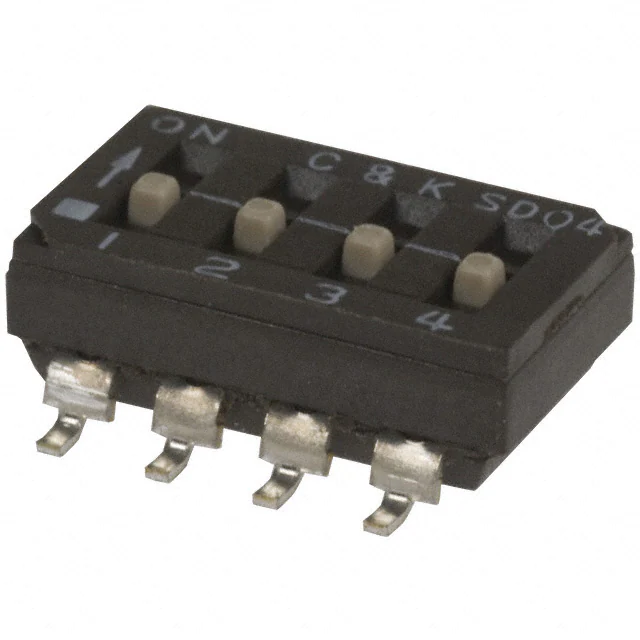

SD04H1SBSWITCH SLIDE DIP SPST 0.1A 25V |
4,969 |
|
Datasheet |
|
SD | Tube | Active | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6SR-4104SWITCH PIANO DIP SPST 0.025A 24V |
1,175 |
|
Datasheet |
|
A6SR | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
CS-4-13NTBSWITCH ROTARY DIP SP3T 0.1A 16V |
966 |
|
Datasheet |
|
CS-4 | Tape & Reel (TR) | Active | SP3T | 3 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
CS-4-13NTASWITCH ROTARY DIP SP3T 0.1A 16V |
3,986 |
|
Datasheet |
|
CS-4 | Tape & Reel (TR) | Active | SP3T | 3 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
CHS-02TBSWITCH SLIDE DIP SPST 0.1A 6V |
39,864 |
|
Datasheet |
|
CHS | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
CHS-02TASWITCH SLIDE DIP SPST 0.1A 6V |
21,995 |
|
Datasheet |
|
CHS | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
A6H-8102-PMSWITCH SLIDE DIP SPST 0.025A 24V |
5,606 |
|
Datasheet |
|
A6H | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|

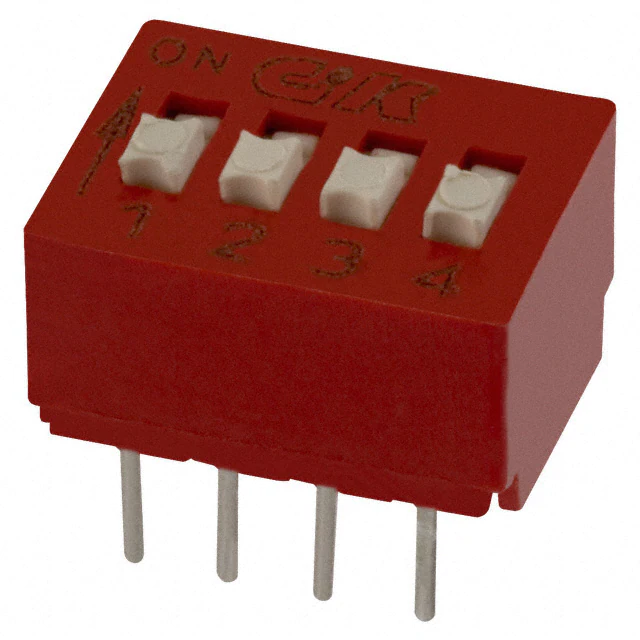

BD04SWITCH SLIDE DIP SPST 0.1A 5V |
1,829 |
|
Datasheet |
|
BD | Tube | Active | SPST | 4 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
CS-7-14TBSWITCH ROTARY DIP SP4T 0.1A 5V |
18,505 |
|
Datasheet |
|
CS-7 | Tape & Reel (TR) | Active | SP4T | 4 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6S-4102-HSWITCH SLIDE DIP SPST 0.025A 24V |
2,004 |
|
Datasheet |
|
A6S-H | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
CAS-220TASWITCH SLIDE DPDT 100MA 6V |
10,215 |
|
Datasheet |
|
CAS | Tape & Reel (TR) | Active | DPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | Tape Seal | -40°C ~ 85°C |
|
CAS-220TBSWITCH SLIDE DPDT 100MA 6V |
1,216 |
|
Datasheet |
|
CAS | Tape & Reel (TR) | Active | DPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | Tape Seal | -40°C ~ 85°C |
|
SDA02H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
16,482 |
|
Datasheet |
|
SDA | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
