AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1175HBT-TCFAN AXIAL 171X51MM 115VAC TERM |
4,601 |
|
Datasheet |
 |
A | - | Obsolete | 115VAC | Rectangular - 171mm L x 151mm H | 51.00mm | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 27.00W | 3200 RPM | 2 Terminals | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CUR, TUV, UL | 2 lbs (907.2 g) |
|

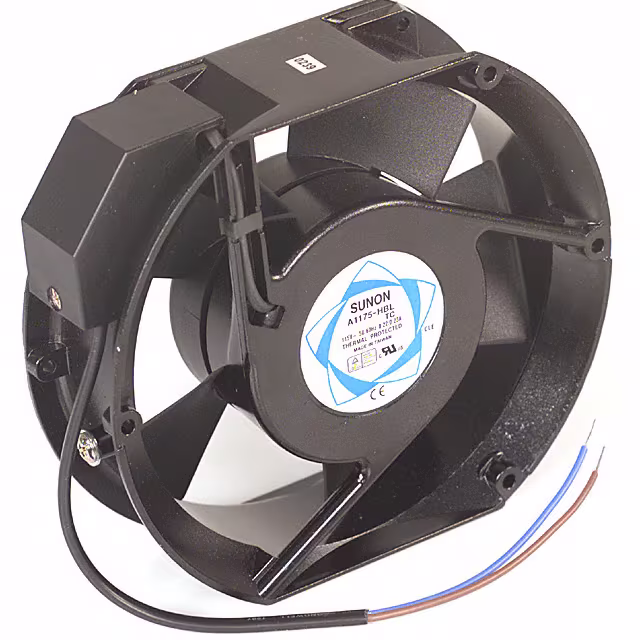

A1175HBL-TCFAN AXIAL 171X51MM 115VAC WIRE |
3,187 |
|
Datasheet |
|
A | - | Obsolete | 115VAC | Rectangular - 171mm L x 151mm H | 51.00mm | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 27.00W | 3200 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CUR, TUV, UL | 2 lbs (907.2 g) |
|
A2175HBT-TCFAN AXIAL 171.5X51MM 220/240VAC |
3,134 |
|
Datasheet |
|
A | - | Obsolete | 240VAC | Rectangular/Rounded - 171.5mm L x 151.5mm H | 51.00mm | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 26.00W | 3200 RPM | 2 Terminals | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CUR, TUV, UL | 2 lbs (907.2 g) |
|
19028280AFAN AXIAL 80X42MM 230VAC SU3A5 |
4,105 |
|
Datasheet |
|
Sprite AC | - | Obsolete | 230VAC | Square - 80mm L x 80mm H | 42.00mm | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Sleeve | Tubeaxial | - | 40.3dB(A) | 13.00W | 3250 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|
SF1212AD.BL.GNFAN AXL 119.5X38.5MM 115/230VAC |
3,125 |
|
Datasheet |
|
SF | Bulk | Active | 115/240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Dual Voltage | 49.0dB(A) | 19.00W | 3100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (550 g) |
|
SP101AT-1122HBL.GNFAN AXIAL 119.5X25.5MM 115VAC |
4,308 |
|
Datasheet |
|
SP | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 25.50mm | 80.0 CFM (2.24m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 18.00W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.728 lb (330.22 g) |
|
|
DP201AT-2122HBL.GNFAN AXIAL 119X25.5MM 220/240VAC |
4,169 |
|
Datasheet |
|
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 25.50mm | 80.0 CFM (2.24m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 19.00W | 2500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.65 lb (294.84 g) |
|
|
DP201AT-2122HBT.GNFAN AXIAL 119X25.5MM 220/240VAC |
2,920 |
|
Datasheet |
|
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 25.50mm | 80.0 CFM (2.24m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 19.00W | 2500 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.65 lb (294.84 g) |
|
|
DP203AT-2122LBL.GNFAN AXIAL 119X25.5MM 220/240VAC |
3,090 |
|
Datasheet |
|
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 25.50mm | 54.0 CFM (1.51m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 13.00W | 1900 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.728 lb (330.22 g) |
|
|
DP203AT-2122LBT.GNFAN AXIAL 119X25.5MM 220/240VAC |
4,689 |
|
Datasheet |
|
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 25.50mm | 54.0 CFM (1.51m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 13.00W | 1900 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 0.728 lb (330.22 g) |
|
SP101AT-1122HBT.GNFAN AXIAL 119.5X25.5MM 115VAC |
3,181 |
|
Datasheet |
|
SP | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 25.50mm | 80.0 CFM (2.24m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 18.00W | 2500 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 0.728 lb (330.22 g) |
|
SP103AT-1122LBL.GNFAN AXIAL 119X25.5MM 115VAC WIRE |
2,833 |
|
Datasheet |
|
SP | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 25.50mm | 54.0 CFM (1.51m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 11.50W | 1900 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.728 lb (330.22 g) |
|
|
DP209WR-2123HBL.GNFAN AXIAL 120X38MM 220/240VAC |
2,625 |
|
Datasheet |
|
DP | Bulk | Active | 220 ~ 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 100.0 CFM (2.80m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 21.00W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.03 lbs (467.2 g) |
|
19027117AFAN AXIAL 120X38MM 115VAC WR2A1 |
2,623 |
|
Datasheet |
|
Whisper AC | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 56.0 CFM (1.57m³/min) | 0.070 in H2O (17.5 Pa) | Sleeve | Tubeaxial | - | 33.9dB(A) | 7.00W | 1660 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|
|
19027119AFAN AXIAL 120X38MM 115VAC WR2H1 |
3,240 |
|
Datasheet |
|
Whisper AC | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 72.0 CFM (2.02m³/min) | 0.128 in H2O (31.8 Pa) | Sleeve | Tubeaxial | - | 37.6dB(A) | 10.00W | 2350 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|
19028316AFAN AXIAL 119X39MM 115VAC MX2A3 |
3,330 |
|
Datasheet |
|
Muffin XL AC | - | Obsolete | 115VAC | Square - 119mm L x 119mm H | 39.00mm | 105.0 CFM (2.94m³/min) | 0.223 in H2O (55.5 Pa) | Sleeve | Tubeaxial | - | 47.6dB(A) | 15.00W | 3100 RPM | 2 Terminals | - | - | - | 1.3 lbs (589.7 g) |
|

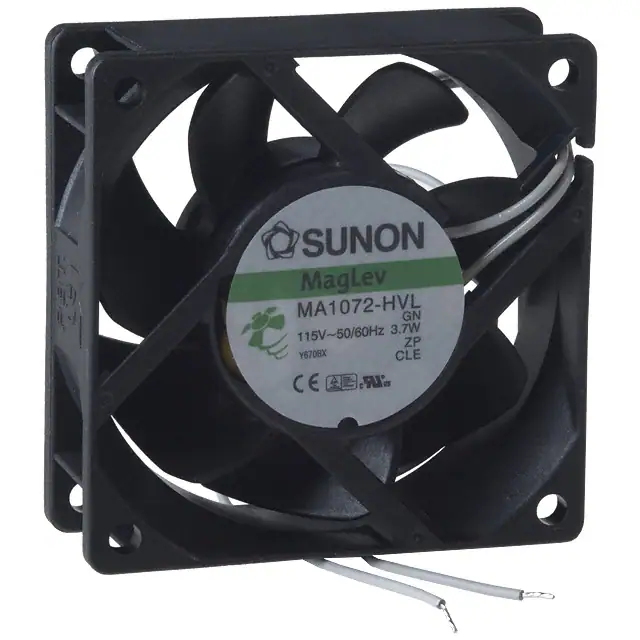

MA1072-HVL.GNFAN AXIAL 70X25MM 115VAC WIRE |
4,932 |
|
Datasheet |
|
MagLev® MA | Box | Obsolete | 115VAC | Square - 70mm L x 70mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 31.0dB(A) | 3.70W | 3900 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.209 lb (94.89 g) |
|

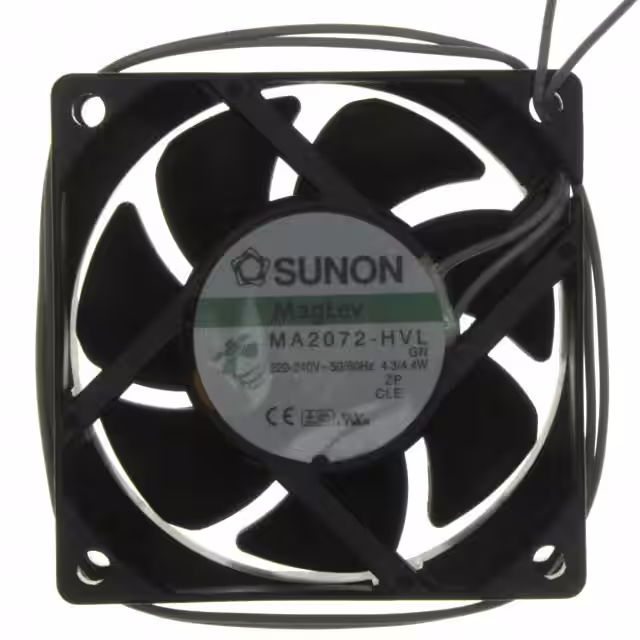

MA2072-HVL.GNFAN AXIAL 70X25MM 220/240VAC |
3,673 |
|
Datasheet |
|
MagLev® MA | Box | Obsolete | 220 ~ 240VAC | Square - 70mm L x 70mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 31.0dB(A) | 4.40W | 3900 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.209 lb (94.89 g) |
|
|
LPH12B99-BTMRFAN AXIAL 120X25MM 90-264VAC |
4,568 |
|
Datasheet |
|
LPH12B99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 25.50mm | 70.0 CFM (1.96m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 41.0dB(A) | 3.80W | 2600 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|

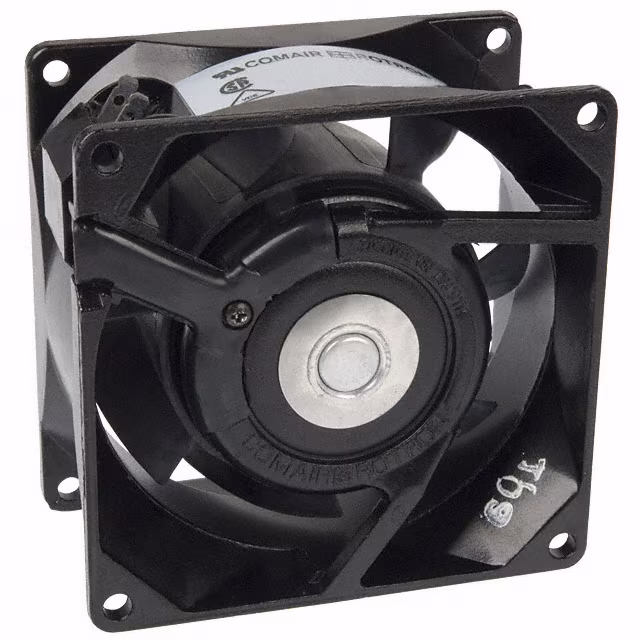

19028410AFAN 115AC SPRITE AC SU2B5 W/O FG |
3,822 |
|
Datasheet |
|
Sprite AC | - | Active | 115VAC | Square - 80mm L x 80mm H | 42.00mm | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | - | 40.3dB(A) | 11.00W | 3250 RPM | 2 Terminals | - | - | - | 1.1 lbs (499 g) |
