AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

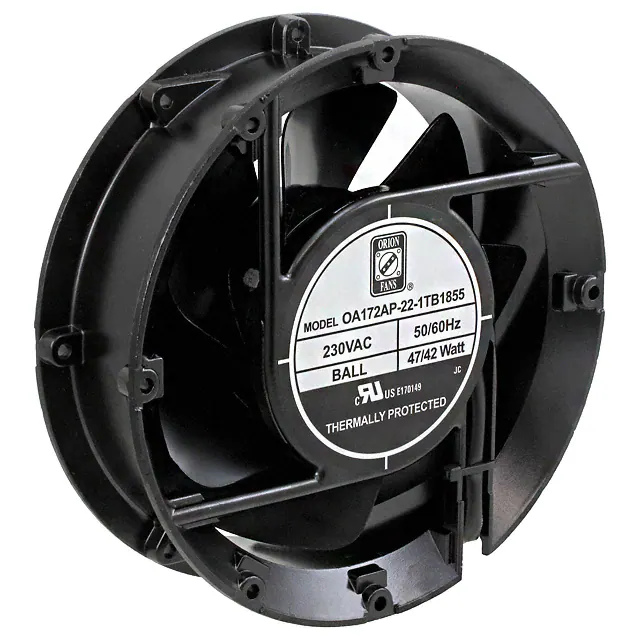

OA172AP-22-1TB1855FAN AXIAL 172X51MM 230VAC TERM |
200 |
|
Datasheet |
 |
OA172AP | Box | Active | 230VAC | Round - 172mm Dia | 51.00mm | 215.0 CFM (6.02m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | - | 59.0dB | 42.00W | 3200 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus | 3 lbs (1.4 kg) |
|
AC8300HFAN 85-265VAC 47CFM 8.3W 80X32MM |
443 |
|
Datasheet |
|
AC8300H | Box | Active | 115VAC | Square - 80mm L x 80mm H | 32.00mm | 46.9 CFM (1.31m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 8.30W | 5000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 167°F (-20 ~ 75°C) | CCC, CE, CSA, UL, VDE | 0.717 lb (325.22 g) |
|
R2S133-AE77-22MOTORIZED IMPELLER |
49 |
|
Datasheet |
|
R2S133 | Bulk | Active | 115VAC | Round - 133.4mm Dia | 91.00mm | - | - | Ball | Motorized Impellers | Thermal Overload Protector (TOP) | - | 34.00W | 3150 RPM | 2 Wire Leads with Splice Terminals | IP22 | -13 ~ 113°F (-25 ~ 45°C) | CE, CSA, UL | - |
|

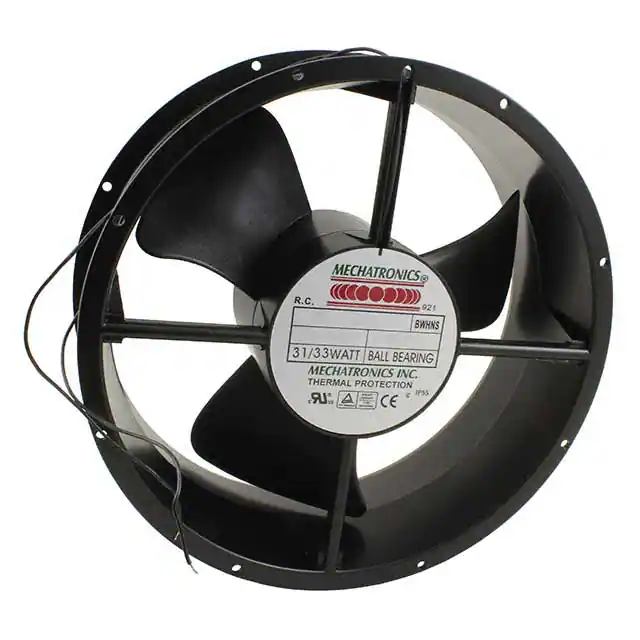

UF25GC12-BWHRFAN AXIAL 254X89MM 115VAC |
53 |
|
Datasheet |
|
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
RER160-28/56SFAN IMP MTRZD 176X54MM 230VAC |
54 |
|
Datasheet |
|
RER160 | Box | Active | 230VAC | Round - 176mm Dia | 54.00mm | 137.7 CFM (3.86m³/min) | - | Ball | Motorized Impellers | - | 68.0dB(A) | 45.00W | 2800 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, UL, VDE | 2.2 lbs (997.9 g) |
|
15038PB-B0K-EA-00FAN 150MM X 172MM X 38MM 200VAC |
81 |
|
Datasheet |
|
15038PB | Bulk | Active | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 166.0 CFM (4.65m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 23.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

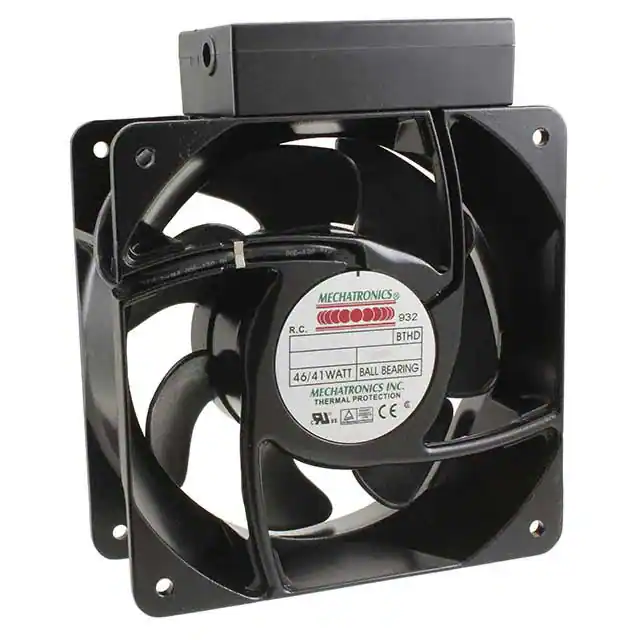

UF16FC12-BTHRFAN AXIAL 160X62MM 115VAC |
58 |
|
Datasheet |
|
UF16FC | Bulk | Active | 115VAC | Square - 160mm L x 160mm H | 62.00mm | 265.0 CFM (7.42m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 56.0dB(A) | 41.00W | 3400 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.8 lbs (1.3 kg) |
|
OA180AP-22-1TBFAN AXIAL 180X89MM 230VAC TERM |
34 |
|
Datasheet |
|
OA180AP | Box | Active | 230VAC | Square - 180mm L x 180mm H | 89.00mm | 409.0 CFM (11.45m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB | 70.0W | 3175 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 4 lbs (1.8 kg) |
|
|
CF4113MBL-000U-ABDFAN AXIAL 120X38MM 100/240VAC |
124 |
|
Datasheet |
|
CF | Bulk | Active | 100/240VAC | Square - 120mm L x 120mm H | 38.00mm | 90.1 CFM (2.52m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 40.2dB(A) | 3.40W | 3000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | ATEX, CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
OA254AN-11-2WBFAN AC 254MM(10") 115V 620CFM |
66 |
|
Datasheet |
|
OA254AN | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 600.0 CFM (16.80m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 55.0dB(A) | 45.00W | 2000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | - |
|
W2S130-AA25-72FAN AXIAL |
31 |
|
Datasheet |
|
W2S130 | Bulk | Active | 115VAC | Round - 172mm Dia | 55.00mm | - | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | 40.00W | 3250 RPM | 2 Wire Leads with Splice Terminals | IP20 | -13 ~ 158°F (-25 ~ 70°C) | CE, CSA, UL, VDE | - |
|
|
OA172SAP-22-1TBXCSFFAN AXIAL 172X55MM 230VAC TERM |
1,034 |
|
Datasheet |
|
OA172XC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Capacitor, Salt Fog Rated | 60.0dB | 38.00W | 3400 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 2.4 lbs (1.1 kg) |
|
OA180ANL-11-1TB1856FAN AXIAL 180X65MM 115VAC TERM |
27 |
|
Datasheet |
|
OA180ANL | Box | Active | 115VAC | Square - 180mm L x 180mm H | 65.00mm | 330.0 CFM (9.24m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB | 80.0W | 3250 RPM | 2 Terminals | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 3.7 lbs (1.7 kg) |
|
UF25GCB23-BTHRFAN AXIAL 254X89MM 230VAC TERM |
46 |
|
Datasheet |
|
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 812.0 CFM (22.74m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 65.0dB(A) | 98.0W | 3200 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cETL, ETL, TUV | 4.1 lbs (1.9 kg) |
|
55416.37070FAN BLOWER CF 300X108MM 115VAC |
45 |
|
Datasheet |
|
QLN65 | Bulk | Active | 115VAC | Rectangular - 400mm L x 90mm H (65mm Dia) | 108.0mm | 150.0 CFM (4.20m³/min) | 0.442 in H2O (110.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 65.0W | 1400 RPM | Terminal Block | - | 32 ~ 140°F (0 ~ 60°C) | - | 3.9 lbs (1.8 kg) |
|
|
55416.30250FAN BLWR CF 240X108MM 115VAC |
472 |
|
Datasheet |
|
QLN65 | Box | Active | 115VAC | Rectangular - 331mm L x 90mm H (65mm Dia) | 108.0mm | 129.0 CFM (3.61m³/min) | 0.333 in H2O (83.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 55.0W | 1500 RPM | Terminal Block | - | 32 ~ 140°F (0 ~ 60°C) | - | 3.2 lbs (1.5 kg) |
|
GTB019BUA07R-V E1FAN BLWR CENT 190MM |
36 |
|
Datasheet |
|
GTB | Box | Active | 115VAC | Round - 190mm Dia | 68.61mm | 432.8 CFM (12.12m³/min) | 2.880 in H2O (717.0 Pa) | Ball | Motorized Impellers | Electronic Commutation (EC), PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 85W | 3100 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | cUL, TUV, UL | - |
|
OA200AN-22-1WB1856FAN AXIAL 200X70MM 230VAC WIRE |
31 |
|
Datasheet |
|
OA200AN | Box | Active | 230VAC | Rectangular/Rounded - 220mm L x 200mm H | 70.00mm | 485.0 CFM (13.58m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 68.0dB | 105W | 3300 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4 lbs (1.8 kg) |
|
|
UF25GC12-BTHR-B1FAN AXIAL 254X89MM 115VAC TACH |
93 |
|
Datasheet |
|
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
109-311FAN 172X51MM 100VAC RND |
100 |
|
Datasheet |
|
San Ace 172 | Box | Active | 100VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 25.00W | 3500 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 2.3 lbs (1 kg) |
