AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF12AM12-BTHR-FFAN AXIAL 120X38MM 115VAC |
18 |
|
Datasheet |
 |
UF12AM | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 103.0 CFM (2.88m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 13.00W | 3100 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
OA5920-12TBFAN AXIAL 172X50.8MM 120VAC TERM |
36 |
|
Datasheet |
|
OA5920 | Box | Active | 120VAC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 180.0 CFM (5.04m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 55.0dB | 41.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 2 lbs (907.2 g) |
|
OA80AP-11-1TB1855FAN AXIAL 80X38MM 115VAC TERM |
55 |
|
Datasheet |
|
OA80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 33.0 CFM (0.924m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 35.0dB | 13.00W | 3200 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 0.95 lb (430.91 g) |
|
4600XFAN AXIAL 119X38MM 115VAC TERM |
94 |
|
Datasheet |
|
4600X | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Sintec | Tubeaxial | - | 50.0dB(A) | 18.00W | - | 2 Terminals | - | - | - | 1.2 lbs (544.3 g) |
|
UF15KC23-BTHRFAN AXIAL 172X150X55MM 230VAC |
78 |
|
Datasheet |
|
UF15KC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|
OA109LFG111TFAN AXIAL 148.5X76.5MM 115VAC |
4,905 |
|
Datasheet |
|
OA109LFG | Box | Active | 115VAC | Square - 148.5mm L x 148.5mm H | 76.50mm | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Kit | 46.0dB | 12.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
15038PB-A1L-EP-00FAN 150MM X 172MM X 38MM 115VAC |
94 |
|
Datasheet |
|
15038PB | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 32.00W | 3200 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
4800ZFAN AXIAL 119X38MM 115VAC TERM |
76 |
|
Datasheet |
|
4000Z | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 61.7 CFM (1.73m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 12.00W | 1800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
OA180APL-22-1TBFAN AXIAL 180X65MM 230VAC TERM |
2,013 |
|
Datasheet |
|
OA180APL | Box | Active | 230VAC | Square - 180mm L x 180mm H | 65.00mm | 405.0 CFM (11.34m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 60.0dB | 70.0W | 3300 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 4 lbs (1.8 kg) |
|
OA180AP-11-1WBFAN AXIAL 180X89MM 115VAC WIRE |
22 |
|
Datasheet |
|
OA180AP | Box | Active | 115VAC | Square - 180mm L x 180mm H | 89.00mm | 409.0 CFM (11.45m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB | 70.0W | 3175 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 4 lbs (1.8 kg) |
|
19020189AFAN AXIAL 254X89MM 115VAC CLE2T2 |
7 |
|
Datasheet |
|
Caravel AC | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.331 in H2O (82.4 Pa) | Ball | Tubeaxial | - | 49.2dB(A) | 61.0W | 1650 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, cUL, UL | 4.4 lbs (2 kg) |
|
W2S130-AA03-44FAN AXIAL 150X55MM 230VAC TERM |
19 |
|
- |
|
W2S130 | Box | Active | 230VAC | Round - 150mm Dia | 55.00mm | 223.6 CFM (6.26m³/min) | - | Ball | Tubeaxial | - | 53.0dB(A) | 38.00W | - | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 2.4 lbs (1.1 kg) |
|
|
15038PB-B0L-EP-00FAN 150MM X 172MM X 38MM 200VAC |
19 |
|
Datasheet |
|
15038PB | Bulk | Active | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 33.00W | 3200 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B2L-EP-00FAN 150MM X 172MM X 38MM 220VAC |
9 |
|
Datasheet |
|
15038PB | Bulk | Active | 220VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 38.00W | 3200 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

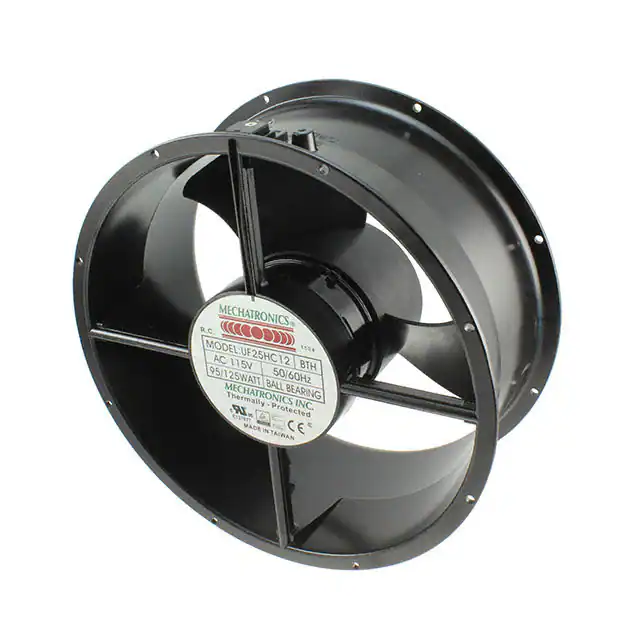

UF25HC23-BTHRFAN AXIAL 254X107MM 230VAC TERM |
16 |
|
Datasheet |
|
UF25HC | Bulk | Active | 230VAC | Round - 254mm Dia | 107.0mm | 850.0 CFM (23.80m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 65.0dB(A) | 125W | 2750 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 5.5 lbs (2.5 kg) |
|
OA205AN-22-1TB1856FAN AXIAL 205X72MM 230VAC TERM |
9 |
|
Datasheet |
|
OA205AN | Box | Active | 230VAC | Square - 205mm L x 205mm H | 72.00mm | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 80.0W | 3000 RPM | 2 Terminals | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.1 lbs (2.3 kg) |
|
OA2543AN-11-1WB1856FAN AXIAL 254X89MM 115VAC WIRE |
10 |
|
Datasheet |
|
OA2543AN | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 930.0 CFM (26.04m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 105W | 3300 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4.6 lbs (2.1 kg) |
|

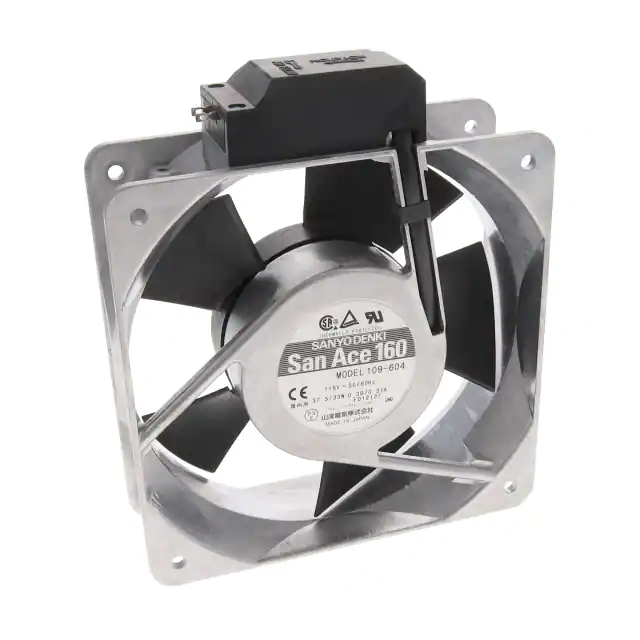

109-604FAN 160X51MM 115VAC |
11 |
|
Datasheet |
|
San Ace 160 | Box | Active | 115VAC | Square - 160mm L x 160mm H | 51.00mm | 300.4 CFM (8.41m³/min) | 0.669 in H2O (166.6 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 33.00W | 3350 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 2.4 lbs (1.1 kg) |
|
W1G130-AA25-01FAN 220VAC 220CFM 130MM |
23 |
|
Datasheet |
|
W1G130 | Box | Active | 230VAC | Round - 151mm Dia | 58.00mm | - | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | - | - | 24.00W | 3200 RPM | - | IP54 - Dust Protected, Water Resistant | -22 ~ 158°F (-30 ~ 70°C) | CCC, CSA, EAC, UL, VDE | 1.7 lbs (771.1 g) |
|
OA205AP-11-1TB1868FAN 115AC 205X205X72MM IP68 TERM |
25 |
|
Datasheet |
|
OA205AP | Box | Active | 115VAC | Square - 205mm L x 205mm H | 72.00mm | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 80.0W | 3000 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.2 lbs (2.4 kg) |
