AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF12A12-BWMRFAN AXIAL 120X38MM 115VAC WIRE |
4,511 |
|
Datasheet |
 |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 92.0 CFM (2.58m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 12.00W | 2750 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
|
UF12A12-BWSLRFAN AXIAL 120X38MM 115VAC WIRE |
2,317 |
|
Datasheet |
|
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 57.0 CFM (1.60m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 6.00W | 1800 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
|
UF12A12-BWSRFAN AXIAL 120X38MM 115VAC WIRE |
2,051 |
|
Datasheet |
|
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 64.0 CFM (1.79m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 37.0dB(A) | 8.00W | 2100 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
UF12A23-BTLRFAN AXIAL 120X38MM 230VAC TERM |
4,302 |
|
Datasheet |
|
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 81.0 CFM (2.27m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 15.00W | 2300 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
|
UF12A23-BTMRFAN AXIAL 120X38MM 230VAC TERM |
4,360 |
|
Datasheet |
|
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 92.0 CFM (2.58m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 15.00W | 2750 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
|
UF12A23-BTSRFAN AXIAL 120X38MM 230VAC WIRE |
3,895 |
|
Datasheet |
|
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 64.0 CFM (1.79m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 37.0dB(A) | 8.00W | 2100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
UF12A23-BWLRFAN AXIAL 120X38MM 230VAC WIRE |
4,395 |
|
Datasheet |
|
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 81.0 CFM (2.27m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 15.00W | 2300 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
UF12AR12-BWLRFAN AXIAL 120X38MM 115VAC WIRE |
2,290 |
|
Datasheet |
|
UF12AR | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Reverse Air Flow | 38.0dB(A) | 11.00W | 2300 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, UL | 1.2 lbs (544.3 g) |
|
|
UF12AR12-BWMRFAN AXIAL 120X38MM 115VAC WIRE |
2,261 |
|
Datasheet |
|
UF12AR | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 85.0 CFM (2.38m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Reverse Air Flow | 45.0dB(A) | 11.00W | 2750 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, UL | 1.2 lbs (544.3 g) |
|
|
UF12AR23-BTHRFAN AXIAL 120X38MM 230VAC TERM |
2,435 |
|
Datasheet |
|
UF12AR | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Reverse Air Flow | 47.0dB(A) | 15.00W | 3100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, UL | 1.2 lbs (544.3 g) |
|

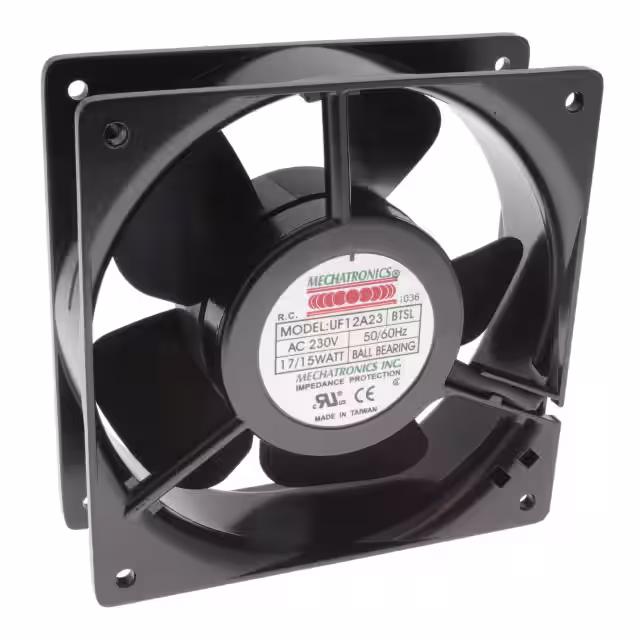

UF12A23-BTSLRFAN AXIAL 120X38MM 230VAC TERM |
3,393 |
|
Datasheet |
|
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 64.0 CFM (1.79m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 37.0dB(A) | 8.00W | 2100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.168 lbs (530 g) |
|
|
SP102A-1123MSL.S.GNThermal Products |
4,659 |
|
Datasheet |
|
SP | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.50mm | 84.0 CFM (2.35m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | - | 38.0dB(A) | 15.00W | 2600 RPM | 2 Wire Leads | - | - | CCC, CE, cUL, TUV, UL | - |
|
|
DP202A-2123MSL.S.GNThermal Products |
2,117 |
|
Datasheet |
|
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 84.0 CFM (2.35m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | - | 38.0dB(A) | 15.00W | 2500 RPM | 2 Wire Leads | - | - | CCC, CE, cUL, TUV, UL | - |
|
4715FS-12T-B20-D00FAN AXIAL 119X38MM 115VAC TERM |
1 |
|
Datasheet |
|
FS | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 36.0dB | 9.80W | 2300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
11938FB-B3M-EP-00FAN 230VAC 119X38MM TERM |
3,606 |
|
Datasheet |
|
FS | Box | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB | 12.00W | 2650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
LPH92B99-BTMRFAN AXIAL 92X25MM 90-264VAC |
3,681 |
|
Datasheet |
|
LPH92B99 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 25.50mm | 46.0 CFM (1.29m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 38.0dB(A) | 3.70W | 3000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
4715FS-12T-B5A-D00FAN AXIAL 119X38MM 115VAC TERM |
2,587 |
|
Datasheet |
|
FS | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 45.0dB | 14.40W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
|
4715FS-23T-B3A-D00FAN AXIAL 119X38MM 230VAC TERM |
2,889 |
|
Datasheet |
|
FS | Box | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 39.0dB | 12.00W | 2650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
|
11938FB-A1M-EP-00FAN 115VAC 119X38MM TERM |
4,684 |
|
Datasheet |
|
FS | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.291 in H2O (72.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB | 14.00W | 2800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-B3K-EP-00FAN 119MM X 38MM 230VAC TERMINAL |
3,757 |
|
Datasheet |
|
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 30.0dB | 7.50W | 1900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
