DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WS0812H4021FAN AXIAL 80X25MM 12VDC WIRE |
3,606 |
|
Datasheet |
 |
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.92 W | 3100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812M402FAN AXIAL 80X25MM 12VDC WIRE |
3,101 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 2200 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812M4021FAN AXIAL 80X25MM 12VDC WIRE |
2,686 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 2200 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824F402FAN AXIAL 80X25MM 24VDC WIRE |
2,126 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.68 W | 2700 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824F4021FAN AXIAL 80X25MM 24VDC WIRE |
3,572 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.68 W | 2700 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824H402FAN AXIAL 80X25MM 24VDC WIRE |
3,482 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.16 W | 3100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824H4021FAN AXIAL 80X25MM 24VDC WIRE |
4,695 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.16 W | 3100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824M402FAN AXIAL 80X25MM 24VDC WIRE |
2,032 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 2200 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824M4021FAN AXIAL 80X25MM 24VDC WIRE |
3,069 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 2200 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812H402FAN AXIAL 80X25MM 12VDC WIRE |
4,251 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.92 W | 3100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9LG0612J4D001FAN AXIAL 60X25MM 12VDC WIRE |
4,050 |
|
Datasheet |
|
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 4.68 W | 8650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9WS0812F401FAN AXIAL 80X25MM 12VDC WIRE |
2,499 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.56 W | 2700 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|

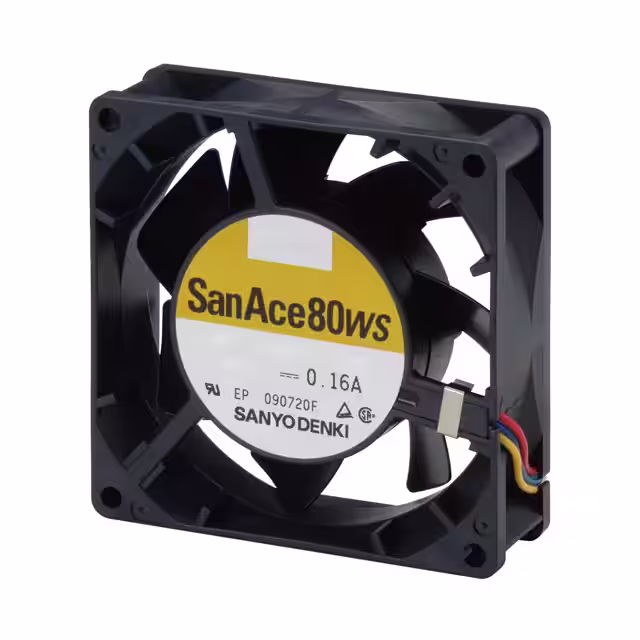

9WS0812H401FAN AXIAL 80X25MM 12VDC WIRE |
4,342 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.92 W | 3100 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812M401FAN AXIAL 80X25MM 12VDC WIRE |
3,213 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 1.2 W | 2200 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824F401FAN AXIAL 80X25MM 24VDC WIRE |
4,040 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.68 W | 2700 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824H401FAN AXIAL 80X25MM 24VDC WIRE |
2,563 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.16 W | 3100 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824H4D01FAN AXIAL 80X25MM 24VDC WIRE |
4,690 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 2.16 W | 3100 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824M401FAN AXIAL 80X25MM 24VDC WIRE |
4,765 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 1.2 W | 2200 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812F4D01FAN AXIAL 80X25MM 12VDC WIRE |
4,754 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.56 W | 2700 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0824M4D01FAN AXIAL 80X25MM 24VDC WIRE |
4,475 |
|
Datasheet |
|
San Ace 80WS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 1.2 W | 2200 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
