DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
OD172AP-24MBThermal Products |
3,104 |
|
- |
 |
OD172AP | Bulk | Active | 24VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Auto Restart | 41.3dB(A) | 13 W | 2475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-48MBThermal Products |
3,119 |
|
- |
|
OD172AP | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Auto Restart | 41.3dB(A) | 14.5 W | 2475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-12HBThermal Products |
4,284 |
|
- |
|
OD172AP | Bulk | Active | 12VDC | Round - 172mm Dia | 51.00mm | 230.0 CFM (6.44m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 52.7dB(A) | 23 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
4112N/2H4PDC TUBEAXIAL FAN |
4,064 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448S1D0011140X38MM 48VDC LOW NOISE RBLS LC |
2,470 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448S1D001140X38MM 48VDC LOW NOISE LCKRTRS |
4,155 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
17000297AFAN AXIAL 162.1X50.8MM MFXE48Z |
2,369 |
|
Datasheet |
|
Mixtus | Box | Active | 48VDC | Round - 162mm Dia | 50.80mm | 394.0 CFM (11.03m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 68.7dB(A) | 74.4 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|

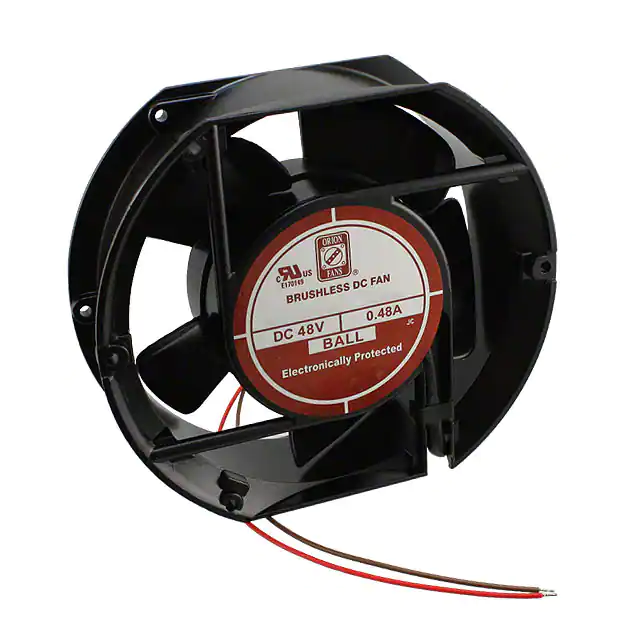

OD172SAP-48HBFAN AXIAL 172X50.8MM 48VDC WIRE |
3,374 |
|
Datasheet |
|
OD172S | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | - | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD172SAP-48LBThermal Products |
4,767 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OD172SAP-48MBThermal Products |
2,714 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8314/2HU-507FAN AXIAL 80X32MM 24VDC WIRE |
3,266 |
|
- |
|
8300U | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 47.1 CFM (1.32m³/min) | 0.554 in H2O (138.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, EAC, UL, VDE | - |
|
|
9GV1448P1H001FAN AXIAL 140X38MM 48VDC WIRE |
3,188 |
|
Datasheet |
|
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.16 W | 5200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
OD172SAP-12HHBIP68FAN AXIAL 172X51MM 12VDC WIRE |
4,142 |
|
Datasheet |
|
OD172SAP | Box | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | 50.4 W | 3800 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9RA1448H1D0011140X38MM 48VDC LOW NOISE RBLS LC |
3,147 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448H1D001140X38MM 48VDC LOW NOISE LCKRTRS |
4,307 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448M1D0011140X38MM 48VDC LOW NOISE RBLS LC |
4,096 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448M1D001140X38MM 48VDC LOW NOISE LCKRTRS |
2,560 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17000296AFAN AXIAL 162X50.8MM MFXE24Z 24V |
4,511 |
|
Datasheet |
|
Mixtus | Box | Active | 24VDC | Round - 162mm Dia | 50.80mm | 394.0 CFM (11.03m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 68.7dB(A) | 74.4 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
19039849AFAN MOTOR IMP 175X69MM 48V TTL |
3,876 |
|
Datasheet |
|
Diplomat | - | Active | 48VDC | Round - 175mm Dia | 68.58mm | 275.0 CFM (7.70m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 32.2 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
19039852AFAN MOTOR IMP 175X69MM 48V TTL |
3,845 |
|
Datasheet |
|
Diplomat | - | Active | 48VDC | Round - 175mm Dia | 68.58mm | 332.0 CFM (9.30m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 68.8dB(A) | 45.1 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
