DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P1348S1D011FAN AXIAL 127X38MM 48VDC WIRE |
4,493 |
|
Datasheet |
 |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 14.4 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348H1011FAN AXIAL 127X38MM 48VDC WIRE |
4,832 |
|
Datasheet |
|
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 9.6 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348S1011FAN AXIAL 127X38MM 48VDC WIRE |
2,685 |
|
Datasheet |
|
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 14.4 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
RG160-28/12NMFAN BLOWER CF 220X56MM 12VDC |
2,923 |
|
Datasheet |
|
RG160N | Bulk | Obsolete | 12VDC | Square - 220mm L x 220mm H | 56.00mm | 81.8 CFM (2.29m³/min) | - | Ball | Blower, Centrifugal | - | 56.0dB(A) | 7.5 W | 1900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 3.1 lbs (1.4 kg) |
|
|
6224N/12MDC TUBEAXIAL FAN |
4,563 |
|
- |
|
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 18 W | - | 2 Wire Leads | - | 162°F (72°C) | CSA, VDE, UL | - |
|
W2G115-AD17-01FAN AXIAL 127X38MM 24VDC WIRE |
3,047 |
|
Datasheet |
|
W2G115 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 118.0 CFM (3.30m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 4.7 W | - | 2 Wire Leads | - | - | - | 1.3 lbs (589.7 g) |
|

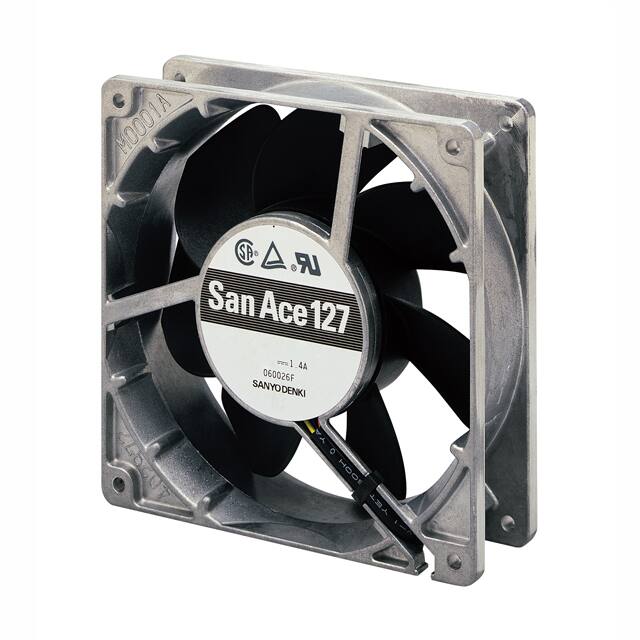

109E1312A101FAN AXIAL 127X38MM 12VDC WIRE |
2,544 |
|
Datasheet |
|
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 16.8 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
4118N/2H5S-FORCE DC TUBEAXIAL FAN |
4,580 |
|
- |
|
- | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 229.5 CFM (6.43m³/min) | 3.111 in H2O (775.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 70.0dB(A) | 45 W | 7500 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
RL90-18/14NR-422FAN BLOWER 120.6X37.3MM 24VDC |
4,267 |
|
- |
|
RL90N | Bulk | Active | 24VDC | Square/Rounded - 120.6mm L x 120.6mm H | 37.30mm | - | - | Ball | Blower, Centrifugal | - | - | 5.6 W | 2500 RPM | - | - | - | - | - |
|
DV6248FAN AXIAL 171.5X50.8MM 48VDC |
2,598 |
|
Datasheet |
|
DV6200 | Bulk | Obsolete | 48VDC | Round - 171.5mm Dia | 50.80mm | 317.8 CFM (8.90m³/min) | - | Ball | Tubeaxial | - | 63.0dB(A) | 40 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
ODB13391-24HB10AFAN IMP MTRZD 133.5X91MM 24VDC |
4,187 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Round - 133.5mm Dia | 91.00mm | 257.0 CFM (7.20m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 68.0dB | 63.6 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 1.543 lb (700.0 g) |
|
|
ODB13391-48HB10AFAN IMP MTRZD 133.5X91MM 48VDC |
2,144 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Round - 133.5mm Dia | 91.00mm | 257.0 CFM (7.20m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 68.0dB | 60 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 1.543 lb (700.0 g) |
|
MSI1769H24B-BBRFAN IMP MTRZD 175X69MM 24VDC |
2,156 |
|
Datasheet |
|
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart | 72.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
MSI1769H48B-BBRFAN IMP MTRZD 175X69MM 48VDC |
2,347 |
|
Datasheet |
|
MSI1769 | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart | 72.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
OD180APL-48HTBDC FAN 48V 180 X180X65MM |
3,266 |
|
Datasheet |
|
OD180APL | Bulk | Active | 48VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 63.2dB(A) | 50.2 W | 3375 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
MSI1769H24B1-BBRFAN IMP MTRZD 175X69MM 24VDC |
4,291 |
|
Datasheet |
|
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 72.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
MSI1769H24B2-BBRFAN IMP MTRZD 175X69MM 24VDC |
3,657 |
|
Datasheet |
|
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 72.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
MSI1769H48B1-BBRFAN IMP MTRZD 175X69MM 48VDC |
3,414 |
|
Datasheet |
|
MSI1769 | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 72.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
MSI1769H48B2-BBRFAN IMP MTRZD 175X69MM 48VDC |
4,096 |
|
Datasheet |
|
MSI1769 | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 72.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
4118N/2H6S-FORCE DC TUBEAXIAL FAN |
2,239 |
|
- |
|
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 259.2 CFM (7.26m³/min) | 3.192 in H2O (795.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 73.0dB(A) | 62 W | 8400 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CCC, CSA, CE, EAC, VDE, UL | - |
