DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6025BF-050-351FAN AXIAL 60X25.4MM 5VDC WIRE |
262 |
|
Datasheet |
 |
CFM-60BF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 35.2dB(A) | 2.8 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225B-230-356FAN AXIAL 92.2X32MM 24VDC WIRE |
186 |
|
Datasheet |
|
CFM-92B | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 35.6dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD9225-12HBXEFAN AXIAL 92X25.5MM 12VDC WIRE |
131 |
|
Datasheet |
|
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 94.0 CFM (2.63m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB(A) | 8.4 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
CFM-6025BF-035-274-20FAN AXIAL 60X25.4MM 5VDC WIRE |
426 |
|
Datasheet |
|
CFM-60BF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB(A) | 1.5 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-7015B-030-295-20FAN AXIAL 70X15.5MM 5VDC WIRE |
262 |
|
Datasheet |
|
CFM-70B | Box | Active | 5VDC | Square - 70mm L x 70mm H | 15.50mm | 19.3 CFM (0.540m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.5dB(A) | 1.3 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BF-250-351-20FAN AXIAL 60X25.4MM 24VDC WIRE |
211 |
|
Datasheet |
|
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.2dB(A) | 2.64 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

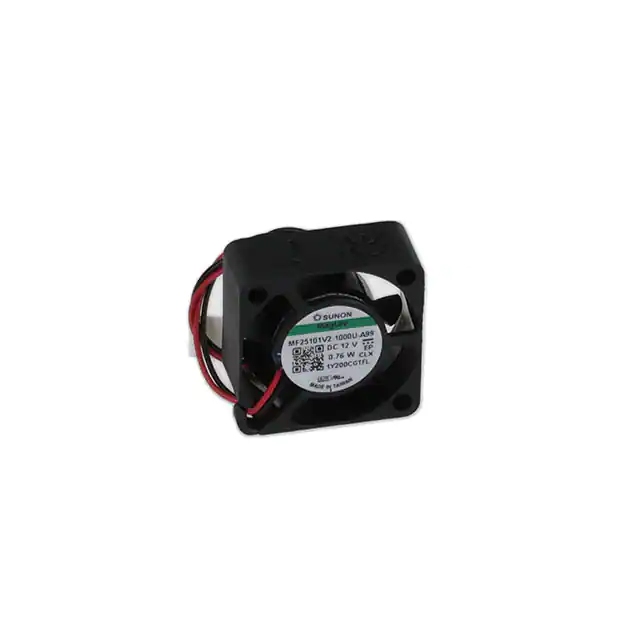

4125/MF25101V2-1000U-A99FAN AXIAL 25X10MM VAPO 12VDC |
1,378 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.0dB(A) | 360 mW | 9600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.015 lb (6.8 g) |
|

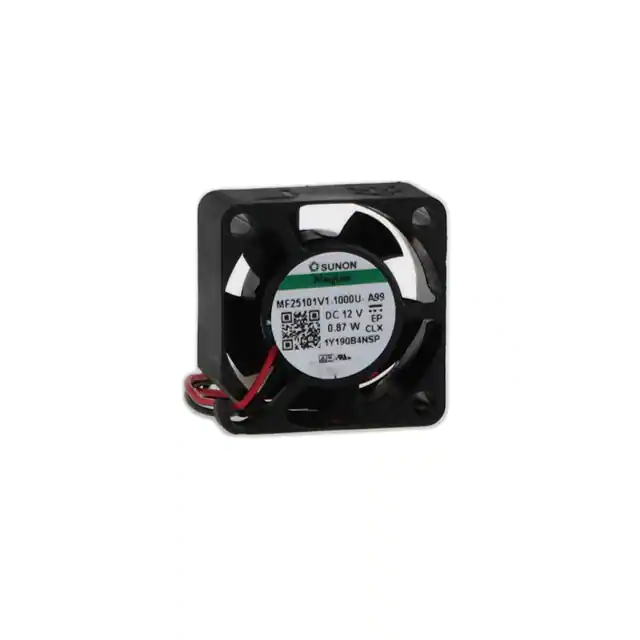

4124/MF25101V1-1000U-A99FAN AXIAL 25X10MM VAPO 12VDC |
336 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.8 CFM (0.106m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.0dB(A) | 600 mW | 14000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.015 lb (6.8 g) |
|

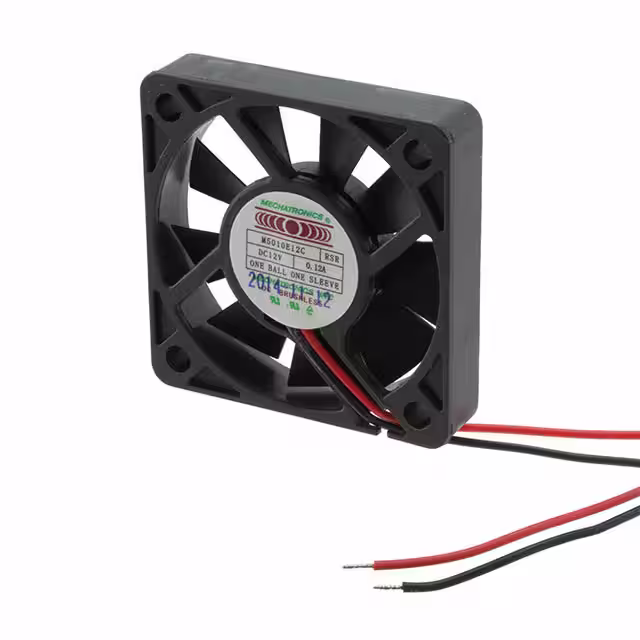

M5010E12C-RSRFAN AXIAL 50X10MM 12VDC WIRE |
785 |
|
Datasheet |
|
M5010 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 9.9 CFM (0.277m³/min) | 0.140 in H2O (34.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.046 lb (20.87 g) |
|
CFM-7015C-040-357-20FAN AXIAL 70X15.5MM 5VDC WIRE |
218 |
|
Datasheet |
|
CFM-70C | Box | Active | 5VDC | Square - 70mm L x 70mm H | 15.50mm | 25.7 CFM (0.720m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.7dB(A) | 2.4 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225B-120-269-20FAN AXIAL 92.2X32MM 12VDC WIRE |
216 |
|
Datasheet |
|
CFM-92B | Box | Active | 12VDC | Square - 92.0mm L x 92.0mm H | 25.00mm | 33.4 CFM (0.935m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.9dB(A) | 1.08 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9A0612S401FAN AXIAL 60X25MM 12VDC WIRE |
447 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 2.04 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
9S0612F4011FAN AXIAL 60X25MM 12VDC WIRE |
484 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.3 CFM (0.484m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
CFM-7025B-130-332FAN AXIAL 70X25.2MM 12VDC WIRE |
168 |
|
Datasheet |
|
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.20mm | 25.9 CFM (0.725m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 30.8dB(A) | 1.44 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7025B-240-394FAN AXIAL 70X25.2MM 24VDC WIRE |
144 |
|
Datasheet |
|
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.20mm | 34.4 CFM (0.963m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 37.1dB(A) | 3.36 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

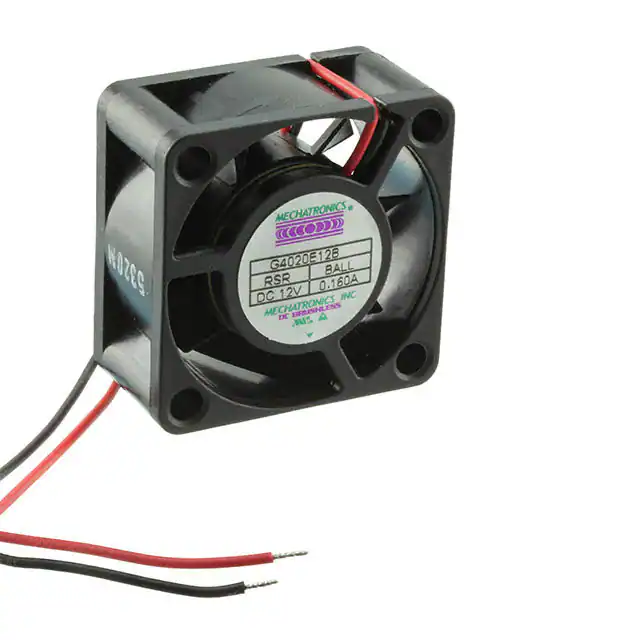

G4020E12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
591 |
|
Datasheet |
|
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4020M12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
282 |
|
Datasheet |
|
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
MR3010L05B-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
1,013 |
|
Datasheet |
|
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 20.5dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M05B-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
848 |
|
Datasheet |
|
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart | 25.2dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M12B-RSRFAN AXIAL 30X10MM 12VDC WIRE |
610 |
|
Datasheet |
|
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart | 25.2dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
