DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0624M-AFAN AXIAL 60X25.4MM 24VDC WIRE |
1,375 |
|
Datasheet |
 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 19.8 CFM (0.554m³/min) | 0.155 in H2O (38.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.68 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB1212VHE-R00FAN AXIAL 120X38MM 12VDC WIRE |
382 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
109P0405H302FAN AXIAL 40X28MM BALL 5VDC WIRE |
145 |
|
Datasheet |
|
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 3.4 W | 8700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0524H7D01FAN AXIAL 52X15MM 24VDC WIRE |
139 |
|
Datasheet |
|
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 27.0dB(A) | 1.2 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
109P0412M302FAN AXIAL 40X28MM 12VDC WIRE |
118 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 540 mW | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0424F302FAN AXIAL 40X28MM 24VDC WIRE |
105 |
|
Datasheet |
|
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.32 W | 6700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|

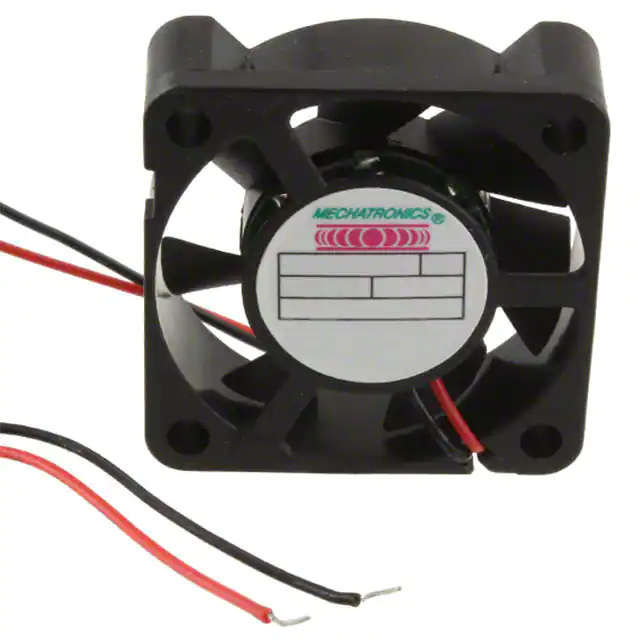

MA3010L12C-RSRFAN AXIAL 30X10MM 12VDC WIRE |
103 |
|
Datasheet |
|
MA3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.070 in H2O (17.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 15.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|
9S0824L401FAN AXIAL 80X25MM 24VDC WIRE |
132 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 16.0dB(A) | 960 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
9A0924H402FAN AXIAL 92X25MM 24VDC WIRE |
128 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.4 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9S0612F402FAN AXIAL 60X25MM 12VDC WIRE |
101 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.3 CFM (0.484m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 20.0dB(A) | 960 mW | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|

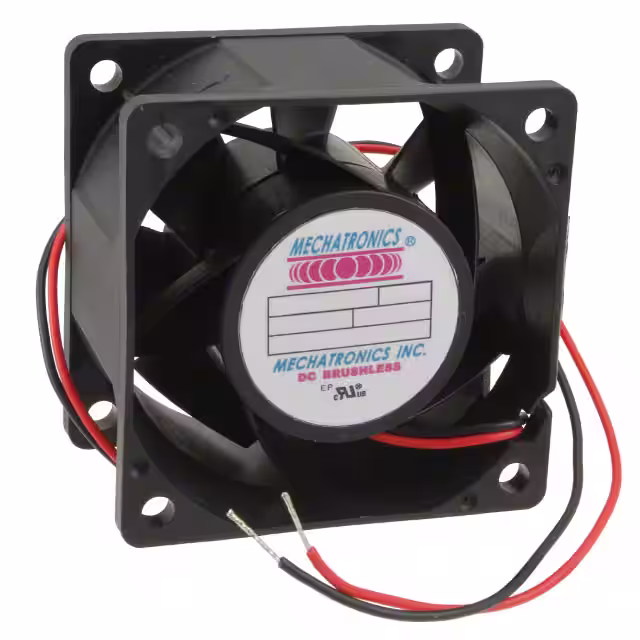

MQ6038E12B-FSRFAN AXIAL 60X38MM 12VDC WIRE |
218 |
|
Datasheet |
|
MQ6038 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 69.2 CFM (1.94m³/min) | 2.111 in H2O (525.8 Pa) | Ball | Tubeaxial | - | 64.0dB(A) | - | 11000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.234 lb (106.14 g) |
|
AFB0924LDFAN AXIAL 92X20MM 24VDC WIRE |
172 |
|
Datasheet |
|
AFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 20.00mm | 41.0 CFM (1.15m³/min) | 0.084 in H2O (20.9 Pa) | Ball | Tubeaxial | - | 28.5dB(A) | 1.44 W | 2100 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|
CFM-A225-43-10FAN AXIAL 120X25.4MM 48VDC WIRE |
185 |
|
Datasheet |
|
CFM-120 | Tray | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 11.04 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.42 lb (190.51 g) |
|
G1238L12B1-FSR-TTLFAN AXIAL 120X38MM 12VDC WIRE |
496 |
|
Datasheet |
|
G1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 3 Wire Leads | - | - | - | 0.75 lb (340.19 g) |
|

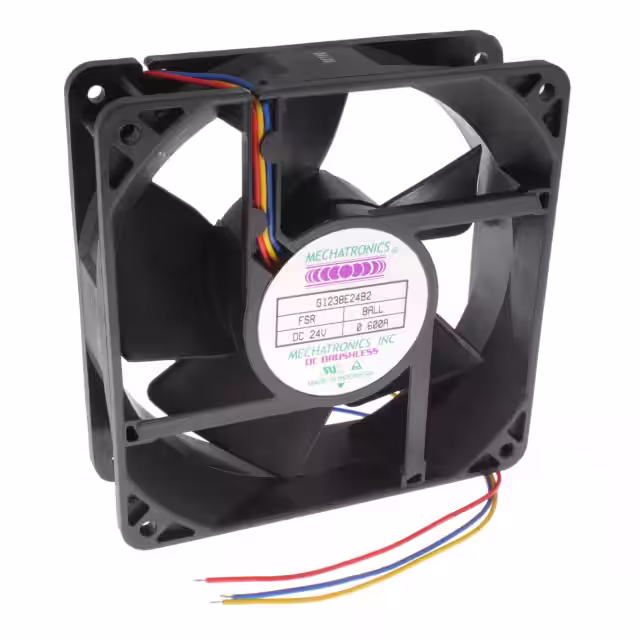

G1238E24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
187 |
|
Datasheet |
|
G1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|

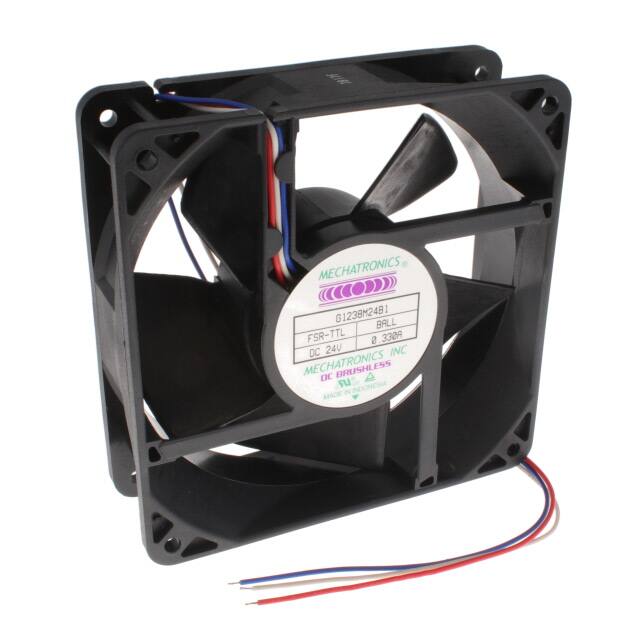

G1238M24B1-FSR-TTLFAN AXIAL 120X38MM 24VDC WIRE |
163 |
|
Datasheet |
|
G1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
109P0424H3D013FAN AXIAL 40X28MM 24VDC WIRE |
274 |
|
Datasheet |
|
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 2.28 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
109P0412H3D01FAN AXIAL 40X28MM 12VDC WIRE |
209 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 2.34 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0405F3013FAN AXIAL 40X28MM BALL 5VDC WIRE |
171 |
|
Datasheet |
|
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 28.00mm | 8.6 CFM (0.241m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.4 W | 6700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0405H3D013FAN AXIAL 40X28MM BALL 5VDC WIRE |
110 |
|
Datasheet |
|
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 3.4 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
