DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
612NHU-181FAN AXIAL 60X25.4MM 12VDC WIRE |
67 |
|
Datasheet |
 |
600NU | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 25.3 CFM (0.708m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 1.8 W | 5600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.146 lb (66.22 g) |
|
17001171AFAN AXIAL 24VDC GLD24B3E2X-E3 |
316 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.6dB(A) | 15.1 W | 3300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
614NHUFAN AXIAL 60X25.4MM 24VDC WIRE |
512 |
|
Datasheet |
|
600NU | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 25.3 CFM (0.708m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2.1 W | 5600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.146 lb (66.22 g) |
|

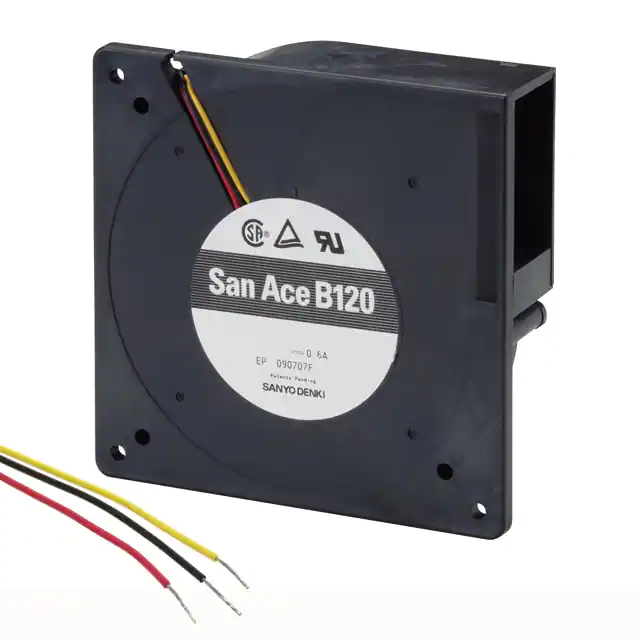

109BF12MC2FAN BLOWER 120X32MM 12VDC WIRE |
106 |
|
Datasheet |
|
San Ace B120 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 21.5 CFM (0.602m³/min) | 0.441 in H2O (110.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 44.0dB(A) | 3.84 W | 1900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|

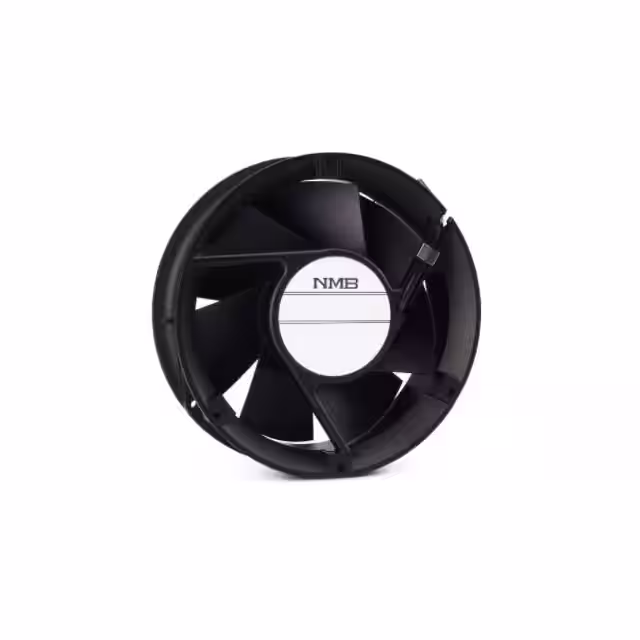

17250VA-48R-EU-01FAN AXIAL 172X50.8MM 48VDC WIRE |
51 |
|
Datasheet |
|
17250VA | Box | Active | 48VDC | Round - 172mm Dia | 50.80mm | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.0dB | 43.2 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
RER125-19/12NFAN IMP MTRZD 138X35MM 12VDC |
429 |
|
Datasheet |
|
RER125N | Box | Active | 12VDC | Round - 138mm Dia | 35.00mm | 64.7 CFM (1.81m³/min) | - | Ball | Motorized Impellers | - | 47.0dB(A) | 4.5 W | 2650 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 0.705 lb (319.78 g) |
|
9LG1424M1002FAN AXIAL 140X38MM 24VDC WIRE |
53 |
|
Datasheet |
|
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 7.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.5 lbs (680.4 g) |
|
4118NHU-294FAN AXIAL 119X38MM 48VDC WIRE |
602 |
|
Datasheet |
|
4100NU | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | - | Ball | Tubeaxial | - | 56.0dB(A) | 11 W | 4400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 131°F (-20 ~ 55°C) | UL | 0.882 lb (400.07 g) |
|
19031200AFAN AXIAL 127X38.1MM 12V GL12B7 |
225 |
|
Datasheet |
|
Galaxy | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 53.6dB(A) | 16 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 1.4 lbs (635.0 g) |
|
W2G115-AE31-15FAN AXIAL 127X38MM BALL 24VDC |
10 |
|
Datasheet |
|
W2G115 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 130.0 CFM (3.64m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 5.7 W | - | - | - | - | CSA, UL | 1.6 lbs (725.7 g) |
|
OD172SAP-12HHBFAN AXIAL 172X51MM 12VDC WIRE |
97 |
|
Datasheet |
|
OD172S | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | - | 3800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
9LG0924P1H001FAN AXIAL 92X38MM 24VDC WIRE |
40 |
|
Datasheet |
|
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 130.6 CFM (3.66m³/min) | 1.720 in H2O (428.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 21.6 W | 9000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|
19032364AFAN BLWR 160.7X50.2MM SPD24B1QDN |
190 |
|
Datasheet |
|
Spinnaker | Box | Active | 24VDC | Rectangular/Rounded - 160.7mm L x 161.3mm H | 50.20mm | 60.0 CFM (1.68m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 57.0dB(A) | 30 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 2.1 lbs (952.5 g) |
|
19031767AFAN AXIAL 254X88.9MM 48V CD48B3 |
284 |
|
Datasheet |
|
Caravel | Bulk | Active | 48VDC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.1dB(A) | 30.2 W | 1640 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 4.4 lbs (2 kg) |
|

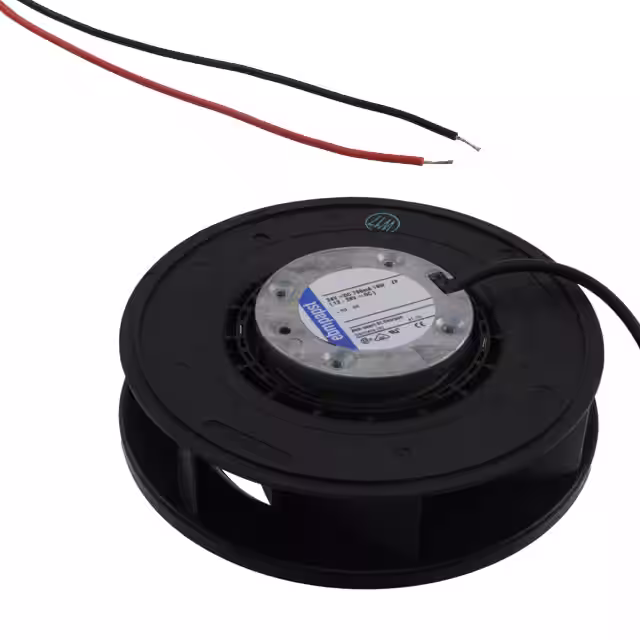

RER160-28/14NFAN IMP MTRZD 176X54MM 24VDC |
40 |
|
Datasheet |
|
RER160N | Box | Active | 24VDC | Round - 176mm Dia | 54.00mm | 150.1 CFM (4.20m³/min) | - | Ball | Motorized Impellers | - | 58.0dB(A) | 19 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 1.3 lbs (589.7 g) |
|
OD172SAP-48HBXCIP68FAN AXIAL 172X51.6MM 48VDC WIRE |
54 |
|
Datasheet |
|
OD172SAP XC | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 152mm H | 51.60mm | 323.0 CFM (9.04m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.5dB | 49.4 W | 4400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 1.3 lbs (600.0 g) |
|
5214NHHFAN AXIAL 127X38MM 24VDC WIRE |
39 |
|
Datasheet |
|
5200N | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 203.0 CFM (5.68m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 17.5 W | 4900 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 0.684 lb (310.26 g) |
|
OD172SAPL-24HBFAN AXIAL 172X38.5MM 24VDC WIRE |
31 |
|
Datasheet |
|
OD172SAPL | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 225.0 CFM (6.30m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Auto Restart | 55.0dB | - | 4000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 1.7 lbs (760.0 g) |
|

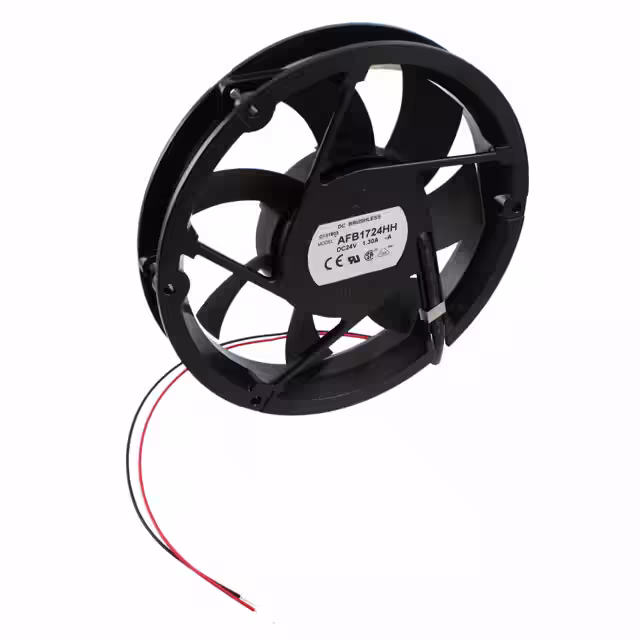

AFB1724HH-AFAN AXIAL 172X25.4MM 24VDC WIRE |
761 |
|
Datasheet |
|
AFB | Bulk | Active | 24VDC | Round - 172mm Dia | 25.40mm | 214.9 CFM (6.02m³/min) | 0.524 in H2O (130.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.5dB(A) | 14.88 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.993 lb (450.42 g) |
|
OD172SAPL-24HTBFAN AXIAL 172X38.5MM 24VDC TERM |
38 |
|
Datasheet |
|
OD172SAPL | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 225.0 CFM (6.30m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Auto Restart | 55.0dB | - | 4000 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 1.7 lbs (760.0 g) |
